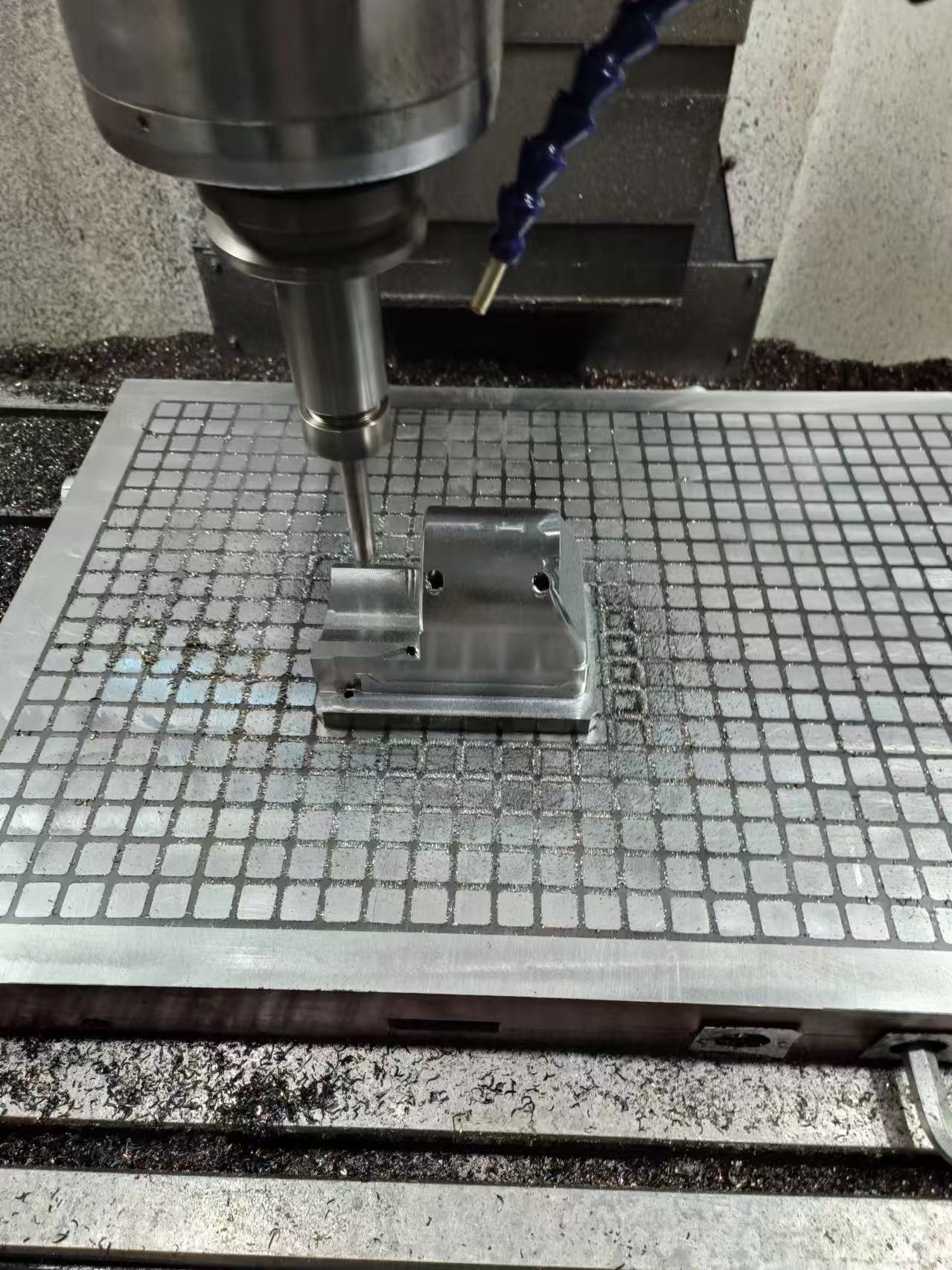

What Is CNC Machining for Mold Components?

CNC machining for mold components refers to the precision manufacturing process of injection mold parts using computer-controlled machines (CNC, EDM, grinding, etc.).

These mold components include:

  • Mold core and cavity
  • Ejector pins and sleeves
  • Guide pins and bushings
  • Slides and inserts
  • Mold base components

👉 These parts determine the accuracy, stability, and lifespan of injection molds.

Without CNC machining, modern high-precision injection molding would not be possible.

🏭 Why CNC Machining Is Critical for Mold Components

https://images.openai.com/static-rsc-4/IFEq80FDZiXqCh4m0apY6i2h77_MTytPyBdVHW0fGVTkKUaAHFn752Ox7vnctgFz1ZPUvHu_eV2uIOQA2jGKmXzrYAZd8EqkNx7WoKmMlknLK8CQDD62xd4rbkHU5j_jSH_YVvIa6Tn_Fl2UPbtEE56MKIykXbkdCa_4fYAyoIKLlEfJwZd-go05cI_9qeY2?purpose=fullsize

6

CNC machining is the backbone of mold component manufacturing because it ensures:

✔ High precision

Tolerances can reach ±0.01mm in critical areas.

✔ Repeatability

Every mold component is identical across production batches.

✔ Strength and durability

Machined from hardened steel for long mold life.

✔ Complex geometry capability

Allows deep cavities, thin ribs, and complex shapes.

👉 This is essential for injection molds used in automotive, electronics, and medical industries.

⚙️ CNC Machining Process for Mold Components

The manufacturing process typically includes:

1. Material selection

Common materials:

  • P20 steel
  • H13 steel
  • S136 stainless steel
  • Tool steel alloys

2. CNC rough machining

Removes bulk material to form basic shape.

3. Precision machining

High-speed CNC ensures dimensional accuracy.

4. EDM (Electrical Discharge Machining)

Used for:

  • Deep cavities
  • Sharp internal corners
  • Complex structures

5. Grinding & polishing

Ensures:

  • Surface finish
  • Flatness
  • Final tolerance control

6. Inspection (CMM)

Final dimensional verification before assembly.

📏 CNC Machining Tolerances for Mold Components

https://images.openai.com/static-rsc-4/rxUQIBU8QJHT6LR0wktfNzS_USSepG1gWEBa4hUkoKBaVJ3ouAJDQW-5MU13osRfBG1z6zS45ifQelrgAdftP69vFCijbxWfvWb7-g2jtbyCaZKBPknXYMQvHFNk0Lj2XaSUsdRDYC1PSN9siqndS3UeCDiizGkswHQCCMQAwypOpcK3yPuJeEerhyu36uEN?purpose=fullsize
https://images.openai.com/static-rsc-4/Jt1P8g2-HgLbkCgAnZu8tP5VcoAIg0QTjwQ0UXUw9HLKVAjLAMDpitQLqCG1U4bk3h5JBjVPB8RQ3eFTvvjfhvfvDr5t5EyJtOOiHCrx5FhPKJF4TgV8wsVzd7uj4zValUwhFDK3uNgkopI3syjbxkC9FWT_oDgbsRVeMIhdo7t_RRdzpiuQGY_PzozyRYJS?purpose=fullsize

Typical tolerances in mold component machining:

  • Standard mold parts: ±0.05 mm
  • Precision mold inserts: ±0.02 mm
  • High-precision components: ±0.01 mm

👉 Tight tolerances are essential to avoid:

  • Flash
  • Misalignment
  • Injection defects

🔧 Common CNC Machined Mold Components

🧩 1. Ejector Pins

Used to push molded parts out of the cavity.

🧩 2. Guide Pins & Bushings

Ensure alignment of mold halves.

🧩 3. Mold Cores & Cavities

Define product shape and surface.

🧩 4. Slides & Lifters

Used for undercut structures.

🧩 5. Mold Base Components

Provide structural support.

👉 You can learn more about mold manufacturing systems here:
🔗 https://www.fentormold.com/Components-Manufacturing/

🧠 Materials Used in CNC Mold Component Machining

Common materials include:

  • Hardened steel (H13, S136)
  • Pre-hardened steel (P20)
  • Stainless steel
  • Copper alloys (for cooling or inserts)

👉 Material selection affects:

  • Tool life
  • Machinability
  • Surface finish
  • Mold performance

⚠️ Common Problems in CNC Mold Machining

❌ Dimensional deviation

Caused by tool wear or poor calibration.

❌ Surface roughness issues

Poor finishing or wrong cutting parameters.

❌ Thermal deformation

High-speed machining heat distortion.

❌ Assembly misalignment

Poor tolerance control between components.

👉 These issues directly affect injection molding quality.

Applications of CNC Mold Components

CNC machined mold components are used in:

  • Automotive plastic parts
  • Medical devices
  • Consumer electronics
  • Industrial equipment
  • Packaging systems

CNC vs EDM in Mold Component Manufacturing

  • CNC machining: fast, high volume, good for shaping
  • EDM: slow, but ideal for deep/complex geometry

👉 In real mold manufacturing, both are used together.
