Choosing between DME and HASCO is not simply a matter of deciding which standard is better. The right choice depends on where the mold will run, which components the customer normally uses, how replacement parts will be sourced, and how the mold will be maintained throughout its production life.
For a custom injection mold, the selected standard can affect mold base dimensions, guide components, ejector components, sprue bushings, cooling connections, drawings, spare parts, and future maintenance.
This guide explains DME vs HASCO, compares their practical differences, and shows how mold buyers can choose the right standard for a new injection molding project.
Key Takeaways
- DME and HASCO are both established systems for standardized injection mold components.
- DME is widely used in North American tooling, while HASCO has a strong presence in European moldmaking.
- DME is available in both inch and metric product ranges, so DME should not automatically be considered an inch-only system.
- HASCO is strongly associated with metric tooling and European mold design.
- DME and HASCO components should not automatically be considered interchangeable.
- The mold standard can affect component selection, mold design, spare parts, maintenance, and repair.
- The best standard is usually the one that matches the customer’s existing tooling system.
- A Chinese mold manufacturer can build molds according to either DME or HASCO requirements when the specification is clearly defined.

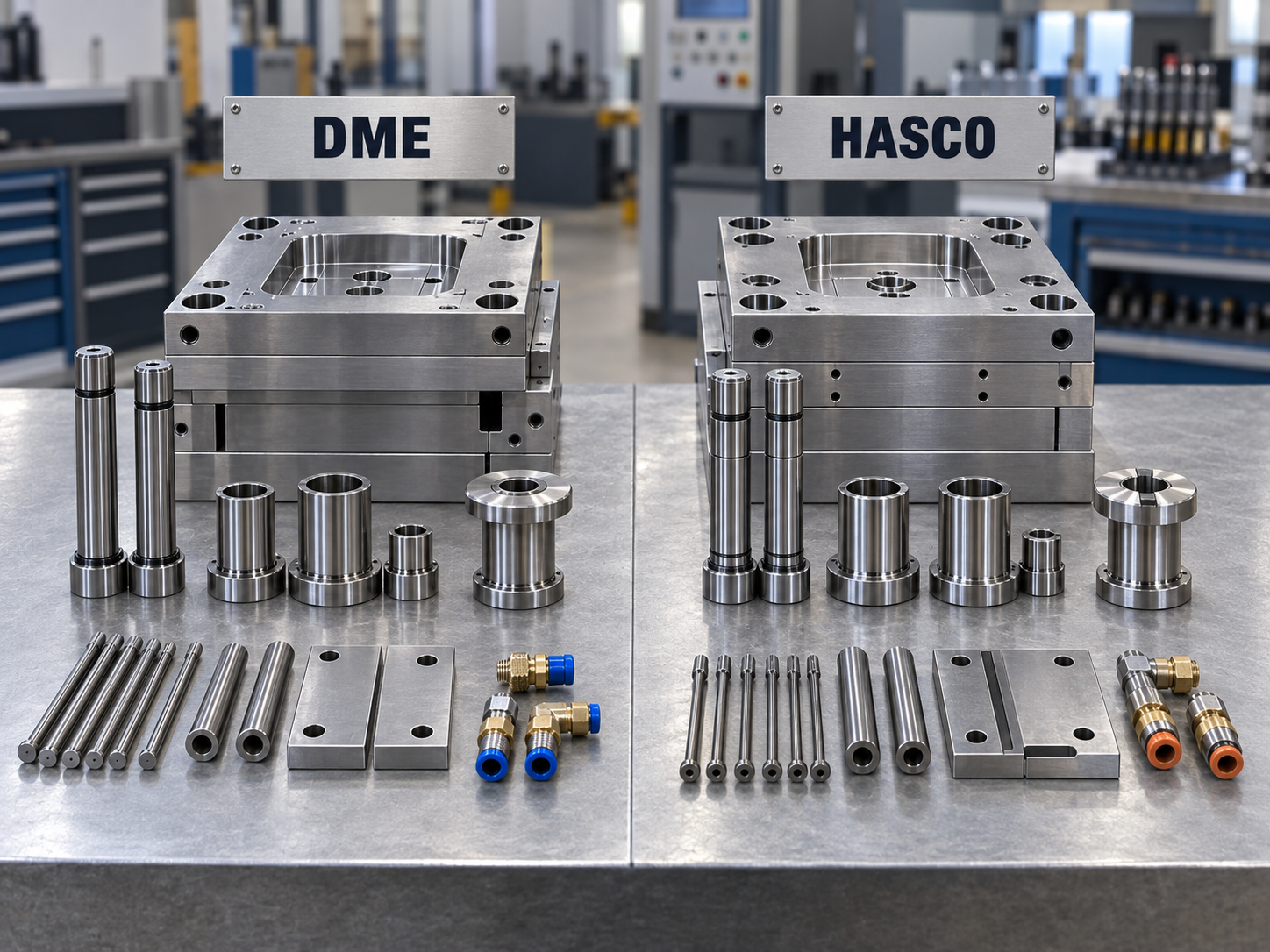

DME vs HASCO Mold Standards at a Glance
| Factor | DME | HASCO |
|---|---|---|
| Strongest regional association | North America | Europe |
| Dimensional options | Inch and metric | Primarily metric |
| Standard mold components | Yes | Yes |
| Mold base systems | Available | Available |
| Guide components | Available | Available |
| Ejector components | Available | Available |
| Sprue bushings | Available | Available |
| Cooling components | Available | Available |
| Spare-part consideration | Important | Important |
| Best selection method | Follow customer specification | Follow customer specification |
This comparison is a general guide. The actual component specification should always be confirmed against the customer’s approved drawings, tooling standards, and required component series.
What Is the DME Mold Standard?
DME is a well-established tooling component and mold system used in injection mold manufacturing.
DME provides standardized components for many parts of an injection mold, including components related to alignment, ejection, mold assembly, cooling, and other tooling functions.
The main advantage of using standardized components is straightforward:
The mold designer does not have to design and manufacture every component from scratch.
Instead, standard components can be selected according to their required dimensions and application.
DME Standard Mold Components
Depending on the tooling design, DME components can include:
- Guide pins
- Guide bushings
- Ejector pins
- Ejector sleeves
- Return pins
- Sprue bushings
- Locating components
- Wear components
- Cooling components
- Mold base components
- Slide components
- Other mold accessories
The exact component selected depends on the mold design and the customer’s specification.
Is DME an Inch-Only Standard?
No.
This is an important point when discussing DME vs HASCO.
DME offers both inch and metric product ranges. Therefore, a mold should not be described simply as “DME = inch.”
When receiving a DME mold project, the mold manufacturer should confirm:
- Inch or metric dimensions
- Required component series
- Mold base specification
- Machine interface
- Ejector system
- Cooling connections
- Customer drawing requirements
This prevents problems later during mold assembly or maintenance.
What Is the HASCO Mold Standard?
HASCO is another major standardized tooling system used in injection mold manufacturing.
HASCO is particularly common in European moldmaking and is strongly associated with metric tooling.
Like DME, HASCO provides standardized components that can be used throughout an injection mold.
The objective is to make tooling design, component selection, procurement, maintenance, and replacement more consistent.
HASCO Standard Mold Components
Typical HASCO-compatible tooling components can include:
- Guide pillars
- Guide bushes
- Ejector pins
- Ejector sleeves
- Return pins
- Sprue bushings
- Locating components
- Cooling components
- Mold base components
- Slide components
- Wear plates
- Other standard mold parts
Using standardized components can be particularly useful for customers who already maintain a large number of molds using the same component system.
DME vs HASCO: Why Does the Mold Standard Matter?
At first glance, the difference between DME and HASCO may appear to be a simple component-brand decision.
In practice, it can affect the entire tooling lifecycle.
Mold Design
The selected standard can influence the dimensions and arrangement of:
- Guide systems
- Ejector systems
- Mold bases
- Sprue bushings
- Locating components
- Cooling fittings
- Standard plates
- Mold accessories
Therefore, the standard should be confirmed before detailed mold design begins.
Component Procurement
Standardized components can reduce the need to manufacture common tooling parts from raw material.
This can simplify purchasing and make replacement easier.
For a precision tooling project, Fentormold also provides components manufacturing for custom and precision mold components.
Mold Maintenance
Maintenance is one of the biggest reasons customers care about mold standards.
Imagine a mold has been running for five years and an ejector pin needs to be replaced.
If the customer already has a standard component system and knows exactly where to purchase the replacement part, maintenance can be much easier.
This is why the standard should be selected based on the entire life of the mold, not just the initial manufacturing stage.
DME vs HASCO Mold Components: What Are the Differences?
The practical differences become clearer when individual components are considered.
Guide Pins and Guide Bushings
Guide pins and guide bushings align the mold halves during opening and closing.
Their important dimensions can include:
- Diameter
- Length
- Shoulder dimensions
- Installation depth
- Tolerance
- Matching component dimensions
A DME guide bushing should not automatically be replaced with a HASCO guide bushing simply because both components perform the same function.
The surrounding dimensions and tolerances must also match.
Ejector Pins
Ejector pins push the molded part away from the core after the injection molding cycle.
Important characteristics include:
- Pin diameter
- Pin length
- Head diameter
- Head thickness
- Material
- Hardness
- Tolerance
When a customer specifies DME or HASCO, the mold designer should select the appropriate standard component rather than assuming that components from different systems are interchangeable.
Ejector Sleeves
Ejector sleeves are commonly used around cylindrical cores or other molded features.
The sleeve must work correctly with:
- Core pin
- Ejector plate
- Ejector retainer plate
- Mold core
- Required ejection stroke
Again, standardization can make future replacement easier.
Sprue Bushings
The sprue bushing connects the injection molding machine nozzle to the mold’s runner system.
The correct sprue bushing depends on several factors:
- Machine nozzle
- Sprue dimensions
- Mold design
- Locating ring
- Mold standard
- Customer machine specification
Therefore, the mold manufacturer should confirm the customer’s machine requirements rather than selecting a sprue bushing only because the project uses DME or HASCO.
DME vs HASCO Mold Bases
The mold base is the structural foundation of an injection mold.
It supports the cavity, core, guide system, ejector system, and other tooling components.
A standard mold base can simplify mold design because many dimensions and component interfaces are already established.
However, DME mold base and HASCO mold base should not be treated as complete specifications by themselves.
The mold drawing should still define important details such as:
- Overall mold dimensions
- Plate thickness
- Cavity plate
- Core plate
- Support plate
- Ejector plates
- Guide system
- Locating ring
- Sprue bushing
- Cooling connections
- Machine interface
For a custom injection mold, the approved customer drawing should always take priority.
DME vs HASCO: Are the Components Interchangeable?
This is one of the most important questions for mold buyers.
The safe answer is:
Do not assume that DME and HASCO components are directly interchangeable.
Two components may perform the same function but have different:
- Dimensions
- Tolerances
- Threads
- Shoulder sizes
- Installation depths
- Mounting configurations
- Matching components
For example, a guide pin from one standard may look similar to another manufacturer’s guide pin but still require different dimensions for proper installation.
Can DME and HASCO Components Be Used in One Mold?
Technically, components from different suppliers can sometimes be used in the same mold if the dimensions and interfaces are properly engineered.
However, this does not mean that mixing standards is always a good idea.
For production molds, a consistent component system can make:
- Drawings easier to understand
- Spare parts easier to identify
- Maintenance easier
- Repairs more predictable
- Future modifications simpler
Therefore, unless there is a specific engineering reason to mix standards, it is usually better to maintain consistency.
DME vs HASCO: Does the Standard Affect Mold Cost?
Yes, but the standard itself is usually not the biggest factor affecting the total mold price.
A mold quotation can be influenced by:
- Mold size
- Number of cavities
- Mold steel
- Mold base
- Standard components
- Custom components
- CNC machining
- EDM
- Polishing
- Hot runner system
- Cooling system
- Ejection system
- Slides and lifters
- Required tolerances
- Surface finish
Therefore, it would be misleading to say:
DME molds are always more expensive than HASCO molds.
Or:
HASCO molds are always cheaper than DME molds.
Neither statement is generally reliable.
Standard Components Can Reduce Custom Machining
Standard components can reduce the amount of custom machining required for common tooling functions.
This may help reduce:
- Manufacturing time
- Component design work
- Procurement complexity
- Replacement difficulty
However, the actual tooling cost still depends on the complete mold design.
This is why a professional injection mold quotation should be based on the complete tooling requirements rather than the standard name alone.
How DME vs HASCO Affects Mold Design
The mold standard should be confirmed at the beginning of the project.
Changing the standard after the mold design has already been completed can create unnecessary work.
Before Mold Design
The mold manufacturer should confirm:
- Which standard is required?
- Is the tooling metric or inch?
- Which standard component supplier is preferred?
- Which injection molding machine will run the mold?
- What machine interface is required?
- Which components must be locally replaceable?
- Does the customer have an approved mold specification?
During DFM
The selected standard should be considered together with:
- Part geometry
- Parting line
- Ejection
- Cooling
- Slides
- Lifters
- Mold size
- Cavity count
- Machine compatibility
This is why DFM should be completed before the mold design is finalized.
DME vs HASCO for US Customers
For a customer in the United States, DME can be a natural choice when the customer’s existing molds and maintenance system already use DME components.
For example, a customer may already have:
- DME spare parts
- DME component catalogs
- DME-compatible drawings
- Maintenance procedures based on DME components
In that situation, continuing with the same system can simplify future maintenance.
However, the customer should still specify whether the project requires inch or metric components.
The customer’s actual tooling specification is more important than simply knowing that the mold will run in the United States.
DME vs HASCO for European Customers
For European customers, HASCO can be a natural choice when the customer’s existing tooling system is based on HASCO components.
This can be particularly useful when:
- The mold will run in Europe
- The customer’s maintenance team uses HASCO components
- Existing molds follow HASCO conventions
- Replacement parts are sourced through the same supply chain
- The customer has a standard tooling specification
Again, geography should be treated as a guideline rather than an absolute rule.
A European customer can request DME.
A US customer can request HASCO.
The customer’s specification should always be the final reference.
Can a Chinese Mold Manufacturer Build Both DME and HASCO Molds?
Yes.
A Chinese injection mold manufacturer can build tooling according to DME, HASCO, or another customer-specified tooling system.
The important requirement is to confirm the standard before purchasing components and starting detailed mold design.
For an export mold, the manufacturer should confirm:
- Mold base standard
- Component standard
- Dimensional system
- Machine interface
- Ejector system
- Guide system
- Sprue bushing
- Cooling connections
- Customer drawings
- Spare-part requirements
This is particularly important because the mold may be manufactured in China but operated and maintained thousands of kilometers away.
A clear specification reduces the risk of problems after delivery.
For customers who need both mold manufacturing and production, Fentormold also provides injection molding production after tooling is completed.
DME vs HASCO: Which Standard Should You Choose?
There is no universal winner in the DME vs HASCO comparison.
The best choice depends on the customer’s tooling environment.
Choose DME When:
- The customer specifically requests DME
- Existing customer molds use DME components
- The maintenance team is familiar with DME
- Replacement parts are normally sourced through the DME system
- The customer has a DME-based mold specification
Choose HASCO When:
- The customer specifically requests HASCO
- Existing customer molds use HASCO components
- The maintenance team is familiar with HASCO
- Replacement parts are normally sourced through the HASCO system
- The customer has a HASCO-based mold specification
When the Customer Has No Preference
If the customer does not specify a standard, ask one simple question:
What mold component standard do you normally use for maintenance and replacement parts?
This can be more useful than choosing a standard simply according to the customer’s country.
What Should Be Included in the Mold Specification?
For international tooling projects, the mold specification should be clear.
Instead of writing only: text
Mold standard: DM
it is better to specify the relevant details:
Mold standard: DME
Dimensional system: Metric
Mold base: DME-compatible
Guide components: DME standard
Ejector components: DME standard
Sprue bushing: According to machine specification
Cooling connections: According to customer specification
Machine interface: According to approved machine drawing
For a HASCO project:
Mold standard: HASCO
Dimensional system: Metric
Mold base: HASCO-compatible
Guide components: HASCO standard
Ejector components: HASCO standard
Sprue bushing: According to machine specification
Cooling connections: According to customer specification
Machine interface: According to approved machine drawing
