Introduction
A plastic injection mold is the foundation of modern plastic manufacturing. Almost every plastic product used in daily life, from automotive components and electronic housings to medical devices and household products, requires a precisely manufactured mold before mass production.
The quality of a plastic injection mold directly affects product accuracy, appearance, production efficiency, and manufacturing cost. A well-designed mold can produce millions of consistent plastic parts, while a poorly manufactured mold may lead to problems such as flash, deformation, short shots, and unstable production.
Making a plastic injection mold is a complex engineering process that combines product analysis, mold design, material selection, precision machining, surface finishing, assembly, and mold testing.
A professional mold manufacturer must carefully control every stage to ensure the final tooling meets customer requirements for quality, durability, and production performance.
This article explains the complete process of how a plastic injection mold is made, from the initial product design review to final mold delivery.
What Is a Plastic Injection Mold?

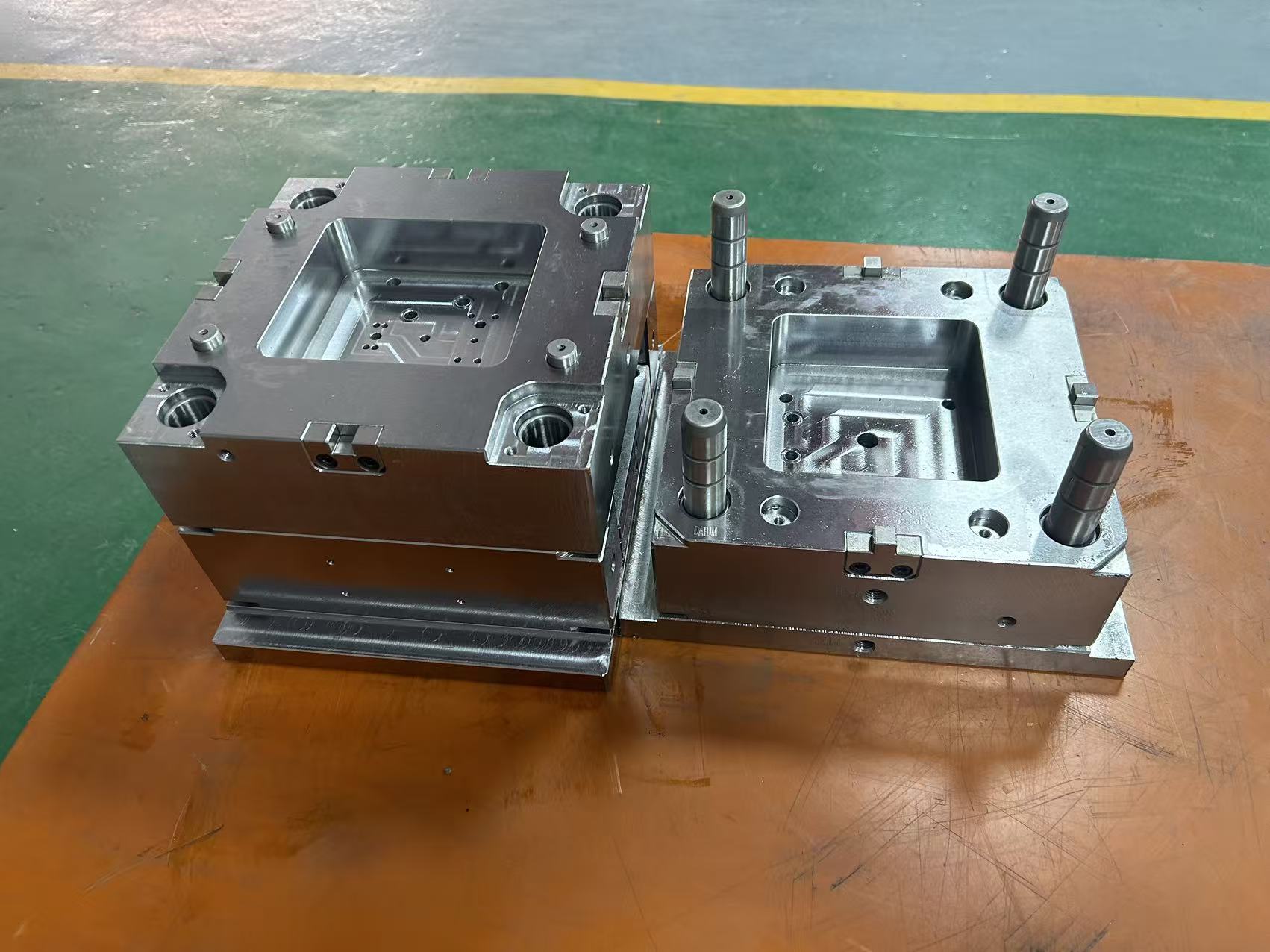

A plastic injection mold is a precision tooling system used to shape molten plastic materials into finished products.
During the injection molding process, plastic pellets are heated until they become molten. The melted plastic is then injected into the mold cavity under high pressure. After cooling and solidification, the mold opens and the finished plastic part is ejected.
Unlike simple forming tools, an injection mold contains many precision components that work together, including:
- Mold base
- Core and cavity
- Cooling system
- Runner system
- Ejection system
- Guide components
- Inserts and sliders
Each component must be manufactured with high accuracy because even small dimensional errors can affect the final product quality.
For companies developing new plastic products, choosing an experienced tooling supplier is important. Professional mold manufacturers can provide complete solutions from design optimization to final production support.
More information about our injection mold manufacturing services: https://www.fentormold.com/injection-mold/
Step 1: Analyze the Plastic Part Design
Before manufacturing a plastic injection mold, engineers first analyze the product design carefully.
This step is essential because mold performance depends heavily on product structure. Any design problem discovered after mold manufacturing begins can result in expensive modifications and delays.
Review 3D Model and 2D Drawing
The mold engineer reviews all product data, including:
- 3D CAD model
- 2D engineering drawing
- Material requirements
- Surface finish requirements
- Dimensional tolerances
- Assembly requirements
Engineers check whether the product design is suitable for injection molding.
Important factors include:
Wall Thickness
Uneven wall thickness may cause:
- Sink marks
- Warpage
- Internal stress
A uniform wall thickness helps improve product quality and reduces molding problems.
Draft Angle
Plastic parts require proper draft angles to release smoothly from the mold.
Without sufficient draft, problems may occur:
- Difficult demolding
- Surface scratches
- Increased cycle time
Undercut Features
Undercuts require additional mold mechanisms, such as:
- Sliders
- Lifters
- Collapsible cores
The engineer must evaluate whether these features can be manufactured efficiently.
Perform DFM Analysis
DFM (Design for Manufacturing) analysis is an important step before mold design.
The purpose of DFM is to identify potential manufacturing risks early and optimize the product design.
During DFM analysis, engineers check:
- Parting line position
- Gate location
- Ejection method
- Cooling requirements
- Mold structure
A proper DFM review can reduce mold modification costs and improve production stability.
Step 2: Design the Plastic Injection Mold
After confirming the product design, engineers begin designing the mold structure.
A well-designed plastic injection mold must balance product requirements, mold life, manufacturing cost, and production efficiency.
Mold Structure Design
Mold designers use professional CAD software to create the complete mold structure.
The design process includes:
- Cavity layout
- Parting line design
- Runner system design
- Cooling channel layout
- Ejection system design
For multi-cavity molds, engineers must ensure balanced filling so every cavity produces consistent parts.
A good mold structure can improve:
- Production efficiency
- Mold reliability
- Maintenance convenience
Mold Flow Analysis
Before machining begins, many projects require mold flow simulation.
Mold flow analysis helps engineers predict:
- Plastic filling behavior
- Injection pressure
- Weld line position
- Air trap locations
- Cooling performance
- Warpage risk
By analyzing these factors before production, engineers can optimize the mold design and reduce trial-and-error during mold testing.
Step 3: Select Mold Materials
Material selection plays an important role in the performance and service life of a plastic injection mold.
Different production requirements require different mold materials.
Choosing Mold Steel
Common mold steels include:
P20 Steel
Suitable for:
- Medium production volumes
- General plastic parts
- Prototype molds
718H Steel
Provides:
- Better polishing performance
- Good toughness
- Stable machining performance
S136 Stainless Steel
Suitable for:
- High-quality appearance parts
- Corrosive plastic materials
- Long-life molds
H13 Steel
Commonly used for:
- High-temperature applications
- High wear resistance requirements
The final steel selection depends on:
- Expected mold life
- Plastic material
- Product appearance
- Production quantity
Selecting Mold Components and Inserts
Besides mold steel, precision components are also critical.
Components such as:
- Ejector pins
- Guide bushes
- Inserts
- Sliders
- Lifters
must meet strict dimensional requirements.
High-quality mold components improve:
- Mold assembly accuracy
- Production stability
- Service life
More information about precision mold components manufacturing: https://www.fentormold.com/components-manufacturing/
How Is a Plastic Injection Mold Made? Step-by-Step Guide
Introduction
A plastic injection mold is the foundation of modern plastic manufacturing. Almost every plastic product used in daily life, from automotive components and electronic housings to medical devices and household products, requires a precisely manufactured mold before mass production.
The quality of a plastic injection mold directly affects product accuracy, appearance, production efficiency, and manufacturing cost. A well-designed mold can produce millions of consistent plastic parts, while a poorly manufactured mold may lead to problems such as flash, deformation, short shots, and unstable production.
Making a plastic injection mold is a complex engineering process that combines product analysis, mold design, material selection, precision machining, surface finishing, assembly, and mold testing.
A professional mold manufacturer must carefully control every stage to ensure the final tooling meets customer requirements for quality, durability, and production performance.
This article explains the complete process of how a plastic injection mold is made, from the initial product design review to final mold delivery.
What Is a Plastic Injection Mold?
A plastic injection mold is a precision tooling system used to shape molten plastic materials into finished products.
During the injection molding process, plastic pellets are heated until they become molten. The melted plastic is then injected into the mold cavity under high pressure. After cooling and solidification, the mold opens and the finished plastic part is ejected.
Unlike simple forming tools, an injection mold contains many precision components that work together, including:
- Mold base
- Core and cavity
- Cooling system
- Runner system
- Ejection system
- Guide components
- Inserts and sliders
Each component must be manufactured with high accuracy because even small dimensional errors can affect the final product quality.
For companies developing new plastic products, choosing an experienced tooling supplier is important. Professional mold manufacturers can provide complete solutions from design optimization to final production support.
More information about our injection mold manufacturing services: https://www.fentormold.com/injection-mold/
Step 1: Analyze the Plastic Part Design
Before manufacturing a plastic injection mold, engineers first analyze the product design carefully.
This step is essential because mold performance depends heavily on product structure. Any design problem discovered after mold manufacturing begins can result in expensive modifications and delays.
Review 3D Model and 2D Drawing
The mold engineer reviews all product data, including:
- 3D CAD model
- 2D engineering drawing
- Material requirements
- Surface finish requirements
- Dimensional tolerances
- Assembly requirements
Engineers check whether the product design is suitable for injection molding.
Important factors include:
Wall Thickness
Uneven wall thickness may cause:
- Sink marks
- Warpage
- Internal stress
A uniform wall thickness helps improve product quality and reduces molding problems.
Draft Angle
Plastic parts require proper draft angles to release smoothly from the mold.
Without sufficient draft, problems may occur:
- Difficult demolding
- Surface scratches
- Increased cycle time
Undercut Features
Undercuts require additional mold mechanisms, such as:
- Sliders
- Lifters
- Collapsible cores
The engineer must evaluate whether these features can be manufactured efficiently.
Perform DFM Analysis
DFM (Design for Manufacturing) analysis is an important step before mold design.
The purpose of DFM is to identify potential manufacturing risks early and optimize the product design.
During DFM analysis, engineers check:
- Parting line position
- Gate location
- Ejection method
- Cooling requirements
- Mold structure
A proper DFM review can reduce mold modification costs and improve production stability.
Step 2: Design the Plastic Injection Mold
After confirming the product design, engineers begin designing the mold structure.
A well-designed plastic injection mold must balance product requirements, mold life, manufacturing cost, and production efficiency.
Mold Structure Design
Mold designers use professional CAD software to create the complete mold structure.
The design process includes:
- Cavity layout
- Parting line design
- Runner system design
- Cooling channel layout
- Ejection system design
For multi-cavity molds, engineers must ensure balanced filling so every cavity produces consistent parts.
A good mold structure can improve:
- Production efficiency
- Mold reliability
- Maintenance convenience
Mold Flow Analysis
Before machining begins, many projects require mold flow simulation.
Mold flow analysis helps engineers predict:
- Plastic filling behavior
- Injection pressure
- Weld line position
- Air trap locations
- Cooling performance
- Warpage risk
By analyzing these factors before production, engineers can optimize the mold design and reduce trial-and-error during mold testing.
Step 3: Select Mold Materials
Material selection plays an important role in the performance and service life of a plastic injection mold.
Different production requirements require different mold materials.
Choosing Mold Steel
Common mold steels include:
P20 Steel
Suitable for:
- Medium production volumes
- General plastic parts
- Prototype molds
718H Steel
Provides:
- Better polishing performance
- Good toughness
- Stable machining performance
S136 Stainless Steel
Suitable for:
- High-quality appearance parts
- Corrosive plastic materials
- Long-life molds
H13 Steel
Commonly used for:
- High-temperature applications
- High wear resistance requirements
The final steel selection depends on:
- Expected mold life
- Plastic material
- Product appearance
- Production quantity
Selecting Mold Components and Inserts
Besides mold steel, precision components are also critical.
Components such as:
- Ejector pins
- Guide bushes
- Inserts
- Sliders
- Lifters
must meet strict dimensional requirements.
High-quality mold components improve:
- Mold assembly accuracy
- Production stability
- Service life
More information about precision mold components manufacturing: https://www.fentormold.com/components-manufacturing/
How Much Does a Plastic Injection Mold Cost?
The cost of a plastic injection mold can vary significantly depending on the product design, mold complexity, material selection, and production requirements.
Unlike simple manufacturing tools, injection molds are precision-engineered systems that require advanced design, machining, and testing processes. Therefore, the final mold cost is determined by many different factors.
A typical plastic injection mold may cost from several thousand dollars to hundreds of thousands of dollars, depending on the complexity and expected production volume.
Understanding the main cost factors can help companies make better decisions when developing new plastic products.
Factors Affecting Plastic Injection Mold Cost
Product Complexity
The complexity of the plastic part is one of the biggest factors affecting mold cost.
Simple products with basic structures require fewer mold components and shorter machining time.
However, complex products may require additional mechanisms, such as:
- Sliders
- Lifters
- Rotating mechanisms
- Inserts
- Hot runner systems
These additional features increase both design difficulty and manufacturing cost.
Number of Cavities
The cavity number directly affects the structure and price of a plastic injection mold.
Common options include:
Single-Cavity Mold
A single-cavity mold produces one part per cycle.
Advantages:
- Lower initial investment
- Simpler structure
- Easier maintenance
It is suitable for:
- Prototype production
- Low-volume manufacturing
- Large plastic parts
Multi-Cavity Mold
A multi-cavity mold produces multiple parts in each cycle.
Advantages:
- Higher production efficiency
- Lower cost per part
- Suitable for mass production
However, multi-cavity molds require:
- More complex mold balancing
- Higher machining accuracy
- More advanced testing
Mold Material Selection
The choice of mold steel also affects the final cost.
Lower-cost steel may be suitable for prototypes or small production runs, while premium materials are needed for high-volume production.
Factors affecting material selection include:
- Required mold life
- Plastic material characteristics
- Surface finish requirements
- Production environment
For example, a mold producing millions of automotive parts usually requires higher-grade steel compared with a prototype mold.
Surface Finish Requirements
The required surface finish of the plastic part also influences mold cost.
Different finishes require different processes:
- Polishing
- Texture processing
- EDM finishing
- Mirror finishing
Products with high appearance requirements, such as automotive interior parts or consumer electronics housings, usually require more advanced finishing processes.
Mold Design Requirements
Advanced mold designs require more engineering time.
Examples include:
- Thin-wall molding
- Overmolding
- Two-shot molding
- Unscrewing mechanisms
- Complex sliders
A professional design process helps avoid production issues and reduces future modification costs.
Why Choose a Professional Plastic Mold Manufacturer?
Choosing the right mold manufacturer is one of the most important decisions when developing a new plastic product.
A reliable supplier does not only manufacture the mold but also provides engineering support throughout the entire development process.
Engineering Experience
Experienced mold engineers can identify potential problems before manufacturing begins.
They can optimize:
- Product structure
- Mold layout
- Cooling system
- Ejection method
- Manufacturing process
This reduces the risk of expensive mold modifications.
Advanced Manufacturing Capability
A professional plastic injection mold manufacturer should have complete manufacturing capabilities, including:
- CNC machining
- EDM machining
- Wire cutting
- Grinding
- Mold assembly
- Injection testing
These capabilities ensure better control over quality and delivery time.
Strict Quality Control
Quality control is essential throughout the mold manufacturing process.
A reliable manufacturer should inspect:
- Mold components
- Product dimensions
- Mold movement
- Injection samples
Using precision measurement equipment helps ensure that the final mold meets customer specifications.
Global Project Experience
For international customers, communication and project management are also important.
An experienced export mold supplier should understand:
- International mold standards
- Customer technical requirements
- Shipping procedures
- Documentation requirements
This helps ensure smoother cooperation from design approval to final delivery.
Common Problems During Plastic Injection Mold Manufacturing
Although modern mold manufacturing technology is highly advanced, some challenges may occur during development.
Understanding these issues helps engineers create better solutions.
Flash Problems
Flash occurs when excess plastic leaks into the parting line area.
Possible causes include:
- Incorrect mold alignment
- Excessive injection pressure
- Poor mold fitting
Solutions may include improving mold precision or adjusting molding parameters.
Warpage Issues
Warpage happens when plastic parts deform after cooling.
Common causes include:
- Uneven cooling
- Improper wall thickness
- Incorrect processing conditions
Engineers can reduce warpage through better cooling design and product optimization.
Short Shot Problems
Short shots occur when molten plastic does not completely fill the cavity.
Possible reasons include:
- Insufficient injection pressure
- Poor venting
- Incorrect gate design
Mold flow analysis and proper mold adjustment can help prevent these issues.
How to Improve Plastic Injection Mold Quality?
Producing a high-quality plastic injection mold requires attention to every stage of the project.
Key improvement methods include:
Optimize Product Design
A good product design makes mold manufacturing easier.
Engineers should consider:
- Uniform wall thickness
- Proper draft angles
- Reasonable tolerances
- Suitable material selection
Use Professional Mold Simulation
Simulation software helps predict possible problems before machining.
Mold flow analysis can improve:
- Gate location
- Filling balance
- Cooling performance
- Warpage control
Maintain Precision Manufacturing Standards
High-quality machining and assembly are essential for mold durability.
Important factors include:
- Accurate CNC machining
- Proper component fitting
- Careful polishing
- Complete testing
Conclusion
Making a plastic injection mold is a complex process that combines engineering design, precision machining, assembly, and testing.
From the initial product analysis and mold design to CNC machining, EDM processing, mold assembly, and final trial production, every step plays an important role in determining the final mold quality.
A well-manufactured plastic injection mold provides stable production, consistent product quality, and long-term reliability for customers.
For companies developing new plastic products, working with an experienced mold manufacturer can reduce development risks and improve production efficiency.
Fentormold provides complete injection molding solutions, including mold design, precision tooling, prototype validation, and production support for customers worldwide.
Learn more about our injection mold manufacturing services: https://www.fentormold.com/
