1. What is Injection Mold Flash?

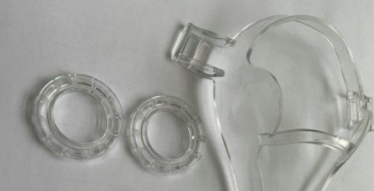

Injection mold flash is a common defect in plastic injection molding. It appears when excess plastic escapes from the mold cavity and forms thin unwanted edges on the final part.
First of all, flash usually appears along the parting line of the mold. In addition, it may also appear around ejector pins, sliders, or insert gaps.
As a result, injection mold flash can affect both the appearance and function of plastic parts.
In many industries such as automotive, electronics, and medical devices, even a small amount of flash is unacceptable.
2. Why Injection Mold Flash Happens
Injection mold flash does not happen randomly. It is usually caused by a combination of pressure, machine settings, and mold condition.
2.1 Low clamping force
First of all, low clamping force is one of the most common causes.
If the mold is not fully locked, molten plastic will push the mold slightly open. As a result, flash will appear at weak sealing areas.
2.2 Excessive injection pressure
In addition, high injection pressure can also lead to flash.
When pressure is too high, even a well-closed mold may deform slightly. Therefore, plastic can escape through tiny gaps.
2.3 Mold wear and damage
Over time, mold surfaces will naturally wear out.
This is especially common in high-volume production. As wear increases, parting lines lose tightness. As a result, flash becomes more frequent.
2.4 Poor mold design
Moreover, poor mold design increases flash risk significantly.
Weak structural support, improper venting, or unbalanced flow paths can all create pressure imbalance inside the cavity.
👉 This is why early DFM with a professional injection mold supplier is important:
https://www.fentormold.com
3. How to Detect Injection Mold Flash Early
Early detection is very important because it reduces scrap and saves production cost.
First of all, operators should inspect the parting line after each production cycle.
If thin plastic edges are visible, this is a clear sign of flash.
In addition, monitoring cycle-to-cycle consistency is important. If flash appears randomly, it may be process-related.
However, if flash gradually increases over time, it usually indicates mold wear.
4. How to Fix Injection Mold Flash
There are several practical ways to fix injection mold flash in production.
4.1 Increase clamping force
First of all, make sure the clamping force is sufficient for the mold size and cavity pressure.
If the force is too low, flash will continue to occur even after adjustments.
4.2 Reduce injection pressure
In addition, reduce injection pressure step by step.
Sudden high pressure is one of the main reasons for mold opening during filling.
4.3 Repair mold parting line
Moreover, worn parting lines should be repaired immediately.
This can be done through polishing or laser welding depending on severity.
4.4 Improve venting system
Finally, improving venting helps reduce internal cavity pressure.
Better venting allows air to escape, which reduces pressure buildup and prevents flash.
5. How to Prevent Injection Mold Flash
Prevention is always more cost-effective than fixing defects later.
5.1 Proper DFM analysis
First of all, Design for Manufacturing (DFM) helps detect flash risks before mold production.
It allows engineers to optimize structure, gate location, and flow balance early.
5.2 Stable process control
In addition, process stability is very important.
Temperature, pressure, and cooling time must remain consistent during production.
Small fluctuations can easily trigger flash.
5.3 Regular mold maintenance
Moreover, mold maintenance plays a key role.
Cleaning, polishing, and inspection should be performed regularly to prevent wear-related flash.
5.4 Work with experienced supplier
A professional partner can reduce flash risk significantly.
👉 Engineering support and rapid tooling solutions:
https://www.fentormold.com
6. Best Mold Design Practices to Avoid Flash
Good mold design is the foundation of stable production.
First, mold structure must be strong enough to resist high injection pressure.
Second, parting lines must be precisely matched to ensure tight sealing.
In addition, proper venting channels should be included to release trapped air.
Finally, material selection also affects long-term stability.
7. Why Injection Mold Flash is a Serious Problem
Injection mold flash is not just a cosmetic issue.
First of all, it increases manual trimming costs.
In addition, it can cause assembly failure in precision products.
As a result, flash directly affects production efficiency and product quality.
In high-volume manufacturing, even a small flash rate can lead to significant financial loss.
8. FAQ
What causes injection mold flash?
Injection mold flash is caused by pressure imbalance, mold wear, or insufficient clamping force.
How do you fix mold flash?
You can fix it by adjusting machine settings, repairing mold surfaces, and improving venting design.
Can injection mold flash be eliminated completely?
It can be minimized significantly through proper design, process control, and maintenance
