Injection mold gate marks are one of the most common surface defects in plastic injection molding. They usually appear near the gate area as small lines, spots, or surface depressions.

Although gate marks are often unavoidable in production, they can be significantly reduced or even eliminated through proper mold design and process optimization.

In this article, we will explain the main causes of gate marks, how to fix them, and how to prevent them in future production.

H2: What Are Injection Mold Gate Marks?

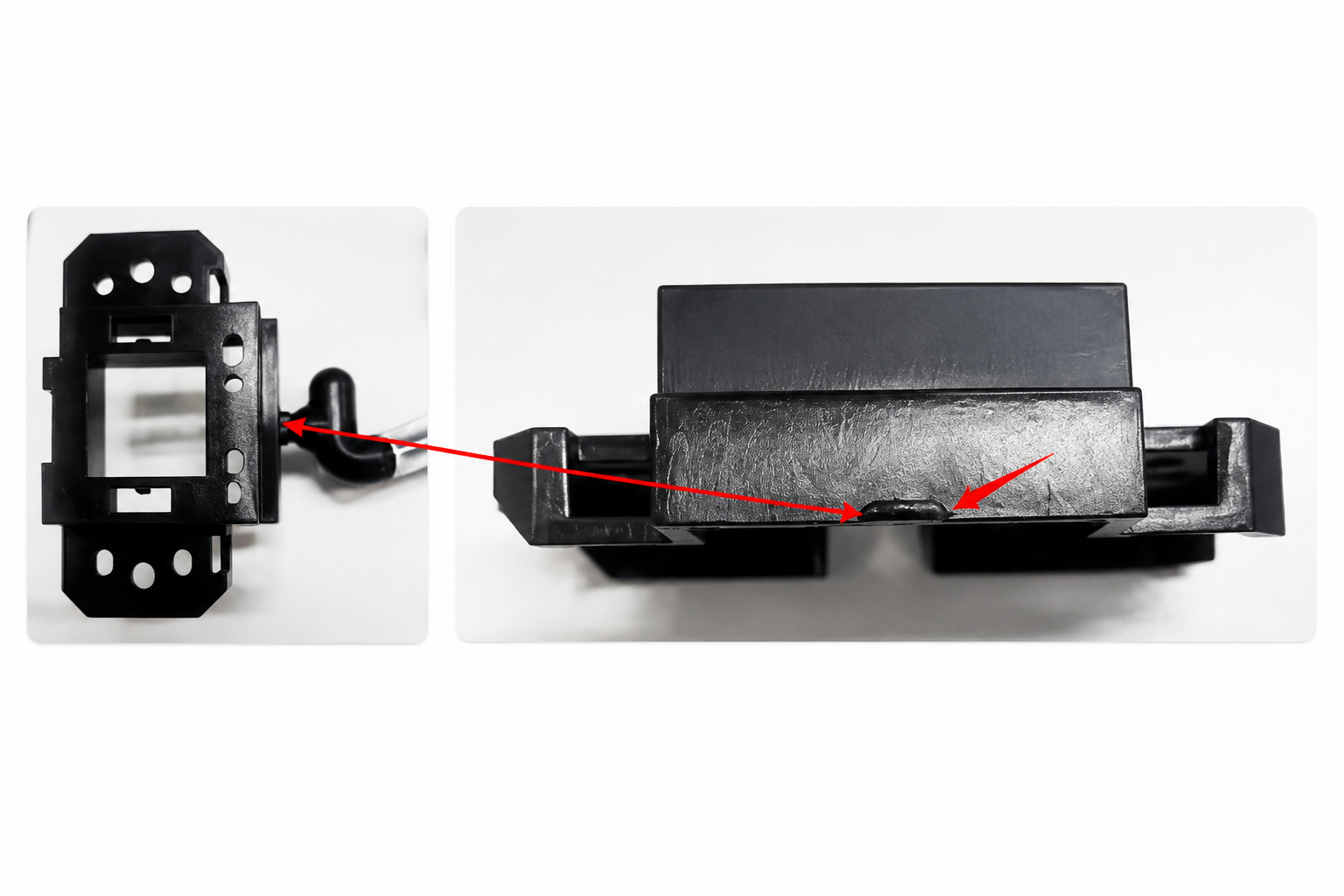

Injection mold gate marks (also called gate vestige) are visible surface defects that occur at the point where molten plastic enters the cavity through the gate.

Typically, they appear as:

  • Small scars or lines
  • Slight surface depressions
  • Gloss or texture inconsistency

These marks are more obvious on cosmetic parts, especially in automotive and consumer products.

H2: Causes of Injection Mold Gate Marks

Gate marks are usually caused by a combination of mold design and processing conditions.

H3: 1. Improper Gate Design

If the gate size is too small or the gate type is not suitable, it can create high shear stress and visible marks.

H3: 2. High Injection Pressure

However, excessive injection pressure may force material to flow too aggressively through the gate, leaving surface defects.

H3: 3. Poor Gate Location

In addition, placing the gate on visible cosmetic surfaces increases the risk of defects being noticeable.

H3: 4. Material Shrinkage Behavior

Different plastics shrink differently. For example, crystalline materials tend to show more obvious gate marks.

H2: How to Fix Injection Mold Gate Marks

There are several effective ways to reduce or fix gate mark problems in production.

H3: 1. Optimize Gate Design

Increase gate size or change gate type (e.g., from pin gate to edge gate) to reduce shear stress.

H3: 2. Adjust Injection Parameters

For example:

  • Reduce injection pressure
  • Adjust holding pressure
  • Optimize injection speed profile

H3: 3. Improve Mold Polishing

A smoother gate area can significantly reduce visible marks on the surface.

H3: 4. Modify Gate Position

If possible, relocate the gate to a non-cosmetic area to hide the mark.

H3: 5. Use Hot Runner System

Hot runner systems can help reduce gate vestige and improve surface quality.

H2: How to Prevent Gate Marks in Future Production

Prevention is always more cost-effective than correction.

Therefore, consider the following design strategies:

  • Optimize gate location during mold design stage
  • Use proper gate type based on material flow
  • Conduct mold flow analysis before tooling
  • Select suitable plastic material for surface requirements

H2: Mold Design Tips to Reduce Gate Marks

Good mold design is the key to avoiding gate marks.

For example:

  • Use balanced flow design
  • Avoid direct flow impact on visible surfaces
  • Ensure proper venting
  • Use appropriate gate thickness

These improvements can significantly enhance part appearance quality.

H2: Internal Links (Recommended)

To improve SEO structure, you can add internal links like:

H2: Conclusion

Injection mold gate marks are a common but manageable defect in plastic injection molding.

However, by optimizing gate design, adjusting process parameters, and improving mold engineering, manufacturers can significantly reduce or eliminate these defects.

If you need professional mold design or injection molding solutions, proper engineering support is always the key to achieving high-quality parts.
