Injection molding short shot is one of the most common defects in plastic parts manufacturing. It happens when the molten plastic does not completely fill the mold cavity, resulting in incomplete or missing sections of the final part.

This defect can cause serious problems in product function, assembly, and appearance. Therefore, understanding its causes and solutions is very important for stable production.

👉 Learn more about our manufacturing capability at Fentormold Injection Molding Services.

---

🟡 H2: What Is Injection Molding Short Shot?

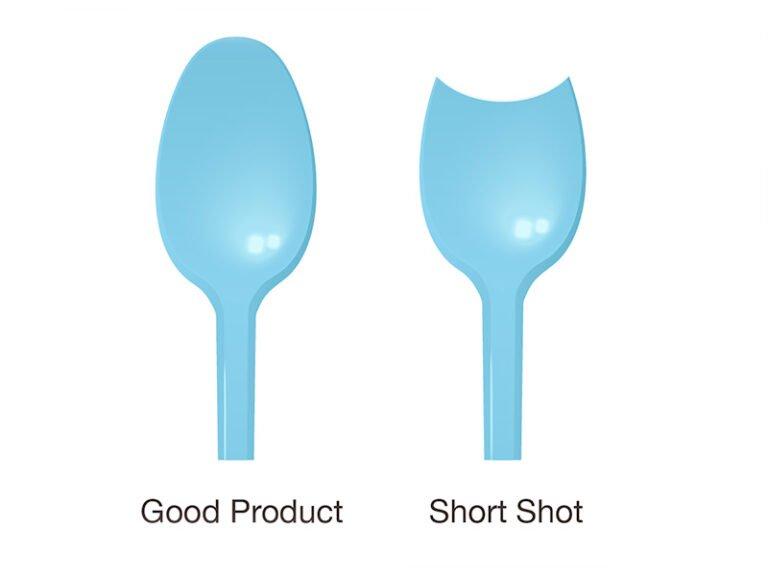

A short shot occurs when the plastic melt stops flowing before filling the entire cavity. As a result, the final part is incomplete.

Short shots usually appear in:

Thin wall sections
Long flow paths
Complex geometries

Therefore, it is closely related to flow ability and process control.

🟡 H2: Main Causes of Injection Molding Short Shot Defects

Short shots do not happen randomly. They are usually caused by a combination of material, mold, and process issues.

🟡 H3: 1. Insufficient Injection Pressure

If injection pressure is too low, the molten plastic cannot fully fill the cavity.

As a result, flow stops prematurely.

🟡 H3: 2. Low Melt Temperature

Low temperature increases viscosity. Therefore, plastic flow becomes difficult.

👉 This is a common cause in production startups.

🟡 H3: 3. Poor Mold Venting

If air cannot escape from the cavity, it creates resistance.

In addition, trapped air blocks material flow, leading to short shots.

🟡 H3: 4. Improper Gate Design

Gate size and location directly affect material flow.

If the gate is too small, flow resistance increases significantly.

👉 At Fentormold Mold Design Services, we optimize gate and runner systems for stable filling.

🟡 H3: 5. Material Flowability Issues

Some materials have poor flow properties, especially glass-filled or high-viscosity resins.

Therefore, material selection is critical.

👉 We support material evaluation at Fentormold Material Selection Support.

🟡 H2: How to Fix Injection Molding Short Shot Defects

Fixing short shots requires both process optimization and mold improvement.

🟡 H3: 1. Increase Injection Pressure and Speed

Higher pressure improves cavity filling ability.

However, it must be balanced to avoid flash defects.

🟡 H3: 2. Optimize Melt Temperature

Increasing barrel temperature improves flowability.

Therefore, plastic can fill complex areas more easily.

🟡 H3: 3. Improve Mold Venting System

Proper venting allows trapped air to escape.

As a result, flow resistance is reduced significantly.

🟡 H3: 4. Redesign Gate and Runner System

Gate optimization can dramatically improve filling performance.

👉 Engineering optimization support is available at Fentormold Project Development.

🟡 H3: 5. Select Better Flow Material

Choosing a material with better melt flow index (MFI) helps reduce short shot risk.

🟡 H2: Short Shot vs Other Injection Molding Defects

Short shot is often confused with other defects.

5

Common defects include:

Short shot (incomplete filling)
Flash (overflow material)
Sink marks (surface collapse)
Warpage (deformation)

👉 You can read more technical articles at https://www.wikiwand.com/en/Injection_moulding

🟡 H2: How to Prevent Short Shot in Mass Production

To ensure stable production, manufacturers should focus on:

Proper mold design
Stable process parameters
Good material selection
Regular mold maintenance

In addition, process monitoring is very important in mass production environments.

🟡 H2: Engineering Support and Quality Control

In modern manufacturing, defects should be prevented before production, not fixed after failure.

👉 At Fentormold Project Development, we provide:

DFM analysis
Mold flow optimization
Process parameter setup

👉 Contact us at Fentormold Contact Page for engineering support.

🟡 H2: Conclusion

Injection molding short shot defects are mainly caused by:

Insufficient pressure
Low temperature
Poor venting
Mold design issues
Material limitations

However, with proper mold design and process control, these defects can be effectively eliminated.

Finally, stable injection molding production requires a combination of engineering experience, process optimization, and material understanding.
