How to Prevent Injection Molding Warpage After Cooling

Warping is one of the most frustrating quality issues in injection molding. A plastic part may look perfect when it leaves the mold, but after cooling, it suddenly bends, twists, or loses dimensional accuracy. This can lead to assembly problems, customer complaints, and costly rework.

In fact, we recently encountered a similar issue during a project involving a large thin-wall housing. The molded parts initially met dimensional requirements, but after several hours of cooling, noticeable deformation appeared along one side of the component. After analyzing the molding process, cooling system, and part design, we identified multiple factors contributing to the problem.

So, why do injection molding parts warp after cooling, and more importantly, how can manufacturers prevent it?

Let’s take a closer look.

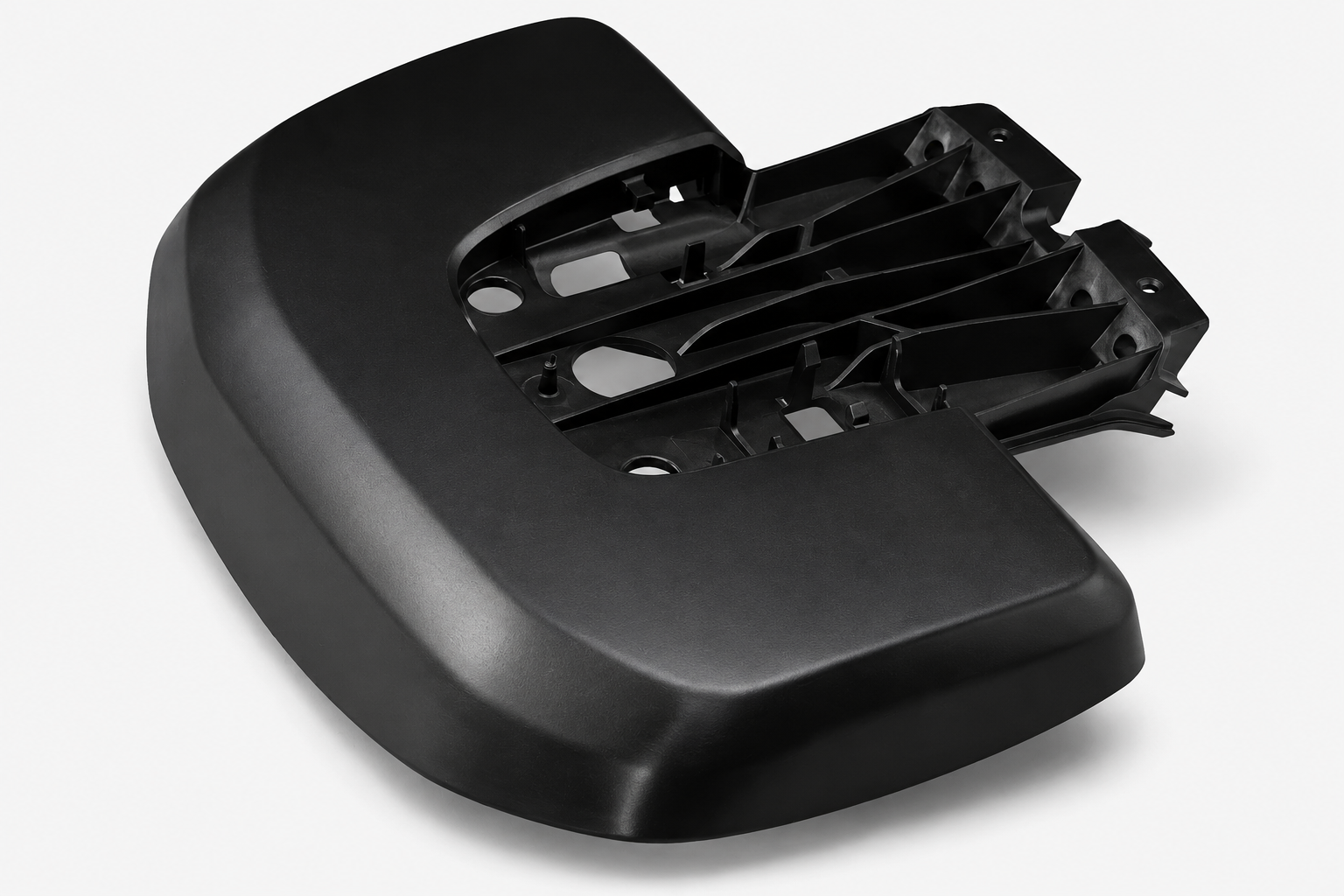

What Is Warpage in Injection Molding?

Warpage refers to the unintended distortion of a molded plastic part after it is ejected from the mold. Instead of maintaining its designed geometry, the part bends, twists, curves, or shrinks unevenly.

Although all plastic materials shrink during cooling, problems arise when the shrinkage is not uniform throughout the part.

As a result, internal stresses develop, pulling the part out of shape.

The Main Causes of Injection Molding Warpage

1. Uneven Cooling Across the Part

One of the most common reasons for warpage is non-uniform cooling.

When one area of a part cools faster than another, the faster-cooling section solidifies first and restricts the movement of the remaining material. Consequently, differential shrinkage occurs.

For example, in the project mentioned earlier, the cooling channels were located farther from one side of the cavity. As a result, that side remained hotter for longer, leading to greater shrinkage and visible bending after cooling.

To minimize this issue:

• Optimize cooling channel layout
• Maintain consistent mold temperatures
• Use conformal cooling when possible
• Verify cooling balance during mold trials

At www.fentormold.com, cooling system design is always reviewed during mold development to ensure stable production and dimensional consistency.

2. Uneven Wall Thickness

Another major contributor to warpage is inconsistent wall thickness.

Thicker sections retain heat longer than thinner areas. Therefore, they continue shrinking after the surrounding material has already solidified.

This difference in shrinkage creates internal stress and eventually causes deformation.

Common design mistakes include:

• Thick ribs attached to thin walls
• Sudden thickness transitions
• Heavy bosses without proper coring
• Localized material accumulation

Instead, designers should aim for uniform wall thickness throughout the part whenever possible.

3. Material Shrinkage Characteristics

Different plastics shrink at different rates.

Semi-crystalline materials such as:

• Polypropylene (PP)
• Polyethylene (PE)
• Nylon (PA)
• POM

typically exhibit higher and less predictable shrinkage than amorphous materials such as ABS or PC.

Furthermore, reinforced materials behave differently. Glass-fiber-filled plastics often shrink more in one direction than another due to fiber orientation.

Consequently, even a well-designed mold may experience warpage if material behavior is not properly considered during design and process development.

4. Incorrect Gate Location

Gate position plays a critical role in controlling material flow.

When molten plastic enters the cavity, polymer molecules align in the direction of flow. If the gate is poorly positioned, uneven molecular orientation can occur throughout the part.

After cooling, these orientation differences result in unequal shrinkage and part distortion.

Signs of gate-related warpage include:

• Curved flat panels
• Twisted long components
• Asymmetrical deformation

Therefore, mold flow analysis should be performed before tooling begins.

You can learn more about mold engineering and tooling solutions on www.fentormold.com.

5. Excessive Packing Pressure

Packing pressure is necessary to compensate for material shrinkage.

However, too much packing pressure can introduce residual stress inside the part.

Initially, the component may appear acceptable. Yet as the stress gradually relaxes after ejection, the part begins to warp.

To prevent this:

• Optimize holding pressure
• Adjust holding time
• Monitor cavity pressure
• Avoid over-packing thick sections

Finding the right balance is essential for dimensional stability.

6. Poor Part Design

Sometimes the root cause is not the mold or process but the part design itself.

Large flat surfaces are particularly vulnerable to warpage because they lack structural support.

Similarly, long unsupported walls can easily deform during cooling.

Effective design improvements include:

• Adding ribs
• Using gussets
• Introducing curvature where appropriate
• Increasing structural stiffness

Even small design changes can dramatically reduce deformation risks.

How to Diagnose Warpage Problems

When warpage occurs, many manufacturers immediately adjust machine parameters.

However, this often treats the symptom rather than the cause.

Instead, a systematic approach should be followed.

Step 1: Analyze the Deformation Pattern

Determine whether the part is:

• Bowing
• Twisting
• Curling
• Sinking

Each pattern may indicate a different underlying issue.

Step 2: Check Cooling Uniformity

Use thermal imaging or mold temperature measurements to identify hot spots.

Temperature differences often reveal cooling imbalances that are otherwise difficult to detect.

Step 3: Review Material Data

Verify:

• Shrinkage rates
• Fiber content
• Processing recommendations
• Moisture sensitivity

Material selection frequently influences final part stability.

Step 4: Evaluate Mold Design

Inspect:

• Gate position
• Cooling layout
• Ejection system
• Venting design

In many cases, tooling modifications provide a permanent solution.

Practical Solutions to Reduce Warpage

Fortunately, most warpage issues can be controlled through a combination of design, tooling, and process optimization.

Improve Cooling Efficiency

Balanced cooling remains the most effective solution.

Consider:

• Additional cooling channels
• Baffles and bubblers
• Conformal cooling inserts
• Better temperature control systems

Optimize Processing Parameters

Adjust:

• Melt temperature
• Mold temperature
• Injection speed
• Holding pressure
• Cooling time

Small parameter changes can significantly affect part stability.

Use Mold Flow Simulation

Simulation software helps predict:

• Flow patterns
• Shrinkage behavior
• Fiber orientation
• Potential warpage

By identifying risks before manufacturing, costly corrections can be avoided later.

Modify Part Geometry

If warpage persists, redesign may be necessary.

Adding stiffness through ribs or modifying wall thickness distribution often provides long-term improvements.

Select the Right Material

In some applications, switching to a lower-shrinkage resin may be the most practical solution.

Although material changes can increase cost, they may reduce rejection rates and improve overall production efficiency.

A Real-World Lesson

In the project we recently worked on, the customer experienced deformation on a large cosmetic housing after cooling.

Initially, machine settings were adjusted multiple times without success. However, after a detailed investigation, we discovered that cooling was uneven across the cavity, and one wall section was significantly thicker than the surrounding geometry.

By modifying the cooling layout and optimizing packing parameters, the warpage was reduced to within the customer’s tolerance requirements.

This experience highlights an important fact:

Warpage is rarely caused by a single factor. More often, it results from the interaction between part design, material behavior, mold construction, and processing conditions.

Final Thoughts

Injection molding warpage after cooling is a common but manageable challenge.

While uneven cooling is often the primary culprit, factors such as wall thickness variation, material shrinkage, gate location, packing pressure, and part design can all contribute to deformation.

Therefore, manufacturers should take a comprehensive approach when troubleshooting warpage issues rather than focusing on a single variable.

With proper mold design, optimized processing conditions, and careful engineering analysis, most warpage problems can be significantly reduced or eliminated altogether.
