Introduction
Injection mold cost varies significantly in real production projects, which often surprises many buyers during RFQ evaluation. However, this difference is not random. It is mainly caused by design complexity, steel grade selection, cooling system layout, and tolerance requirements. In addition, different production volumes and lifecycle expectations also influence final tooling pricing.
In modern manufacturing, understanding Injection Mold Cost Breakdown is essential for making correct sourcing decisions. Therefore, engineers must analyze not only machining cost but also structural design and long-term production efficiency. At Fentormold, cost evaluation is based on engineering simulation and mold lifecycle planning.
👉 https://www.fentormold.com/Injection-Mold/
For reference on basic injection molding principles, you can also check:
https://en.wikipedia.org/wiki/Injection_molding
What Determines Injection Mold Cost?
Injection mold cost is determined by multiple engineering and manufacturing factors. However, the most important drivers are geometry, steel selection, and mold structure complexity.
5 .Engineering factors affecting cost
You need to understand that each design decision directly affects machining time and tooling cost.

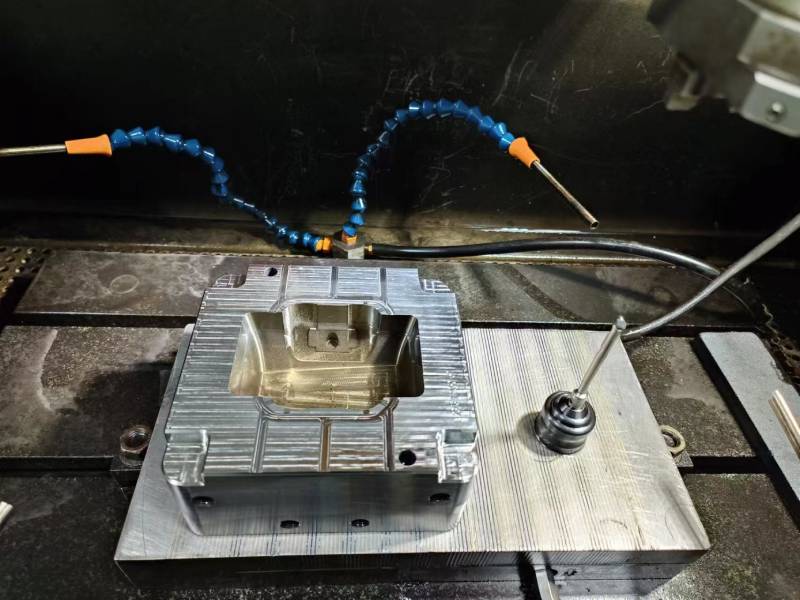

- Complex geometry increases CNC and EDM time
- Tight tolerances require additional polishing and inspection
- Multi-cavity molds significantly increase tooling structure cost
Therefore, even small design changes can lead to large cost differences.
Why Mold Design Complexity Affects Price
Mold design complexity directly affects Injection Mold Cost Breakdown because it increases machining difficulty and tooling hours.
7 Geometry complexity and machining time
You are dealing with precision engineering systems, not simple manufacturing.
- Undercuts require side actions or lifters
- Deep ribs increase EDM processing time
- Thin-wall structures require higher machining accuracy
However, more complex designs often improve product functionality.
How Steel Selection Changes Mold Cost
Steel selection plays a critical role in Injection Mold Cost Breakdown because it determines machining difficulty, wear resistance, and mold lifespan.
6
Steel grade impact
You must evaluate both cost and durability.
- Pre-hardened steel reduces machining time
- Hardened steel increases EDM cost but extends lifespan
- Corrosion-resistant steel is required for humid environments
Therefore, steel selection is a long-term investment decision.
Why Cooling System Impacts Total Cost
Cooling system design significantly affects Injection Mold Cost Breakdown because it influences machining complexity and production cycle time.
7 Cooling channel complexity
You are not just designing cooling; you are controlling production efficiency.
- Straight cooling channels are cheaper to manufacture
- Conformal cooling increases machining complexity
- Poor cooling design increases cycle time
However, better cooling improves product quality.
Case Study: Why T1 Failure Increased Mold Cost
T1 failure significantly increased Injection Mold Cost Breakdown because structural redesign was required after dimensional deviation.
5 In one automotive housing project, initial T1 samples showed warpage of 2.1% due to unbalanced flow and insufficient venting. However, after analysis, engineers found that both gating and cooling system needed redesign.
Engineering correction process
You must understand that failure is not just a defect; it is a redesign trigger.
- Gate reposition improved flow balance
- Cooling system redesign reduced thermal stress
- Venting optimization eliminated air traps
As a result, final mold cost increased due to additional engineering work.
How to Optimize Injection Mold Cost
Injection mold cost can be optimized through early engineering decisions. Therefore, design optimization is the most effective cost control method.
5 Cost reduction strategy
You should focus on early-stage decisions.
- Simplify unnecessary undercuts
- Standardize mold components
- Optimize runner and gate system
In addition, simulation helps reduce trial-and-error cost.
👉 https://www.fentormold.com/Injection-Mold/
Conclusion
Injection Mold Cost Breakdown depends on design complexity, steel selection, cooling system, and engineering validation results. Therefore, understanding these factors is essential for accurate budgeting and successful production planning.
At Fentormold, we provide engineering-driven mold design and cost optimization solutions for global OEM customers. If you are planning a new project, you can contact us today for professional support and cost evaluation.
