Injection mold design is a critical step in any plastic manufacturing project. A small mistake at this stage can lead to high tooling cost, production defects, and long-term quality issues.
This injection mold design checklist provides simple and practical engineering rules to help you avoid costly mistakes before starting your project. It focuses on real manufacturability factors that affect cost, quality, and production stability.
By following these rules, you can reduce risk and improve mold performance from the very beginning.
1. Define Product Requirements Clearly
Before starting mold design, product requirements must be clearly defined.
These include:
- Product function
- Material selection
- Tolerance requirements
- Production volume
In addition, unclear requirements often lead to redesigns. As a result, mold cost increases significantly.
Therefore, this step is the foundation of every injection mold design checklist.
2. Keep Wall Thickness Uniform
Wall thickness is one of the most important rules in mold design.
If thickness is inconsistent, it may cause:
- Sink marks
- Warping
- Uneven shrinkage
In contrast, uniform wall thickness improves cooling balance and part stability.
However, when changes are necessary, transitions should be smooth.
Visual Reference
7
3. Use Proper Draft Angles
Draft angles help parts eject smoothly from the mold.
Without proper draft:
- Parts may stick in the cavity
- Surface scratches may occur
- Ejection force increases
Typically, 1°–3° draft is recommended.
Therefore, draft must be considered early in the injection mold design process.
4. Design a Stable Gating System
The gating system controls how plastic flows into the cavity.
A poor design may cause:
- Flow marks
- Air traps
- Uneven filling
In contrast, a well-designed gate improves:
- Product appearance
- Dimensional stability
- Cycle efficiency
Gate location should avoid visible cosmetic surfaces whenever possible.
5. Simplify Mold Structure Whenever Possible
Mold complexity directly impacts cost and lead time.
For example:
- Simple parts → 2-plate mold
- Complex parts → 3-plate or hot runner system
However, unnecessary complexity should always be avoided.
Simplification is one of the most effective ways to reduce tooling cost in injection mold design.

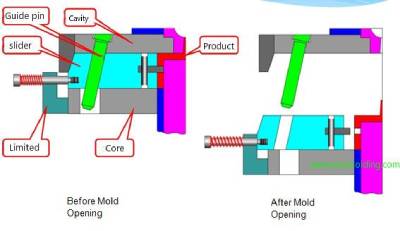

Mold Structure Reference
6
6. Choose Materials Based on Function
Material selection should not be based on price alone.
Low-cost materials may lead to:
- Poor strength
- Dimensional instability
- Short mold life
Therefore, material choice must balance performance and cost.
In addition, mold steel selection must match production volume.
7. Design an Efficient Cooling System
Cooling design strongly affects cycle time.
In fact, cooling accounts for 60–70% of total cycle time.
Therefore, poor cooling increases both cost and instability.
A good cooling system ensures:
- Faster cycle time
- Stable part quality
- Lower defect rate
8. Avoid Over-Complicated Design
Many injection mold design problems come from unnecessary complexity.
However, complex design leads to:
- Higher tooling cost
- Longer lead time
- More maintenance issues
Therefore, always evaluate whether each feature is necessary.
Simplicity usually improves reliability.
9. Use Mold Flow Simulation Before Tooling
Simulation helps detect problems before manufacturing.
It can identify:
- Air traps
- Weld lines
- Filling imbalance
- Warpage risk
As a result, it reduces trial cost and improves first-shot success rate.
10. Work With an Experienced Mold Manufacturer
An experienced supplier can improve your injection mold design before tooling starts.
They can help optimize:
- Gate location
- Cooling layout
- Mold structure
- Cost efficiency
👉 Prototype support:
https://www.fentormold.com/Prototype-Injection-Molding/
👉 More mold solutions:
https://www.fentormold.com/Injection-Mold/
Working with an experienced partner like Fentormold helps reduce design risk and improve final quality.
CONCLUSION
This injection mold design checklist highlights simple but critical engineering rules that help avoid costly mistakes.
Key principles include:
- Clear product requirements
- Proper wall thickness
- Correct draft angles
- Stable gating system
- Simplified mold structure
- Efficient cooling design
- Early simulation validation
Following these rules helps improve product quality while reducing manufacturing risk and cost.
