Introduction
Developing a new plastic product requires careful testing before moving into full-scale manufacturing. A small design mistake discovered after production begins can lead to expensive mold modifications, production delays, and additional costs.
This is why many companies choose prototype injection molding before investing in mass production tooling.

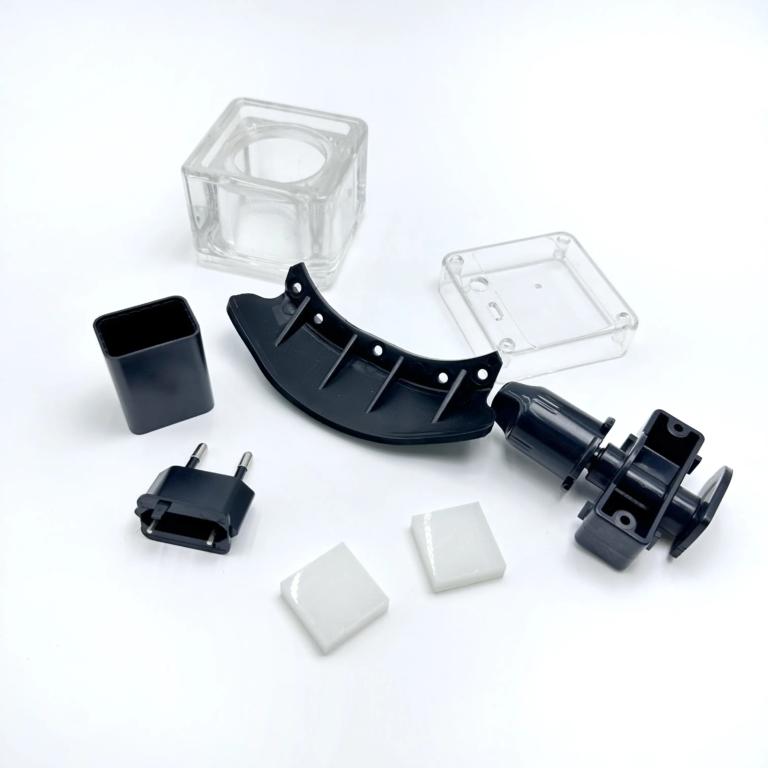

Prototype injection molding allows engineers to produce real plastic parts using injection molding processes and evaluate product design, material performance, assembly requirements, and overall functionality.
Unlike simple visual prototypes created through 3D printing, injection molded prototypes use the same manufacturing principles as final production parts. This provides more accurate feedback about how the product will perform in real-world applications.
For companies developing automotive components, electronic housings, industrial parts, or consumer products, prototype injection molding is an effective step between product design and mass production.
At Fentormold, we provide complete plastic manufacturing solutions, from prototype development to production injection molding.
Learn more about our injection mold manufacturing capabilities:
www.fentormold.com/injection-mold/
What Is Prototype Injection Molding?
Prototype injection molding is a manufacturing process used to create small quantities of plastic parts for design testing and product validation before mass production.
The process is similar to traditional injection molding:
- Plastic material is heated and melted.
- The molten plastic is injected into a mold cavity.
- The material cools and solidifies.
- The finished prototype part is ejected.
The main difference is that prototype molding focuses on testing and validation rather than high-volume production.
Companies typically use prototype injection molding to verify:
- Product appearance
- Functional performance
- Assembly requirements
- Material selection
- Manufacturing feasibility
After successful validation, the product can move into final production using a production-grade injection mold.
Why Use Prototype Injection Molding Before Production?
Creating a production mold requires significant investment. Therefore, validating the product design before mass production is extremely important.
Reduce Product Development Risks
One of the biggest advantages of prototype injection molding is reducing development risks.
During prototype testing, engineers can identify issues such as:
- Incorrect dimensions
- Poor assembly fit
- Weak structural areas
- Surface appearance problems
- Material performance issues
Finding these problems early is much less expensive than modifying a completed production mold.
Test Real Materials
One limitation of some prototype methods is that they cannot always use the final production material.
With prototype injection molding, manufacturers can test actual engineering plastics, including:
- ABS
- PP
- PC
- Nylon
- POM
- TPE
This allows engineers to evaluate:
- Strength
- Flexibility
- Heat resistance
- Chemical resistance
- Surface quality
Real material testing provides more accurate results before mass production.
Verify Product Assembly
Many plastic products contain multiple components that need to fit together precisely.
Prototype injection molding allows engineers to check:
- Snap fits
- Screw connections
- Assembly tolerance
- Component interaction
This is especially important for products with complex structures.
Prototype Injection Molding Process
A professional prototype molding project usually includes several important stages.
Product Design Review
Before manufacturing begins, engineers review the 3D model and product drawings.
The goal is to identify potential molding problems.
Important design considerations include:
Wall Thickness
Uniform wall thickness helps prevent:
- Sink marks
- Warpage
- Internal stress
Draft Angle
Proper draft angles allow the part to release smoothly from the mold.
Parting Line Design
The correct parting line location improves:
- Appearance
- Mold structure
- Manufacturing efficiency
A professional supplier should provide DFM (Design for Manufacturing) feedback before making the prototype mold.
Prototype Mold Design
The prototype mold is designed based on the product requirements and expected testing purpose. Since prototype tooling often becomes the foundation for future production molds, working with an experienced injection mold manufacturer can help ensure a smoother transition from prototype validation to mass production.
Learn more about our injection mold manufacturing capabilities:
www.fentormold.com/injection-mold/
Compared with production molds, prototype molds may use simplified structures to reduce cost and shorten development time.
Depending on the project, prototype molds may include:
- Single cavity design
- Simple mold structures
- Standard mold components
- Faster machining processes
However, the mold still needs sufficient accuracy to produce reliable test parts.
Prototype Mold vs Production Mold: What Is the Difference?
Although prototype molds and production molds use similar injection molding principles, they are designed for different purposes.
Understanding the difference helps companies choose the right manufacturing solution during product development.
Prototype Mold Characteristics
Prototype molds are mainly used for:
Design validation
Functional testing
Market evaluation
Small-batch production
Their main advantages include:
Shorter manufacturing time
Lower initial investment
Faster design changes
Prototype molds are suitable when the product design is still being optimized.
Production Mold Characteristics
Production molds are designed for long-term manufacturing.
They usually require:
Higher-grade mold steel
More durable components
Optimized cooling systems
Higher cavity numbers
Production molds are built to support:
Large production volumes
Long service life
Stable cycle times
After prototype validation is completed, companies usually move to production tooling.
Prototype Injection Molding vs 3D Printing
Many companies compare prototype injection molding with 3D printing when developing new products.
Both methods have advantages, but they are suitable for different stages of development.
Advantages of 3D Printing
3D printing is useful for early-stage prototypes because it offers:
Very fast production
No tooling investment
Easy design modifications
Low initial cost
It is suitable for:
Concept models
Visual prototypes
Basic fit testing
Advantages of Prototype Injection Molding
Prototype injection molding provides more accurate manufacturing validation because it uses real injection molding processes.
Benefits include:
Real production materials
Better surface finish
More accurate dimensions
Similar processing conditions to mass production
For companies preparing for injection molded products, prototype molding provides more reliable testing results.
Materials Used in Prototype Injection Molding
One major advantage of prototype injection molding is the ability to test production-grade materials.
The material choice depends on the product requirements, including strength, flexibility, temperature resistance, and appearance.
ABS Plastic
ABS is widely used for prototype parts because it provides:
Good impact resistance
Excellent surface quality
Easy processing
Common applications include:
Electronic housings
Consumer products
Automotive interior components
Polypropylene (PP)
PP is lightweight and chemically resistant.
It is commonly used for:
Containers
Automotive parts
Living hinge designs
Prototype testing with PP helps verify flexibility and durability.
Polycarbonate (PC)
PC offers excellent impact resistance and transparency.
Typical applications include:
Protective covers
Optical components
Safety-related products
Nylon (PA)
Nylon provides:
High mechanical strength
Wear resistance
Good durability
It is suitable for functional prototypes such as:
Gears
Mechanical components
Industrial parts
Silicone Rubber and Flexible Materials
Some products require soft-touch or sealing functions.
For these applications, flexible materials such as silicone rubber may be required.
Fentormold also provides silicone rubber manufacturing solutions:
www.fentormold.com/Silicone-Rubber-Parts/
Applications of Prototype Injection Molding
Prototype injection molding is widely used across different industries because it allows companies to test real production parts before mass manufacturing.
Automotive Industry
Automotive companies use prototypes to validate:
Interior components
Exterior plastic parts
Functional clips
Covers and housings
Before committing to large production volumes, engineers can test:
Assembly performance
Appearance
Mechanical strength
Electronics Industry
Electronic products often require precise plastic housings and components.
Prototype molding helps manufacturers verify:
Product design
Component fitting
Button operation
Assembly process
Common applications include:
Device housings
Connector parts
Protective covers
Medical Products
Medical products require high precision and reliable performance.
Prototype injection molding allows companies to test:
Product functionality
Ergonomic design
Material suitability
Before entering production, prototypes help ensure the design meets application requirements.
Industrial Equipment
Industrial products often require durable plastic components.
Prototype molding can be used for:
Machine covers
Handles
Structural components
Functional parts
Testing prototypes before production helps reduce manufacturing risks.
How Much Does Prototype Injection Molding Cost?
The cost of prototype injection molding depends on several factors.
Unlike mass production molds, prototype projects focus on faster development and design validation.
Mold Complexity
Simple prototype molds usually cost less because they require fewer machining processes.
Factors affecting cost include:
Part geometry
Mold size
Number of cavities
Slider requirements
Surface finishing
Material Selection
Different plastics have different costs.
Engineering materials such as PC, Nylon, and POM may increase prototype costs compared with standard plastics.
Prototype Quantity
The required number of prototype parts also affects the overall cost.
For example:
A few samples may require a simple prototype mold.
Larger prototype quantities may require more durable tooling.
Design Changes
Frequent design changes can increase development costs.
Therefore, completing DFM analysis before mold manufacturing can help reduce unnecessary modifications.
How to Choose a Prototype Injection Molding Supplier?
Choosing the right supplier is important because prototype development directly affects the success of future mass production.
A reliable prototype injection molding supplier should not only produce samples but also provide engineering support throughout the development process.
Check Engineering Experience
Prototype projects often require design improvements and technical communication.
A capable supplier should understand:
Plastic material characteristics
Mold design principles
Injection molding processes
Product optimization methods
Experienced engineers can identify potential manufacturing problems and provide practical solutions before production.
Evaluate Mold Manufacturing Capability
Prototype quality depends heavily on mold accuracy.
A supplier with strong mold manufacturing capability can provide better prototype results.
Important capabilities include:
Precision CNC machining
EDM machining
Mold assembly
Mold testing
Dimensional inspection
For companies developing complex plastic parts, choosing a manufacturer with both mold making and injection molding capability is usually more efficient.
Learn more about precision mold component manufacturing:
www.fentormold.com/Components-Manufacturing/
Consider Transition to Mass Production
A good prototype supplier should be able to support the next production stage.
After prototype validation, customers often need:
Production mold manufacturing
Injection molding production
Quality control
Export support
Working with the same supplier from prototype to mass production can reduce communication problems and shorten the development cycle.
Benefits of Working with a China Prototype Injection Molding Manufacturer
Many overseas companies choose China for prototype and production projects because of its strong manufacturing capabilities.
Cost-Effective Development
Chinese manufacturers have mature supply chains for:
Mold components
Machining services
Plastic materials
Manufacturing processes
This allows companies to develop prototypes at competitive costs.
Faster Development Timeline
A professional Chinese supplier with complete manufacturing resources can often shorten development time.
The process can be optimized through:
Fast engineering communication
Local supply chain support
Efficient mold manufacturing
One-Stop Manufacturing Solution
A capable manufacturer can support the complete product development journey:
Product Design
↓
Prototype Injection Molding
↓
Production Mold
↓
Mass Production
↓
Final Shipment
This integrated approach helps companies achieve smoother project management.
Prototype Injection Molding for Low Volume Production
Although prototype injection molding is mainly used for testing, it can also be suitable for low-volume production.
Some companies do not immediately require thousands of parts because they may need:
Market testing
Limited product launches
Customer evaluation samples
Small production batches
In these situations, prototype molds can provide an economical solution before investing in high-volume production tooling.
Low-volume injection molding is especially useful for:
Startups
New product development
Customized products
Special industrial applications
How Prototype Injection Molding Supports Product Development
A successful product development process usually involves several stages.
Stage 1: Product Concept
At the beginning, companies create product designs based on market requirements.
During this stage, the focus is on:
Product function
Appearance
User requirements
Stage 2: Prototype Validation
Prototype injection molding allows companies to produce real parts and evaluate the design.
Engineers can verify:
Product structure
Material performance
Assembly requirements
Stage 3: Design Improvement
Based on prototype testing results, companies can improve:
Product dimensions
Mold design
Material selection
Manufacturing process
Stage 4: Mass Production
After successful validation, the project can move into production.
At this stage, companies can invest in production molds with confidence.
Why Choose Fentormold for Prototype Injection Molding?
Fentormold provides professional prototype and injection molding solutions for customers worldwide.
Our services cover the complete development process, including:
Product design review
DFM analysis
Prototype mold manufacturing
Injection molding trials
Production tooling
Mass production support
With experience in mold manufacturing and plastic injection molding, we help customers reduce development risks and move from prototype concepts to successful production.
Whether you need functional prototypes for testing or a complete manufacturing solution, Fentormold provides reliable support throughout your project.
Conclusion
Prototype injection molding is an important step between product design and mass production.
By producing real plastic parts with production materials and injection molding processes, companies can verify product performance, identify potential problems, and improve designs before making large investments.
Compared with traditional prototype methods, prototype injection molding provides more accurate results for companies preparing for injection molded products.
Choosing an experienced supplier with strong engineering capability, mold manufacturing expertise, and production support can help companies achieve faster product development and smoother transition to mass production.
Fentormold provides complete plastic manufacturing solutions, helping global customers develop high-quality plastic parts from prototype validation to final production.
