Prototype Mold for Plastic Parts: When Do You Need It?
When developing a new plastic part, deciding whether you need a prototype mold can have a major impact on development cost, lead time, and production risk. A prototype mold allows you to produce real injection molded parts before committing to full-scale production tooling.
For projects that require functional testing, assembly checks, material validation, or small-batch production, prototype molding can be a practical step between the initial design and a production mold.
If you are developing a new plastic part and need prototype injection molding support, learn more about our Prototype Injection Molding service.
What Is a Prototype Mold?
A prototype mold is a simplified or lower-cost injection mold used to produce plastic parts during product development.
Unlike a production mold, which is designed for long-term mass production, a prototype mold is usually built with development speed, tooling cost, and design flexibility in mind.
A prototype mold can be used to evaluate:
- Part design and dimensions
- Material performance
- Assembly and fit
- Functional performance
- Surface appearance
- Manufacturability
- Mold filling and ejection
- Potential design changes before production tooling
This makes prototype molds particularly useful when a product has not yet been fully validated.
When Do You Need a Prototype Mold?
Not every plastic product needs prototype tooling. In some cases, 3D printing or CNC machining may be enough for early design checks.
However, a prototype mold becomes more valuable when you need to evaluate the part under conditions that are closer to actual injection molding production.
When the Product Design Is Not Fully Finalized
If your design is still changing, building an expensive production mold too early can create unnecessary costs.
A prototype mold allows you to manufacture real parts, identify problems, and make design changes before committing to production tooling.
This can be especially useful for parts with:
- Complex ribs and bosses
- Snap-fit features
- Tight assembly requirements
- Deep cores
- Sliders or lifters
- Cosmetic surfaces
When You Need Functional Testing
A 3D printed prototype can show whether a part looks right, but it may not behave like an injection molded component made from the final production material.
Prototype molded parts can be used for:
- Mechanical testing
- Assembly validation
- Functional testing
- Heat and environmental testing
- Fit and dimensional checks
- User testing
For example, if the final part will be molded from PP, ABS, PC, PA, or HDPE, producing a molded prototype with the intended material can provide more meaningful test results than a printed model.
When You Need a Small Production Run
A prototype mold can also be useful when you need a limited quantity of parts before mass production.
The right production quantity depends on the mold design, material, part geometry, and expected product life. For some projects, a prototype mold may be suitable for dozens or hundreds of parts; for others, a more durable rapid tooling solution can support a larger batch.
The important point is that prototype tooling should be selected based on the actual development and production requirements rather than a fixed quantity.
When You Need to Reduce Time to Market
Prototype molding can shorten the development cycle by allowing your team to test physical injection molded parts before the final production mold is completed.
Instead of waiting until production tooling is finished to discover a design problem, you can identify issues earlier and make changes while the tooling investment is still relatively limited.
What Are the Main Types of Prototype Molds?
Prototype tooling can be manufactured using different approaches. The right option depends on the required quantity, part complexity, material, surface requirements, and expected tooling life.

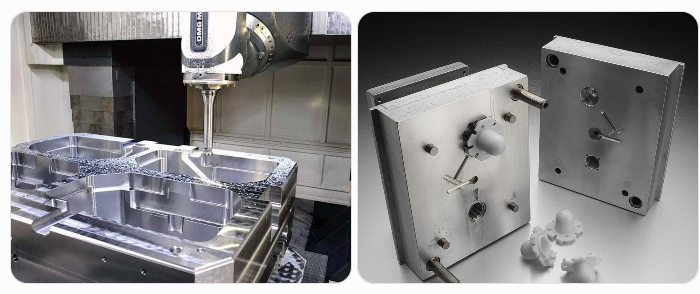

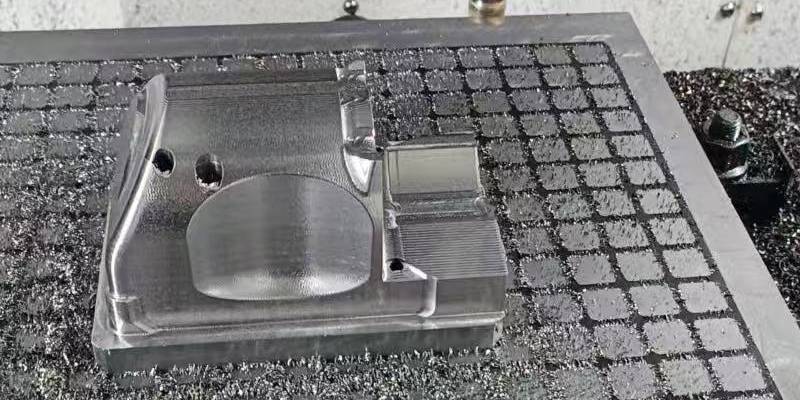

Aluminum Prototype Molds
Aluminum is commonly used for rapid tooling because it can generally be machined faster than hardened tool steel.
Typical advantages include:
- Shorter tooling lead time
- Lower initial tooling cost
- Good machinability
- Suitable for many prototype and low-volume applications
Aluminum tooling can be a good option when you need functional injection molded parts quickly and the expected production volume does not justify a full production mold.
However, the actual tool life depends on the aluminum grade, mold design, plastic material, processing conditions, and part geometry.
Soft Steel Prototype Molds
Some prototype molds use softer or pre-hardened steels when greater durability is required than aluminum can provide.
These molds can offer a useful balance between:
- Tooling cost
- Tool life
- Machining requirements
- Production quantity
They may be appropriate when a project has moved beyond simple prototype validation but does not yet require a full high-volume production tool.
3D Printed Molds
3D printed tooling can be useful for very early-stage experiments and certain low-volume applications.
Its main advantages are speed and low initial cost.
However, durability, dimensional stability, surface quality, pressure resistance, and material compatibility can limit its use in conventional injection molding.
For demanding functional prototypes, machined aluminum or steel tooling is often a more practical option.
Prototype Mold vs Production Mold
The main difference between a prototype mold and a production mold is their intended purpose.
| Factor | Prototype Mold | Production Mold |
|---|---|---|
| Main purpose | Design validation and low-volume production | Mass production |
| Initial cost | Generally lower | Generally higher |
| Lead time | Usually shorter | Usually longer |
| Expected tool life | Limited or project-specific | Designed for long-term production |
| Design flexibility | Easier to modify | Changes can be more expensive |
| Production volume | Low to moderate | Medium to high |
| Optimization priority | Speed and development flexibility | Cycle time, durability and consistency |
The right choice depends on your development stage.
If your part design is still being validated, prototype tooling can reduce the risk of investing in production tooling too early.
If the design is already proven and the expected volume is high, a production mold may provide better long-term economics.
How Much Does a Prototype Mold Cost?
There is no single price for a prototype mold.
The tooling cost depends on several factors, including:
- Part size and complexity
- Number of cavities
- Mold material
- Core and cavity machining requirements
- Sliders, lifters, or other moving mechanisms
- Surface finish
- Cooling design
- Ejection system
- Plastic material
- Expected production quantity
A simple single-cavity aluminum prototype mold can be significantly less expensive than a complex multi-cavity production mold.
However, comparing mold prices without considering tool life and production requirements can lead to the wrong decision.
A lower-cost prototype mold is not necessarily the best option if the project requires a large number of parts or extensive functional testing.
How Long Does a Prototype Mold Take?
Prototype mold lead time depends on the part geometry, mold material, tooling structure, machining requirements, and project specifications.
A simple prototype mold may be completed relatively quickly, while a more complicated mold with sliders, lifters, complex cooling, or tight tolerances can require considerably more time.
The actual schedule should be confirmed after reviewing the part design and technical requirements.
This is why providing the 3D CAD file, material information, expected quantity, and target delivery date during the RFQ stage can help a mold supplier give you a more realistic lead time.
What Should Buyers Check Before Ordering a Prototype Mold?
Before ordering a prototype mold, buyers should look beyond the initial tooling price.
Consider these questions:
1. Is the part design ready for injection molding?
A design review can identify problems such as insufficient draft, uneven wall thickness, difficult ejection, or potential sink marks before tooling starts.
2. What material will be used?
The selected plastic affects shrinkage, mold design, processing conditions, and tool requirements.
3. How many parts do you need?
Expected quantity helps determine whether aluminum tooling, soft steel tooling, or production-grade tooling makes more sense.
4. Will the prototype be used for functional testing?
If the parts need to withstand mechanical, thermal, or assembly testing, the tooling and molding process should be designed accordingly.
5. What happens after prototype validation?
If the product will move into mass production, discuss the transition from prototype tooling to production tooling before the prototype mold is built.
This can help reduce redesign work later.
Prototype Mold or 3D Printing: Which Should You Choose?
3D printing is often suitable for checking basic geometry, appearance, and early design concepts.
A prototype mold becomes more useful when you need:
- Injection molded material
- Real production-style surfaces
- Functional testing
- Assembly validation
- More representative dimensions
- Small-batch molded parts
For very early design validation, 3D printing may be sufficient.
For functional validation before production, prototype injection molding can provide much more realistic results.
How Prototype Molding Services Support Product Development
A prototype mold is only one part of the development process.
A capable prototype molding supplier can also help with:
- DFM review
- Mold design
- Material selection
- Rapid tooling
- Prototype injection molding
- Dimensional inspection
- Design modifications
- Low-volume production
- Transition to production tooling
This is especially important when the prototype is intended to become a production part later.
Choosing a supplier that can support both prototype and production stages can make the transition smoother and reduce communication between different vendors.
For more information about prototype injection molding, visit:
Frequently Asked Questions
What is a prototype mold used for?
A prototype mold is used to produce real injection molded parts for design validation, functional testing, assembly checks, material evaluation, and low-volume production before investing in full production tooling.
Is a prototype mold cheaper than a production mold?
In many cases, yes. Prototype molds are generally designed with lower tooling cost and shorter development time in mind. However, the actual cost depends on the part geometry, mold material, cavity number, and required tooling features.
How long does a prototype mold take?
The lead time depends on the mold structure, material, part complexity, and machining requirements. Simple tooling can be completed relatively quickly, while complex prototype molds require more time.
How many parts can a prototype mold produce?
There is no universal number. Tool life depends on the mold material, plastic material, part design, processing conditions, and tooling quality. The expected quantity should be discussed with the mold supplier before choosing the tooling method.
Should I use a prototype mold or a production mold?
If the design still needs validation or you only need a limited quantity, prototype tooling may be more appropriate. If the design is finalized and the project requires long-term mass production, a production mold is usually the better choice.
