Introduction
Choosing the right mold material is one of the most important decisions in plastic injection molding. The tooling material directly affects mold cost, production efficiency, part quality, maintenance requirements, and the overall product lifecycle.
For prototype development and low-volume production, aluminum tooling is often a practical choice because it offers faster manufacturing speed and lower initial investment. However, when production requirements increase to hundreds of thousands or millions of parts, Steel Injection Molds remain the preferred solution for many industrial applications.
Steel molds are widely used because of their excellent durability, wear resistance, dimensional stability, and ability to maintain consistent part quality during long-term production.
Industries such as automotive, electronics, medical devices, household appliances, and industrial equipment rely on steel tooling because their products require:
- Long production lifespan
- High dimensional accuracy
- Stable repeatability
- Excellent surface finishes
- Reliable production performance
Although steel molds require a higher upfront investment compared with aluminum molds, they usually provide a lower cost per part when production volume is high.
This guide explains steel mold types, advantages, costs, lifespan, and design considerations to help engineers and purchasing teams choose the right tooling solution.
What Are Steel Injection Molds?

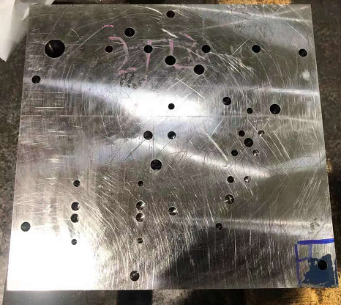

Steel Injection Molds are precision-engineered tooling systems manufactured from different grades of mold steel and used to produce plastic parts through the injection molding process.
A typical steel injection mold consists of:
- Mold base
- Core and cavity inserts
- Sliders
- Lifters
- Ejector system
- Cooling channels
- Guide components
- Hot runner or cold runner system
Compared with aluminum tooling, steel molds provide much higher hardness and wear resistance. This allows them to maintain accuracy and performance over long production cycles.
Common applications include:
- Automotive plastic components
- Electronic housings
- Medical parts
- Electrical connectors
- Appliance components
- Industrial plastic products
Choosing the right tooling supplier is essential because mold design quality directly affects production stability. A professional injection mold manufacturer can provide support from mold design, DFM analysis, material selection, machining, and final production.
More information about our injection mold manufacturing service:
Why Choose Steel Injection Molds?
Although aluminum tooling is suitable for prototypes and short production runs, steel remains the industry standard for high-volume manufacturing.
The main advantages of Steel Injection Molds include longer mold life, better wear resistance, higher precision, and excellent surface finishing capability.
1. Longer Mold Life
The biggest advantage of steel tooling is durability.
Depending on the steel grade, mold design, plastic material, and maintenance conditions, a properly manufactured steel mold can often produce:
- Hundreds of thousands of parts
- More than one million shots
- Several years of continuous production
For products with a long market lifecycle, steel tooling provides reliable production performance and reduces the need for frequent mold replacement.
For example, automotive suppliers often require molds that can operate continuously for many years. A high-quality steel mold helps maintain stable quality throughout the product lifecycle.
2. Superior Wear Resistance
During injection molding, molds experience continuous mechanical and thermal stress, including:
- High injection pressure
- Repeated opening and closing cycles
- Temperature changes
- Plastic material friction
Some engineering plastics contain glass fibers or mineral fillers that can accelerate mold wear.
Examples include:
- PA + glass fiber
- PBT + glass fiber
- PC + glass fiber
- PEEK
For these applications, steel molds provide better wear resistance compared with softer materials such as aluminum.
This helps maintain:
- Accurate cavity dimensions
- Stable part quality
- Lower maintenance frequency
- Longer tooling lifespan
3. Better Dimensional Stability
Many industries require plastic parts with strict dimensional tolerances.
Steel molds maintain their shape better under:
- High injection pressure
- Repeated thermal cycles
- Long production periods
Better dimensional stability helps reduce:
- Part variation
- Assembly problems
- Quality issues
- Production waste
This is especially important for automotive and medical applications where precision is critical.
4. Excellent Surface Finish Capability
Steel molds are ideal for applications requiring high-quality cosmetic surfaces.
They can achieve:
- Mirror polishing
- Fine textures
- EDM finishing
- Laser engraving
- High-gloss surfaces
Typical applications include:
- Automotive interior components
- Consumer electronics housings
- Transparent plastic parts
- Decorative components
Compared with aluminum molds, steel tooling provides better long-term surface durability.
Common Types of Steel Used for Injection Molds
Different projects require different steel materials. The best choice depends on production volume, plastic material, surface requirements, and budget.
P20 Mold Steel
P20 is one of the most commonly used steels for injection molding.
Advantages:
- Good machinability
- Balanced hardness
- Cost-effective
- Suitable for medium production
Typical applications:
- Consumer products
- Household appliances
- General plastic components
P20 provides a good balance between tooling cost and performance.
H13 Tool Steel
H13 is a hot-work steel known for excellent thermal performance.
Advantages:
- High temperature resistance
- Good toughness
- Strong wear resistance
It is commonly used for:
- Engineering plastics
- High-temperature applications
- Long-cycle production molds
S136 Stainless Steel
S136 is widely selected for applications requiring excellent polishing performance and corrosion resistance.
Advantages:
- High surface quality
- Excellent mirror polishing capability
- Corrosion resistance
Typical applications:
- Medical parts
- Optical components
- Transparent plastic products
NAK80 Steel
NAK80 is a pre-hardened steel with excellent polishing performance.
It is commonly used for:
- High-gloss electronic housings
- Automotive appearance parts
- Cosmetic components
Steel Injection Molds vs Aluminum Injection Molds
Both steel and aluminum tooling have advantages. The correct choice depends on production requirements.
| Feature | Steel Injection Molds | Aluminum Injection Molds |
|---|---|---|
| Initial Cost | Higher | Lower |
| Manufacturing Time | Longer | Faster |
| Mold Life | Longer | Shorter |
| Production Volume | High volume | Low to medium volume |
| Wear Resistance | Excellent | Moderate |
| Surface Finish | Excellent | Good |
| Modification | More difficult | Easier |
| Best Application | Mass production | Prototype and low-volume production |
For companies requiring millions of parts, steel tooling is usually the better investment.
For companies still validating product designs, aluminum tooling may provide better flexibility.
Factors Affecting Steel Injection Mold Cost
The cost of Steel Injection Molds depends on several factors.
Mold Size and Complexity
Large and complex molds require:
- More steel material
- Longer CNC machining time
- More advanced manufacturing processes
Features such as sliders, lifters, deep cavities, and complex structures can increase tooling cost.
Number of Cavities
The number of cavities directly affects mold cost.
Single-cavity molds:
- Lower tooling cost
- Lower production output
Multi-cavity molds:
- Higher initial investment
- Higher production efficiency
The correct cavity number depends on production demand and project budget.
Steel Material Selection
Different steels have different costs and performance.
For example:
- P20 is economical
- S136 provides excellent polishing and corrosion resistance
- Premium steels provide longer service life
The correct steel selection helps balance cost and performance.
Surface Finish Requirements
Cosmetic requirements also influence mold cost.
Examples:
- Standard machining finish
- Texture finish
- Polished surface
- Mirror finish
Higher surface requirements require additional machining and polishing processes.
Design Considerations for Steel Injection Molds
Proper mold design is essential for achieving stable production.
Cooling System Design
A well-designed cooling system helps:
- Reduce cycle time
- Improve part quality
- Reduce warpage
Poor cooling design can cause uneven shrinkage and inconsistent dimensions.
Draft Angle
Draft angles are required to ensure smooth part ejection.
Without sufficient draft, molded parts may experience:
- Scratches
- Surface damage
- Ejection problems
Venting Design
Proper venting allows trapped air and gases to escape during molding.
Insufficient venting may cause:
- Burn marks
- Short shots
- Surface defects
Precision Mold Components
High-quality mold components are critical for achieving accurate assembly and long mold life.
Components such as:
- Inserts
- Cores
- Sliders
- Ejector components
directly influence mold performance.
More information about our mold components manufacturing capabilities:
How Long Do Steel Injection Molds Last?
The lifespan of steel tooling depends on:
- Steel type
- Plastic material
- Production conditions
- Mold design
- Maintenance
Typical mold life:
| Mold Type | Expected Life |
|---|---|
| Prototype steel mold | 50,000–200,000 shots |
| Standard production mold | 500,000+ shots |
| High-quality production mold | 1 million+ shots |
Regular maintenance can significantly extend mold life.
Recommended maintenance includes:
- Cleaning mold surfaces
- Checking ejector systems
- Inspecting cooling channels
- Lubricating moving components
When Should You Choose Steel Injection Molds?
Steel tooling is the best choice when:
✔ Production volume is high
✔ Product lifecycle is long
✔ Tight tolerances are required
✔ Plastic materials are abrasive
✔ Surface appearance is important
✔ Production stability is critical
Industries such as automotive, electronics, medical, and industrial manufacturing usually benefit from steel molds because of their long-term reliability.
Frequently Asked Questions About Steel Injection Molds
Are steel injection molds better than aluminum molds?
It depends on the application. Steel molds are better for high-volume production, while aluminum molds are better for prototypes and lower-volume projects.
How much does a steel injection mold cost?
The cost depends on mold size, complexity, cavity number, steel selection, and finishing requirements.
How many parts can a steel injection mold produce?
A properly designed steel mold can often produce hundreds of thousands or millions of parts depending on production conditions.
Which steel is best for injection molds?
There is no single best steel. P20, H13, S136, and NAK80 are commonly selected based on application requirements.
Can steel molds be modified?
Yes, but modifications are usually more expensive than aluminum tooling. Proper DFM analysis before manufacturing helps reduce later changes.
Conclusion
Steel Injection Molds remain the preferred solution for manufacturers requiring reliable, high-volume plastic production.
Although steel tooling requires a higher initial investment, its durability, wear resistance, dimensional stability, and long service life make it a cost-effective choice for mass production.
By selecting the correct mold steel, optimizing mold design, and working with an experienced tooling partner, companies can achieve stable production quality and reduce overall manufacturing costs.
