Prototype vs production injection molding is an important decision when developing a new plastic part. The right choice can affect tooling cost, development time, product quality, tool life, and future production costs.
If your design is still changing, prototype injection molding can help you test real molded parts before committing to production tooling. Once the design and material are confirmed, a production mold may be the better choice for long-term manufacturing.
This guide explains the key differences between prototype vs production injection molding, including tooling cost, lead time, materials, tool life, production volume, and when to move from one stage to the next.
Key Takeaways
- Prototype injection molding is mainly used for design validation and low-volume production.
- Production injection molding is designed for long-term and higher-volume manufacturing.
- Prototype molds generally require less initial tooling investment.
- Production molds usually have a longer service life and higher upfront cost.
- Prototype tooling can reduce the risk of expensive production mold modifications.
- The right choice depends on part design, material, production volume, lead time, and future manufacturing plans.
1. What Is Prototype Injection Molding?
Prototype injection molding is used during the early stages of plastic product development.
Instead of going directly into mass-production tooling, manufacturers can build a prototype mold and use it to produce functional plastic parts.
These parts can help engineers evaluate:
- Product dimensions
- Functional performance
- Assembly and fit
- Material behavior
- Surface appearance
- Manufacturability
- Potential design problems
Prototype injection molding is particularly useful when the product design has not been fully validated.
For example, a plastic housing may look correct in a CAD model, but problems with snap fits, ribs, wall thickness, or assembly may only become obvious after producing actual molded parts.
If you need functional prototypes, learn more about Prototype Injection Molding.
2. What Is Production Injection Molding?
Production injection molding is designed for repeatable, long-term manufacturing.
After the product design, material, and function have been validated, a production mold can be built for the expected production volume.
Production molds normally focus on:
- Long tool life
- Stable part quality
- Consistent dimensions
- Efficient cycle times
- High production capacity
- Lower unit cost at larger volumes
Depending on the application, production molds may use hardened tool steel, multiple cavities, hot runners, optimized cooling systems, sliders, lifters, and automatic ejection systems.
For customers planning long-term manufacturing, Injection Mold design and manufacturing should be considered together with the expected production volume.
3. Prototype vs Production Injection Molding: Key Differences
The main differences between prototype vs production injection molding involve tooling cost, lead time, tool life, production volume, and design flexibility.
| Factor | Prototype Injection Molding | Production Injection Molding |
|---|---|---|
| Main purpose | Design validation and low-volume production | Long-term manufacturing |
| Initial tooling cost | Generally lower | Generally higher |
| Lead time | Usually shorter | Usually longer |
| Tool life | Limited or project-specific | Designed for long production runs |
| Production volume | Low to moderate | Medium to high |
| Design changes | Usually easier | More expensive after completion |
| Mold material | Aluminum or softer steel may be used | Production-grade tool steel |
| Part cost | Higher at low volumes | Lower at high volumes |
| Main priority | Speed and flexibility | Durability and production efficiency |
There is no single solution that works for every project.
The right choice depends on the product development stage, expected quantity, material, target schedule, and how long the mold needs to remain in production.
4. Prototype vs Production Injection Molding: Tooling Differences
Tool construction is one of the biggest differences when comparing prototype vs production injection molding.
Prototype Mold
A prototype mold normally focuses on development speed and flexibility.
Depending on the project, aluminum or other suitable tooling materials may be considered.
The main advantages include:
- Lower initial tooling investment
- Faster machining
- Easier modifications
- Suitable for functional testing
- Practical for low-volume production
This makes prototype tooling useful when the product design may still require changes.
Production Mold
A production mold is designed around long-term manufacturing requirements.
Depending on the part and expected production volume, the mold may include:
- Hardened tool steel
- Multiple cavities
- Hot runner systems
- Complex cooling circuits
- Sliders
- Lifters
- Precision ejector systems
- Automated features
The initial investment is usually higher, but the mold is designed to provide consistent production over a much longer period.
5. Prototype vs Production Injection Molding Cost
Cost is one of the first things buyers consider when comparing prototype vs production injection molding.
Prototype tooling usually requires a lower initial investment because the mold is designed for shorter production runs and faster development.
The cost advantages may include:
- Lower initial tooling investment
- Faster development
- Easier design modifications
- Lower financial risk during product validation
However, a lower mold price does not always mean a lower total project cost.
If the product design is still changing, building an expensive production mold too early can create additional engineering and modification costs.
Production Mold Cost
Production tooling normally requires a higher initial investment because it may include:
- Higher-grade mold steel
- More complex mold construction
- Multiple cavities
- Advanced cooling
- Hot runner systems
- Tight machining tolerances
- Longer expected tool life
However, the higher initial tooling cost can make sense when production quantities are large.
For example, a production mold with multiple cavities may have a higher upfront cost but produce more parts per cycle and reduce the cost per part over time.
Prototype vs Production Injection Molding Cost Comparison
| Cost Factor | Prototype Injection Molding | Production Injection Molding |
|---|---|---|
| Initial tooling cost | Lower | Higher |
| Mold material | Aluminum or softer steel may be suitable | Production-grade tool steel |
| Design modifications | Usually easier | More expensive after completion |
| Best production volume | Low to moderate | Medium to high |
| Cost per part at low volume | Generally higher | Higher initial tooling investment |
| Cost per part at high volume | Less economical | More economical |
Therefore, buyers should evaluate the total tooling and production cost, rather than comparing mold quotations based only on the initial price.
6. Prototype vs Production Injection Molding: Lead Time
Lead time is another important consideration.
If you have a product launch deadline, the difference between prototype and production tooling can affect your entire development schedule.

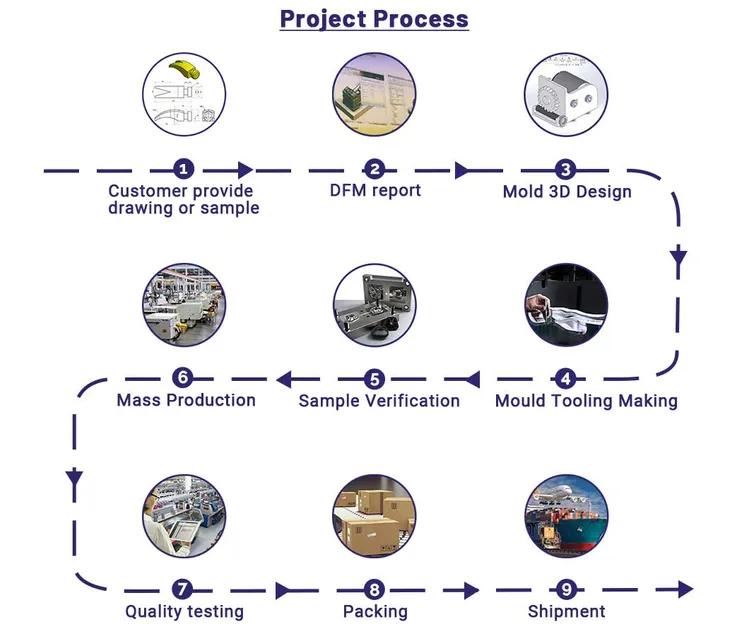

Prototype Injection Molding Lead Time
Prototype molds are generally designed to support faster product development.
A typical process includes:
- CAD and DFM review
- Mold design
- Tool manufacturing
- Mold trial
- Sample inspection
- Design adjustment if required
Because prototype tooling is often simpler, the development schedule can be shorter.
Prototype injection molding can be especially useful when:
- Functional samples are needed quickly
- Design changes are expected
- Product testing has a tight deadline
- You want to validate the part before production tooling
Production Mold Lead Time
Production molds usually require more detailed engineering and manufacturing work.
The process may include:
- Precision CNC machining
- EDM machining
- Heat treatment
- Mold polishing
- Cooling system optimization
- Mold assembly
- T1 trial
- Mold modification
- Final validation
As a result, production tooling normally requires more time than simple prototype tooling.
For projects with tight schedules, it is important to discuss the complete tooling timeline with the mold supplier rather than looking only at the machining time.
You can learn more about our Injection Mold Manufacturing process and capabilities.
7. Material Differences in Prototype and Production Injection Molding
One major advantage of prototype injection molding is that it can use production-grade plastic materials.
Common materials include:
- ABS
- PC
- PP
- PA / Nylon
- POM
- TPE
- HDPE
- Flame-retardant engineering plastics
Using the intended production material allows engineers to evaluate:
- Strength
- Impact resistance
- Flexibility
- Heat resistance
- Chemical resistance
- Surface appearance
- Assembly performance
This can provide more useful information than a prototype produced with a completely different material.
Material selection should therefore be considered before building either prototype or production tooling.
For example, if the final part will be molded from glass-filled nylon, testing a prototype with an unrelated material may not provide an accurate picture of the final part’s performance.
8. Tool Life and Production Volume
Tool life is an important factor that is sometimes overlooked when comparing prototype vs production injection molding.
A prototype mold is normally designed around the expected development quantity or low-volume requirement.
A production mold is designed to withstand repeated production cycles over a much longer period.
The required tool life depends on:
- Annual production volume
- Expected lifetime quantity
- Plastic material
- Part geometry
- Mold structure
- Mold steel selection
- Injection molding conditions
- Maintenance requirements
For example, a project requiring several hundred functional parts may not justify the same tooling investment as a project expected to produce hundreds of thousands of parts.
This is why buyers should provide both expected annual volume and estimated lifetime quantity when requesting a mold quotation.
The supplier can then recommend a more appropriate mold material, cavity configuration, cooling system, and tooling structure.
9. When Should You Choose Prototype or Production Injection Molding?
The decision should be based on the development stage rather than tooling price alone.
Choose Prototype Injection Molding When:
Prototype injection molding is usually more suitable when:
- The product design is still being improved
- Functional testing is required
- Assembly testing is needed
- Material performance needs to be confirmed
- Production quantities are relatively low
- Design changes are still possible
- You want to reduce production tooling risk
If the design has not been fully validated, building a production mold immediately can expose the project to unnecessary modification costs.
Choose Production Injection Molding When:
Production injection molding is generally more suitable when:
- The product design is finalized
- Material selection has been confirmed
- Functional testing is complete
- Production volume is high
- Long-term manufacturing is expected
- Stable quality is required
- Low cycle times are important
At this stage, the higher initial tooling investment can be justified by the expected production volume and tool life.
Prototype to Production: A Practical Decision Process
For many projects, prototype and production injection molding are not competing solutions.
They are two stages of the same product development process.
A typical workflow is:
| Development Stage | Recommended Solution |
|---|---|
| Initial design concept | 3D printing, CNC machining, or early prototype |
| Functional testing | Prototype injection molding |
| Design approval | Production mold development |
| Mass manufacturing | Production injection molding |
This approach allows engineers to identify problems before making a larger production tooling investment.
How Prototype Injection Molding Reduces Production Risk
Moving directly from a CAD design to production tooling can create unnecessary risk.
Potential problems include:
- Incorrect dimensions
- Assembly problems
- Warpage
- Sink marks
- Poor surface appearance
- Incorrect material selection
- Difficult ejection
- Insufficient draft
- Mold filling problems
Prototype injection molding provides an opportunity to identify these issues before the production mold is finalized.
During prototype validation, engineers can check:
- Actual part dimensions
- Assembly performance
- Material behavior
- Part appearance
- Functional performance
- Mold filling
- Ejection performance
- Potential production problems
This can make the transition from prototype to production much smoother.
Prototype vs Production Injection Molding: What Should Buyers Check?
Before choosing between prototype and production injection molding, buyers should provide the mold supplier with several key pieces of information.
1. What Is the Expected Production Volume?
Production quantity is one of the most important factors.
A small quantity may justify prototype tooling, while high-volume production normally requires production tooling.
2. Is the Part Design Final?
If major design changes are still expected, prototype tooling can reduce the risk of modifying an expensive production mold.
3. What Material Will Be Used?
Material affects shrinkage, cooling, ejection, mold steel selection, and overall mold design.
4. How Quickly Are Samples Required?
If functional samples are needed quickly, prototype tooling may help shorten the development schedule.
5. How Long Should the Mold Last?
Expected tool life should be discussed before the mold material and structure are selected.
6. Will the Prototype Become the Production Part?
If the prototype is intended to represent the final production part, discuss the transition to production tooling before starting the project.
7. What Is the Expected Lifetime Quantity?
Annual volume alone is not always enough. The expected lifetime quantity helps determine whether a higher-investment production mold is justified.
Common Mistakes When Choosing Prototype vs Production Injection Molding
Choosing Only Based on Mold Price
The cheapest mold quotation is not always the lowest-cost solution.
A low initial price may result in shorter tool life, additional modifications, or lower production efficiency.
Building a Production Mold Too Early
If the product design is still changing, production tooling can create expensive engineering changes.
Ignoring Future Production Volume
A prototype mold may work well for initial testing but may not be suitable for long-term production.
Expected volume should be discussed before choosing the mold material, cavity count, and tooling structure.
Treating Prototype Tooling as Only a Cost-Saving Option
The main value of prototype injection molding is not simply reducing tooling cost.
It is also about reducing development risk.
A successful prototype can help confirm the design before a much larger production tooling investment is made.
How Fentormold Supports Prototype to Production
The transition from prototype to production does not necessarily require different suppliers.
Fentormold supports plastic part development from prototype injection molding through production tooling and injection molding production.
Our services include:
- Prototype injection molding
- Custom injection mold manufacturing
- Low-volume injection molding
- Production mold manufacturing
- Injection molding production
- Mold components manufacturing
If you already have a 3D CAD file, our engineering team can review the part design, material, expected quantity, and target schedule before recommending a suitable tooling approach.
You can learn more about our Prototype Injection Molding service or Injection Molding Production capabilities.
Conclusion
Prototype vs production injection molding is not simply a choice between a cheaper mold and a more expensive mold.
The better choice depends on the product development stage, expected production volume, material, lead time, required tool life, and future manufacturing plans.
Prototype injection molding is useful when you need to:
- Validate the product design
- Test real molded parts
- Confirm material performance
- Check assembly
- Reduce production tooling risk
Production injection molding becomes more suitable when:
- The design is finalized
- Functional testing is complete
- Production volume is higher
- Long-term manufacturing is planned
- Consistent quality and cycle time are important
For many projects, the most practical approach is to use prototype injection molding first and move to production tooling after the design has been validated.
If you are unsure which option is right for your project, send us your 3D CAD file, material specification, expected production volume, and target schedule.
Our engineering team can review the project and recommend whether prototype or production tooling is more appropriate.
Contact Fentormold today for a free quotation and project evaluation.
FAQ About Prototype vs Production Injection Molding
What is the main difference between prototype vs production injection molding?
Prototype injection molding is mainly used for design validation, functional testing, and lower-volume production. Production injection molding is designed for long-term, higher-volume manufacturing.
Is prototype injection molding cheaper than production injection molding?
Prototype tooling usually has a lower initial cost. However, production injection molding can provide a lower cost per part when manufacturing larger quantities.
Can prototype injection molding use production materials?
Yes. Prototype molds can often be used with the same production-grade material planned for the final product. This allows engineers to evaluate actual material and part performance before mass production.
How many parts can a prototype mold produce?
There is no universal number. Tool life depends on the mold material, plastic material, mold design, processing conditions, and required production volume.
When should I move from prototype injection molding to production molding?
The transition normally makes sense after the part design, material, function, and assembly requirements have been validated and the expected production volume justifies production tooling.
Is a prototype mold necessary for every plastic part?
No. Simple products may be validated through 3D printing or CNC machining. A prototype mold becomes more valuable when functional injection molded parts, production-grade materials, or low-volume production are required.
