Guide pins, ejector pins, and sleeves are essential precision components in injection molds. They ensure accurate alignment, smooth ejection, and stable mold operation during high-volume production.
Even a small machining error in these components can cause mold misalignment, product defects, or premature wear. That is why CNC machining accuracy plays a critical role in their manufacturing.
In this guide, we explain their functions, machining tolerances, materials, and best practices for achieving high precision.
Why These Mold Components Are Critical
In injection molds, guide pins, ejector pins, and sleeves work together as a system:
- Guide pins ensure mold alignment
- Ejector pins push the molded part out
- Sleeves guide ejector pins and reduce friction
If any of these components fail or lose accuracy, it can cause:
- Mold sticking
- Part deformation
- Flash issues
- Misalignment between core and cavity
- Reduced mold lifespan
Mold Guide System Overview
CNC Machining of Guide Pins
Guide pins are used to ensure precise alignment between mold halves.
Key Requirements
- High straightness accuracy
- Excellent surface finish
- Tight dimensional tolerance
- Wear resistance
Typical Tolerances
- Diameter: h6 or h7
- Straightness: ≤0.01 mm
- Surface roughness: Ra 0.2–0.4
Materials
- SKD61 / H13
- SUJ2 bearing steel
- Hardened steel with coating (TiN, DLC)
CNC Machining of Ejector Pins
Ejector pins push the molded part out of the cavity after cooling.
Key Requirements
- Smooth surface finish to avoid marks
- High wear resistance
- Precise diameter control
- Good hardness after heat treatment
Typical Tolerances
- Diameter: h6 or h7
- Length tolerance: ±0.01–0.02 mm
- Roundness: ≤0.005 mm
Improper machining can lead to:
- Ejection marks on plastic parts
- Pin sticking
- Uneven ejection force
CNC Machining of Ejector Sleeves
Ejector sleeves are used when hollow or cylindrical ejection is required.
Key Requirements
- Concentricity with ejector pins
- High inner surface finish
- Low friction movement
- Precise inner diameter tolerance
Typical Tolerances
- Inner diameter: H7
- Concentricity: ≤0.01 mm
- Surface finish: Ra 0.2–0.4

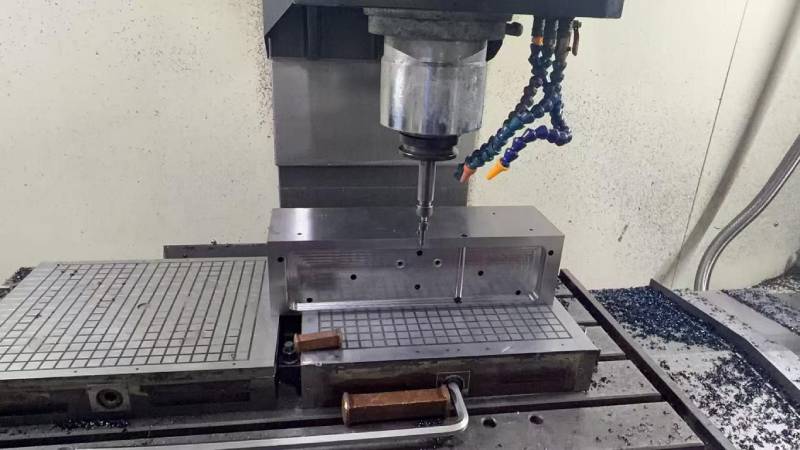

CNC Machined Pins
CNC Machining Process for Pins and Sleeves
The manufacturing process typically includes:
1. CNC Turning
Rough shaping of pins and sleeves.
2. Heat Treatment
Improves hardness and wear resistance.
3. Grinding
Achieves final precision tolerance and surface finish.
4. Polishing
Reduces friction and improves mold life.
5. Inspection
Using micrometer, CMM, and plug gauges.
Common Problems in Machining
- Out-of-round diameter
- Poor surface finish
- Incorrect hardness after heat treatment
- Concentricity deviation
- Excessive clearance or tight fit
These issues directly affect mold performance and product quality.
How to Ensure High Precision
To achieve stable CNC machining quality:
- Use high-grade tool steel
- Apply proper heat treatment process
- Maintain strict grinding control
- Use precision measuring equipment
- Ensure correct tolerance matching between pin and sleeve
👉 Mold Components Manufacturing
https://www.fentormold.com/Components-Manufacturing/
👉 Injection Mold Systems
https://www.fentormold.com/Injection-Mold/
👉 Prototype Mold Development
https://www.fentormold.com/Prototype-Injection-Molding/
FAQ
What is the tolerance of ejector pins?
Usually h6 or h7 depending on mold precision requirements.
Why do ejector sleeves need high precision?
Because they guide the ejector pin and ensure smooth movement.
What materials are used for guide pins?
H13, SKD61, or bearing steel SUJ2 are commonly used.
Why are pins ground after CNC machining?
Grinding ensures final precision and surface finish.
✔ SUMMARY
Guide pins, ejector pins, and sleeves are critical components in mold operation. CNC machining accuracy directly affects mold performance, durability, and product quality.
Proper material selection, precision grinding, and strict tolerance control are essential for high-quality mold manufacturing.
