Why CNC Machining Tolerances Matter
Every injection mold consists of multiple precision components that must fit together perfectly.
If tolerances are too loose, problems may include:
- Flash on plastic parts
- Poor dimensional accuracy
- Misalignment of mold inserts
- Leakage in cooling channels
- Shortened mold life
However, overly tight tolerances increase machining time and cost without real benefit.
The key is to choose the right tolerance based on function.
What Is CNC Machining Tolerance?
A machining tolerance defines the allowable variation from a nominal dimension.
For example:
Nominal size: 50.000 mm
Tolerance: ±0.01 mm
Acceptable range: 49.990–50.010 mm
Even small variations can significantly affect mold assembly accuracy.
Typical CNC Tolerances for Mold Components
| Mold Component | Typical Tolerance |
|---|---|
| Mold Base | ±0.02 mm |
| Core Insert | ±0.01 mm |
| Cavity Insert | ±0.01 mm |
| Slider | ±0.005–0.01 mm |
| Lifter | ±0.01 mm |
| Guide Pin Hole | H7 |
| Guide Bushing | H7 |
| Ejector Pin Hole | H7 |
| Wear Plate | ±0.005 mm |
| Precision Ground Parts | ±0.002–0.005 mm |
Which Mold Components Require the Highest Accuracy?
Core and Cavity Inserts
Core and cavity inserts define the final geometry of the plastic part.
Any machining error may cause:
- Dimensional deviation
- Flash
- Sink marks
- Poor assembly fit
These parts are often finished by grinding or EDM after CNC machining.
👉 Related service:
https://www.fentormold.com/Injection-Mold/
Sliders and Lifters
Sliders and lifters operate in every molding cycle.
Poor accuracy may result in:
- Movement resistance
- Excess wear
- Oil leakage
- Reduced mold lifespan
Proper clearance is more important than extreme tight tolerances.
👉 Related manufacturing process:
https://www.fentormold.com/Components-Manufacturing/
Guide Pins and Bushings
Guide systems ensure accurate alignment between core and cavity.
Even small deviations may cause:
- Parting line mismatch
- Insert damage
- Mold wear issues
H7 tolerance is commonly used for guide hole systems.
👉 Prototype validation stage:
https://www.fentormold.com/Prototype-Injection-Molding/

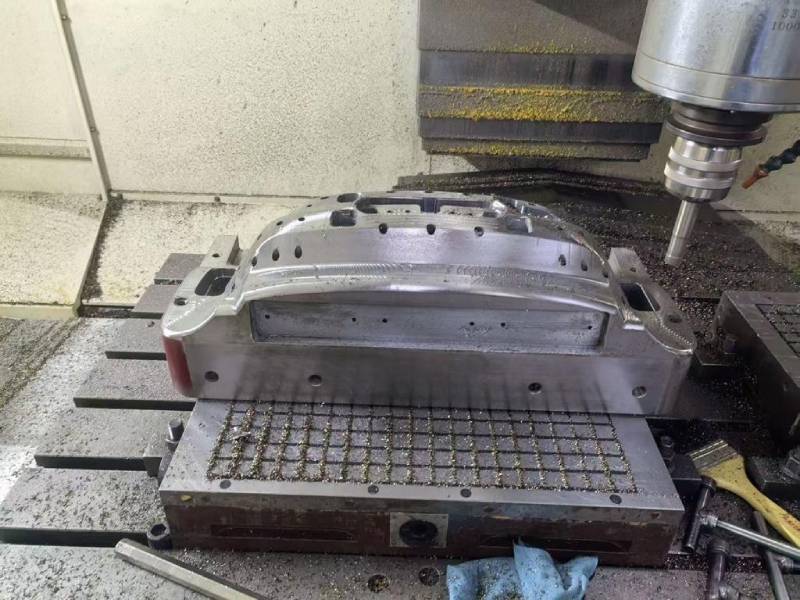

CNC Machining
Factors Affecting CNC Machining Accuracy
Achieving tight tolerances depends on several factors:
Machine Capability
High-speed CNC machines offer better repeatability and stability.
Material Type
Different steels such as P20, H13, and S136 affect machining behavior.
Cutting Tools
Tool wear directly impacts dimensional accuracy.
Programming Strategy
Optimized toolpaths reduce vibration and deformation.
Inspection Equipment
CMM, micrometers, and pin gauges ensure final accuracy.
CMM Inspection
ALT: CMM inspection of CNC machined mold components
Title: Precision quality control using CMM inspection
Caption: CMM ensures all mold components meet strict CNC machining tolerance requirements.
ISO Standards and Mold Tolerance Control
Most general machining follows ISO 2768 standards, but precision mold components often require much tighter tolerances.
Unlike general mechanical parts, mold components require:
- Higher repeatability
- Better surface finish
- Tighter positional accuracy
This is why grinding and EDM are often used after CNC machining.
Cost vs Tolerance Balance
One of the most common mistakes in mold projects is over-specifying tolerances.
Tighter tolerance means:
- Higher machining cost
- Longer lead time
- More inspection effort
In many cases, functional tolerance is more important than ultra-precision.
Common CNC Tolerance Mistakes
- Specifying ±0.005 mm for non-functional parts
- Ignoring thermal expansion
- Wrong datum reference
- Over-designing tolerances without function analysis
FAQ
What is standard CNC machining tolerance for mold components?
Typically ±0.01 mm for precision parts, and ±0.02 mm for mold bases.
Why are mold inserts ground after CNC machining?
Grinding improves surface finish and ensures tighter dimensional accuracy.
What tolerance is used for guide pins?
H7 tolerance is commonly used for guide pin systems.
Can CNC achieve ±0.005 mm?
Yes, but only for small precision parts under controlled conditions.
✔ FINAL SUMMARY
CNC machining tolerances directly affect mold performance, cost, and product quality. Choosing the right tolerance level for each component is essential for successful mold manufacturing.
