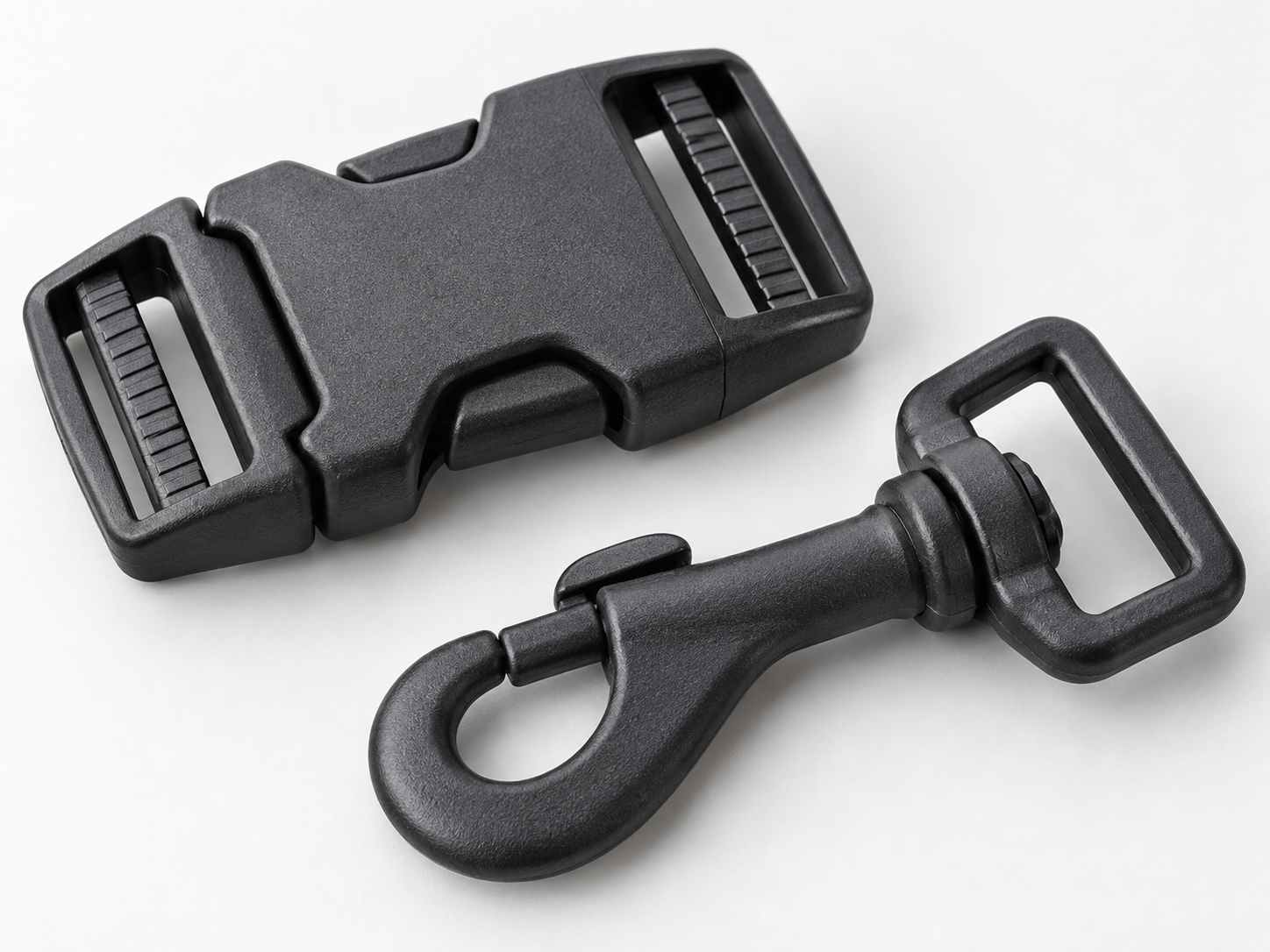

Glass-filled nylon injection molding offers high strength, stiffness, heat resistance, and dimensional performance. However, warpage is one of the most common problems when molding PA6 GF30, PA66 GF30, and other glass-fiber-reinforced nylon materials.
Unlike unfilled nylon, glass-filled grades do not shrink equally in every direction. Glass fibers tend to align with the melt flow. As a result, shrinkage along the fiber direction can differ from shrinkage across the fiber direction.
Therefore, reducing warpage requires more than adjusting injection pressure or cooling time.
Engineers must control the complete molding system, including:
- Part geometry
- Gate location
- Fiber orientation
- Cooling balance
- Packing
- Mold temperature
- Material drying
- Processing conditions
At Fentor Mold, we usually evaluate these factors together during DFM, mold design, and mold trial because warpage is often caused by several conditions acting at the same time.
Why Does Glass-Filled Nylon Injection Molding Cause Warpage?
Warpage happens when different areas of a molded part shrink by different amounts or in different directions.
In glass-filled nylon injection molding, this effect becomes more complicated because the glass fibers create directional shrinkage.
During filling, the fibers tend to follow the melt flow.
Therefore:
- Shrinkage along the flow direction may be lower.
- Shrinkage across the flow direction may be higher.
- Different flow patterns can create different local shrinkage.
- Uneven cooling can increase the difference further.
For example, a long rectangular part filled from one end may develop strong fiber alignment along its length.
If the opposite side cools at a different rate, the part may bend or twist after ejection.
This is why warpage in glass-filled nylon is often related to both fiber orientation and thermal imbalance.
Glass-Filled Nylon Injection Molding: Main Causes of Warpage
| Cause | Why It Creates Warpage |
|---|---|
| Fiber orientation | Creates directional shrinkage |
| Poor gate location | Produces uneven flow and fiber direction |
| Uneven wall thickness | Creates different cooling and shrinkage rates |
| Unbalanced cooling | One area shrinks more than another |
| Low packing pressure | Causes uncontrolled shrinkage |
| Excessive packing | Can create internal stress |
| Incorrect mold temperature | Creates unstable cooling conditions |
| Poor material drying | Can affect viscosity and dimensional stability |
| Early ejection | Part deforms while still too hot |
| Weak part design | Large flat areas and asymmetric ribs can distort |
In practice, one part may have several of these problems at the same time.
Therefore, engineers should avoid changing molding parameters randomly.
How Fiber Orientation Affects Warpage
Fiber orientation is one of the most important factors in glass-filled nylon injection molding.
When molten plastic flows through the cavity, the glass fibers rotate and align with the flow.
However, fiber orientation is not uniform throughout the wall thickness.
Near the mold surface, fibers often follow the local flow direction more strongly. Meanwhile, the center layer may have a different orientation pattern.
This creates different shrinkage behavior across the part.
Example: Long Flat Housing
Imagine a long PA66 GF30 housing with a gate at one end.
The melt flows mainly in one direction. Therefore, most fibers also align with that direction.
The part may shrink differently along its length and width.
As a result, the housing can curve after ejection.
Increasing cooling time may reduce the deformation slightly. However, it may not remove the root cause because the fiber orientation pattern is still unchanged.
Gate Location Can Reduce Glass-Filled Nylon Warpage
Gate design has a major effect on fiber orientation.
Therefore, gate location should be reviewed early during injection mold design.
A poor gate position can create:
- Strong one-directional fiber orientation
- Unbalanced filling
- Uneven pressure distribution
- Weld lines
- Air traps
- Uneven packing
- Local warpage
For example, gating a wide flat part from one corner may create a diagonal flow pattern.
This can cause uneven fiber orientation across the part.
Instead, a better gate position may create a more balanced flow front.
Multiple Gates
For large parts, multiple gates can sometimes reduce flow length.
However, they can also create weld lines and complex fiber orientation.
Therefore, adding more gates does not automatically reduce warpage.
The final gate strategy should consider:
- Part shape
- Cosmetic surfaces
- Critical dimensions
- Weld-line location
- Flow length
- Fiber orientation
- Packing balance
For difficult parts, Moldflow analysis can help predict the filling pattern before steel cutting.
Glass-Filled Nylon Injection Molding Needs Balanced Cooling
Cooling has a strong effect on final part shape.
Even if the fiber orientation is acceptable, uneven mold temperature can still create warpage.
For example, one side of the mold may contain a deep core while the opposite side has a simple cavity surface.
The deep core may remain hotter.
As a result, that section cools more slowly and continues shrinking for longer.
The part can then bend toward one side.
Check Cooling Around:
- Deep cores
- Thick bosses
- Ribs
- Inserts
- Slides
- Lifters
- Large flat areas
- Thick wall sections
Cooling channels should follow the part geometry as closely as practical.
In addition, water flow should be stable and balanced between circuits.
A mold with many cooling lines is not automatically well cooled. The important point is whether the heat is removed evenly.
For glass-filled materials, reliable injection mold manufacturing is especially important because gate design, cooling layout, steel selection, and machining accuracy can all affect final warpage and dimensional stability.
Keep Wall Thickness as Uniform as Possible
Uneven wall thickness is another major cause of warpage.
Thick areas cool more slowly than thin areas.
Therefore, the thick area may continue shrinking after the thin area has already become rigid.
With glass-filled nylon, fiber orientation can make this difference even stronger.
Common problem areas include:
- Thick bosses
- Large ribs
- Thick mounting pads
- Sudden wall transitions
- Thick corners
- Reinforced screw areas
During DFM, engineers should reduce unnecessary thickness changes where possible.
For example, a thick boss can often be cored out while maintaining the required strength.
This reduces material concentration and improves cooling.
How Packing Pressure Affects Warpage
Packing pressure controls how much additional material enters the cavity after initial filling.
If packing is too low, the part may show:
- Excessive shrinkage
- Sink marks
- Dimensional variation
- Warpage
However, excessive packing is not always better.
Too much packing can create:
- High internal stress
- Flash
- Uneven stress distribution
- Difficult ejection
- Distortion after release
Therefore, the goal is to create a stable packing condition rather than simply increase pressure.
In glass-filled nylon injection molding, the gate must remain open long enough for effective packing.
Once the gate freezes, additional holding pressure has little effect on the cavity.
Mold Temperature Should Be Stable
Mold temperature affects flow, surface quality, crystallization, shrinkage, and dimensional stability.
If mold temperature is too low, the material may freeze too quickly.
As a result:
- Filling becomes harder.
- Surface quality may drop.
- Weld lines may become more visible.
- Internal stress may increase.
On the other hand, very high mold temperature can increase cooling time.
The most important factor is stability.
Both mold halves should operate under controlled conditions.
Large temperature differences between cavity areas can increase warpage even when the average mold temperature appears correct.
Dry Glass-Filled Nylon Correctly Before Molding
Nylon absorbs moisture easily.
Therefore, drying is important before molding.
If the resin contains too much moisture, processing can become less stable.
Possible problems include:
- Silver streaks
- Surface defects
- Reduced material performance
- Changes in viscosity
- Poor dimensional consistency
However, drying conditions depend on the exact material grade.
Therefore, processors should follow the resin supplier’s recommended drying temperature and time.
Material should also be protected from moisture after drying.
For longer production runs, a closed material handling system can help maintain stable moisture conditions.
Glass-Filled Nylon Injection Molding: Injection Speed Matters
Injection speed affects both filling behavior and fiber orientation.
Very slow filling may create:
- Early freezing
- Higher pressure requirements
- Poor surface finish
- Unstable weld lines
However, very high injection speed may increase:
- Shear
- Fiber orientation
- Air traps
- Burning
- Flash
Therefore, injection speed should provide stable filling without creating excessive stress.
For complex parts, a multi-stage injection speed profile may work better than one constant speed.
For example, the machine can fill quickly through the main cavity and then slow down near the end of filling.
How Part Design Can Reduce Warpage
Mold processing cannot solve every warpage problem.
Sometimes the product geometry itself creates unstable shrinkage.
Problem features may include:
- Very large flat surfaces
- Asymmetric ribs
- Uneven wall thickness
- Thick bosses on one side
- Long unsupported walls
- Uneven reinforcement
- Poor gate accessibility
Before mold manufacturing starts, engineers should review whether the part can be made more balanced.
For example, adding properly designed ribs can increase stiffness.
However, ribs should not be concentrated only on one side without considering shrinkage.
Likewise, changing rib direction may affect both part strength and warpage.
PA6 GF30 vs PA66 GF30 Warpage
Both PA6 GF30 and PA66 GF30 can show directional shrinkage.
However, the exact behavior depends on:
- Resin grade
- Glass fiber percentage
- Fiber length
- Additives
- Mold temperature
- Part geometry
- Processing conditions
Therefore, engineers should not use one shrinkage value for every glass-filled nylon grade.
The resin supplier’s technical data should be reviewed first.
Then, mold shrinkage should be adjusted based on actual part geometry and flow direction.
For precision components, it is often necessary to measure T0 or T1 samples before making final steel corrections.
Common Warpage Problems and Solutions
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| Part bends lengthwise | Fiber orientation | Gate position and flow direction |
| One corner lifts | Cooling imbalance | Water circuit and local mold temperature |
| Large flat surface twists | Uneven orientation | Gate and part structure |
| Dimensions drift | Mold temperature or material condition | Cooling and resin drying |
| Boss area pulls inward | Thick local section | Wall thickness and packing |
| Part bends after 24 hours | Residual stress | Packing, cooling, conditioning |
| Multi-cavity parts warp differently | Filling imbalance | Runner and gate balance |
This table should be used as a starting point.
However, the actual root cause should be confirmed during mold trials.
Do Not Fix Every Warpage Problem With More Cooling Time
Increasing cooling time is one of the most common reactions to warpage.
Sometimes it works.
However, it can also hide the real problem.
For example, if warpage comes from:
- Wrong gate location
- Strong fiber orientation
- Uneven cavity pressure
- Poor cooling layout
- Part geometry
then adding another 10 seconds of cooling may only reduce the symptom.
The part may still become unstable when production moves to another machine or when cycle time needs to be reduced.
Therefore, engineers should identify the root cause first.
For projects that continue into mass production, stable injection molding production is also important because glass-filled nylon parts require consistent material drying, mold temperature, packing, cooling, and process repeatability.
Moldflow Can Help Before Mold Manufacturing
For difficult glass-filled nylon parts, simulation can provide useful information before the mold is built.
A Moldflow study may help evaluate:
- Filling pattern
- Fiber orientation
- Weld lines
- Pressure
- Packing
- Temperature
- Warpage tendency
However, simulation should support engineering decisions rather than replace actual mold trials.
Real material behavior, machine performance, cooling conditions, and part measurement still need physical validation.
A good approach is:
DFM → Moldflow → mold design → T0 → measurement → targeted correction
This reduces the risk of making several expensive mold changes after the first trial.
Checklist to Reduce Warpage in Glass-Filled Nylon Injection Molding
Before approving mold production, review the following:
| Check Item | Status |
|---|---|
| Wall thickness is reasonably uniform | ☐ |
| Gate location has been reviewed | ☐ |
| Fiber orientation has been considered | ☐ |
| Cooling is balanced | ☐ |
| Deep cores have sufficient cooling | ☐ |
| Material drying is controlled | ☐ |
| Mold temperature is stable | ☐ |
| Packing is optimized | ☐ |
| Injection speed is stable | ☐ |
| CTQ dimensions are defined | ☐ |
| Warpage measurement method is defined | ☐ |
| Moldflow is completed if needed | ☐ |
This checklist can help reduce repeated mold trials and dimensional corrections.
Conclusion
Warpage in glass-filled nylon injection molding is rarely caused by one parameter alone.
The main factors are usually:
- Fiber orientation
- Gate location
- Cooling balance
- Wall thickness
- Packing
- Mold temperature
- Material drying
- Product geometry
Most importantly, engineers should avoid treating warpage only as a molding-machine problem.
If the fiber orientation, gate design, cooling system, or part structure is wrong, changing pressure and cooling time may only provide a temporary improvement.
At Fentor Mold, we review part geometry, gate location, cooling, mold structure, and molding conditions before and during mold trials. For PA6 GF30, PA66 GF30, and other glass-filled engineering plastics, controlling these factors early can reduce warpage and improve dimensional stability in mass production.
