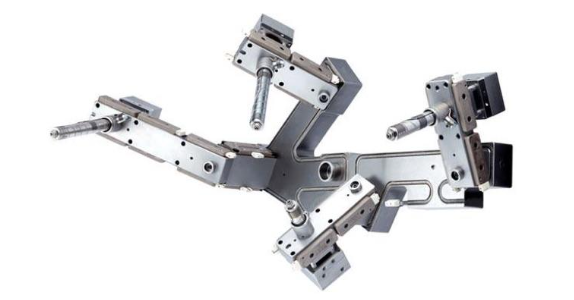

A hot runner system can run for a long time with stable production if engineers install, operate, and maintain it correctly.
However, problems can still occur.
Common issues include leaking, stringing, drooling, blocked nozzles, unstable temperatures, and valve pin problems.
Most problems have a clear cause. Finding the cause before changing components can save time and reduce downtime.
For reliable injection mold manufacturing, Fentor Mold focuses on both mold design and long-term production stability.
1. Hot Runner Leakage
Hot runner leakage is one of the most serious problems.
Molten plastic may leak between:
- Manifold and nozzle
- Nozzle and mold insert
- Hot runner components
Common Causes
- Incorrect assembly
- Poor thermal expansion design
- Damaged sealing surfaces
- Incorrect installation
- Incorrect temperature
Large temperature changes can also affect component expansion.
How to Prevent It
Use the correct installation procedure and check the hot runner components during mold maintenance.
Do not simply tighten components harder when a leak occurs. Find the real cause first.
2. Stringing
Stringing occurs when a thin strand of plastic remains at the gate after the mold opens.
It can cause:
- Gate appearance problems
- Mold contamination
- Automatic production problems
Common Causes
- Melt temperature too high
- Gate temperature too high
- Poor gate design
- Material characteristics
- Open gate structure
A valve gate can reduce stringing because the valve pin physically closes the gate.
3. Drooling
Drooling means molten plastic continues to flow from the nozzle after injection.
It can contaminate the mold and affect the next cycle.
Common causes include:
- Excessive temperature
- Poor gate shut-off
- Material degradation
- Incorrect processing conditions
A valve gate usually provides better shut-off than an open gate.
4. Hot Runner Nozzle Blockage
A blocked nozzle can cause:
- Short shots
- High injection pressure
- Uneven filling
- No material flow
Possible causes include:
- Material degradation
- Contamination
- Incorrect temperature
- Long machine downtime
- Sensitive engineering plastics
Before cleaning the nozzle, confirm the material and manufacturer’s recommended cleaning procedure.
Do not use excessive force to remove hardened plastic.
5. Unstable Temperature
Temperature instability can create inconsistent molding quality.
You may see:
- Different filling times
- Color changes
- Short shots
- Material degradation
- Fluctuating injection pressure
Check These Components
- Heater
- Thermocouple
- Wiring
- Temperature controller
- Electrical connections
A damaged thermocouple can give incorrect temperature feedback.
6. Valve Pin Problems
Valve gate systems use moving valve pins.
If the pin does not move correctly, the gate may not open or close properly.
Possible causes include:
- Incorrect air pressure
- Incorrect hydraulic pressure
- Pin contamination
- Pin wear
- Mechanical damage
- Incorrect installation
For pneumatic systems, check the air supply and actuator.
For hydraulic systems, check the hydraulic pressure and control system.
7. Gate Mark Problems
A hot runner does not automatically guarantee a perfect gate mark.
Gate appearance depends on:
- Gate diameter
- Gate design
- Valve pin
- Plastic material
- Mold temperature
- Injection speed
- Cooling
If the gate mark becomes too large or uneven, inspect the gate and valve pin before changing molding parameters.
8. Short Shot
A short shot means the cavity does not fill completely.
A hot runner system can contribute to a short shot when:
- Nozzle temperature is too low
- Nozzle is blocked
- Heater has failed
- Gate is too small
- Flow resistance is too high
But the problem may also come from the injection machine, mold venting, or product design.
Check the complete molding process instead of blaming the hot runner immediately.
9. Burn Marks and Material Degradation
Excessive temperature or long residence time can degrade some plastics.
You may see:
- Black spots
- Burn marks
- Color changes
- Gas
- Unstable material flow
This is especially important for temperature-sensitive materials.
Check the hot runner temperature and residence time.
Also avoid keeping sensitive materials at high temperature for too long.
10. Hot Runner Maintenance
Regular maintenance can prevent many problems.
Check the following during mold maintenance:
Heaters
Check heater resistance and condition.
Thermocouples
Make sure they provide stable temperature feedback.
Wiring
Inspect connectors and wires for damage.
Nozzles
Check the nozzle tip and gate area.
Valve Pins
Check movement, wear, and sealing.
Manifold
Inspect sealing surfaces and signs of leakage.
For more information about Fentor Mold’s mold manufacturing and engineering services, contact our team for support with new mold projects.
Preventive Maintenance Checklist
A simple maintenance routine can include:
- Check heater resistance
- Check thermocouple signals
- Inspect wiring
- Check nozzle condition
- Check valve pin movement
- Clean the gate area
- Check for leakage
- Check temperature stability
- Inspect the manifold during major mold maintenance
The exact maintenance interval depends on the material, production volume, mold design, and hot runner manufacturer.
Troubleshooting by Symptom
| Problem | Possible Causes |
|---|---|
| Leakage | Expansion, assembly, sealing |
| Stringing | Temperature, gate design, material |
| Drooling | Temperature, gate shut-off |
| Short Shot | Blockage, low temperature, venting |
| Burn Marks | High temperature, trapped air |
| Large Gate Mark | Gate design, pin, molding conditions |
| Unstable Temperature | Heater, thermocouple, controller |
| Valve Pin Failure | Air/hydraulic pressure, wear, contamination |
This table provides a starting point. Always check the complete system before replacing components.
How to Reduce Hot Runner Downtime
The best troubleshooting method is prevention.
Use the Correct Material
Make sure the hot runner system suits the plastic.
Control Temperature
Avoid unnecessary temperature increases.
Keep the System Clean
Remove degraded material before it creates a larger problem.
Monitor Production
Record temperature, pressure, cycle time, and common defects.
Maintain Valve Gates
Check valve pin movement before problems become serious.
Conclusion
Most hot runner problems come from a combination of temperature, material, gate design, assembly, and maintenance.
Do not replace parts without identifying the cause.
A good troubleshooting process starts with the simplest checks:
Temperature → Heater → Thermocouple → Flow → Gate → Valve Pin → Assembly
Regular maintenance can prevent many expensive production problems.
For new molds, good design also plays an important role. At Fentor Mold, we consider hot runner layout, gate design, mold cooling, material behavior, and production requirements when developing injection molds.
FAQ
Why does a hot runner leak?
Common causes include incorrect assembly, thermal expansion, damaged sealing surfaces, or incorrect operating conditions.
Why does a hot runner nozzle string?
High temperature, gate design, material characteristics, and open gate structures can all cause stringing.
Why does the hot runner nozzle drool?
Excessive temperature, material degradation, or poor gate shut-off can cause drooling.
What causes a hot runner blockage?
Material degradation, contamination, incorrect temperature, or long periods of downtime can cause blockage.
How often should a hot runner be maintained?
There is no universal interval. Maintenance depends on the material, production volume, mold design, and hot runner system.
Can valve gates reduce hot runner problems?
Valve gates can reduce problems such as stringing and drooling, but they also add moving components that require proper maintenance.
What should I check first when a hot runner stops working?
Start with the temperature controller, heater, thermocouple, wiring, and material flow. Then check the nozzle, gate, and valve pin if necessary.
