Key Takeaways
- Injection molding cost depends on tooling investment, material selection, production volume, cycle time, and manufacturing requirements.
- Mold cost is usually the largest upfront expense, but high production volume can significantly reduce the cost per part.
- Material selection and part design directly affect both tooling complexity and production efficiency.
- A DFM review before mold manufacturing helps identify cost risks and avoid expensive design changes.
- Working with an experienced injection molding supplier can improve cost accuracy and reduce manufacturing risks.
Introduction
Estimating Injection Molding Cost before production helps companies make better decisions about product design, tooling investment, and manufacturing strategy.
The final cost of an injection molded part is not determined only by the mold price. It also depends on material selection, part complexity, production volume, cycle time, quality requirements, and secondary operations.
For example, a high-volume project may require a more expensive steel mold, but the tooling cost can be distributed across hundreds of thousands of parts. As a result, the final unit cost can become much lower than a low-volume project using a cheaper mold.
Before starting mold manufacturing, engineers usually evaluate:
- Part design complexity
- Required material performance
- Expected production quantity
- Mold structure and cavity number
- Surface finish and tolerance requirements
In actual mold production, many unnecessary costs come from design issues discovered after tooling begins. A professional DFM (Design for Manufacturing) review can identify potential problems early and optimize the manufacturing approach.
At Fentormold, we help customers evaluate tooling options, optimize part design, manufacture injection molds, and provide production solutions based on project requirements.
Learn more about our injection molding solutions:
What Is Injection Molding Cost Estimation?
Injection molding cost estimation is the process of predicting the total manufacturing cost of producing plastic parts before production begins.
Unlike CNC machining or 3D printing, injection molding requires an initial mold investment. Therefore, cost estimation must consider both upfront tooling expenses and long-term production costs.

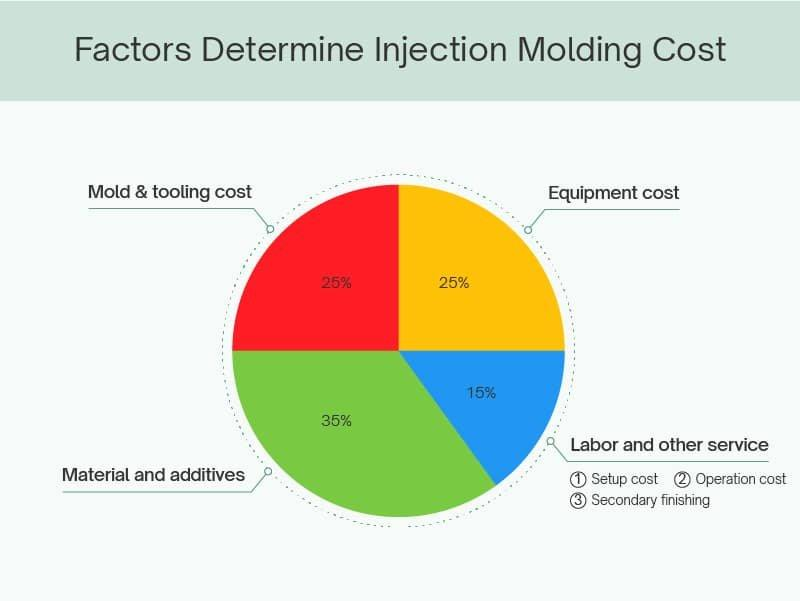

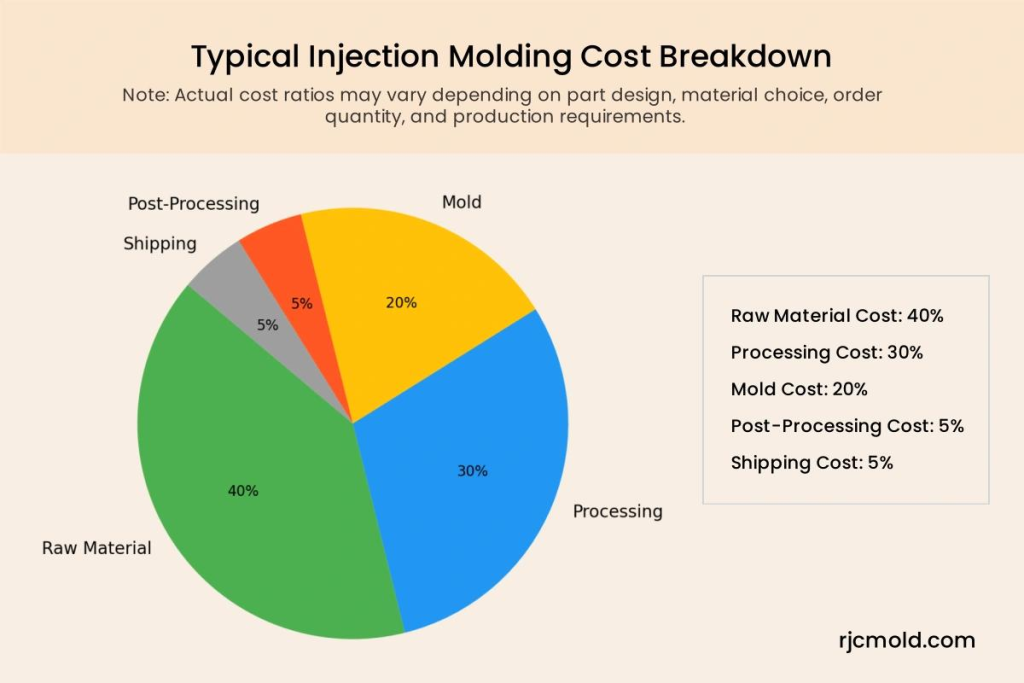

The total Injection Molding Cost usually includes:
| Cost Factor | Description |
|---|---|
| Mold Cost | Tooling design, machining, testing, and validation |
| Material Cost | Plastic resin required for each part |
| Machine Cost | Injection machine operation time |
| Labor Cost | Setup, inspection, and production monitoring |
| Secondary Operations | Assembly, painting, printing, or finishing |
A correct estimate allows companies to select the most suitable manufacturing solution before investing in tooling.
For example:
- Prototype projects may prioritize lower tooling cost.
- Medium-volume projects may require a balance between mold investment and unit cost.
- High-volume production usually focuses on reducing long-term part cost.
How to Calculate Injection Molding Cost?
A basic injection molding cost calculation can be divided into several parts.
Injection Molding Cost Formula
Total Production Cost =
Mold Cost + Material Cost + Machine Cost + Labor Cost + Secondary Processing Cost
The estimated cost per part is:
Cost Per Part = Total Production Cost ÷ Total Production Quantity
However, each project requires different calculations.
A simple plastic component may mainly depend on:
- Material weight
- Cycle time
- Production quantity
A complex automotive component may also include:
- Multi-cavity tooling
- Mold slides or lifters
- Tight tolerances
- Special surface finishes
- Additional inspection requirements
Therefore, an accurate quotation requires both product design review and manufacturing experience.
Main Factors Affecting Injection Molding Cost
The final Injection Molding Cost depends on several technical and business factors. Understanding these factors before production helps companies avoid unexpected expenses and choose the right manufacturing strategy.
1. Mold Design and Tooling Requirements
Mold cost is usually the largest upfront investment in injection molding projects.
However, the most expensive mold is not always the best choice. The correct tooling solution depends on:
- Expected production volume
- Required mold life
- Part complexity
- Material selection
- Surface finish requirements
For example:
A prototype project with a few thousand parts may use aluminum tooling or soft steel molds to reduce initial investment.
A high-volume automotive project may require hardened steel molds designed for hundreds of thousands or millions of cycles.
In actual mold manufacturing, many cost problems come from unnecessary complexity in the initial design stage. Features such as excessive undercuts, tight tolerances, or complicated parting lines can increase machining time and tooling cost.
A professional DFM review before mold manufacturing can identify these risks early.
Learn more about injection mold design:
Injection Mold Design Guide: Process, Tips & Best Practices
How Mold Features Influence Cost
| Mold Factor | Cost Impact |
|---|---|
| Number of cavities | More cavities increase tooling cost but reduce part cost |
| Mold steel selection | Higher-grade steel improves mold life but increases investment |
| Side actions | Slides and lifters increase mold complexity |
| Surface finish | Texture, polishing, and cosmetic requirements affect machining time |
| Tolerance requirements | Tight tolerances require more precise manufacturing |
For example:
A single-cavity mold may have a lower initial cost, but a multi-cavity mold can become more economical for high-volume production because it produces more parts per cycle.
2. Material Selection and Part Requirements
Material selection directly affects both product performance and manufacturing cost.
Common injection molding materials include:
- ABS
- PP
- PC
- Nylon (PA)
- TPU
- HDPE
Different materials have different prices and processing requirements.
| Material | Main Advantage | Typical Applications |
|---|---|---|
| PP | Low cost, chemical resistance | Automotive parts, containers |
| ABS | Good appearance and balance of properties | Electronic housings, consumer products |
| PC | High impact strength and transparency | Safety covers, optical parts |
| Nylon | High mechanical strength and wear resistance | Engineering components |
Material cost depends on:
- Resin price
- Part weight
- Additives
- Glass fiber reinforcement
- Required performance
For example:
A glass-filled nylon component may cost more than a standard PP part because it requires higher material cost and may also require special mold considerations.
Choosing the highest-performance material is not always the best solution. The goal is to select the material that meets the product requirements without unnecessary cost.
Related article:
10 Best Injection Molding Materials for High Quality Parts
3. Production Volume and Cost Per Part
Production volume is one of the most important factors affecting injection molding economics.
The same plastic part can have very different unit costs depending on annual production quantity.
| Production Volume | Recommended Tooling Strategy | Cost Characteristics |
|---|---|---|
| 100–1,000 pcs | Prototype mold or soft tooling | Lower investment, higher unit cost |
| 5,000–50,000 pcs | Aluminum or production steel mold | Balanced tooling and production cost |
| 100,000+ pcs | Production steel mold | Higher initial cost, lowest part cost |
For low-volume production, companies usually focus on reducing upfront tooling expenses.
For mass production, the priority changes to:
- Faster cycle time
- More cavities
- Longer mold life
- Lower labor cost
This is why experienced suppliers do not only quote mold prices. They evaluate the total project cost throughout the product lifecycle.

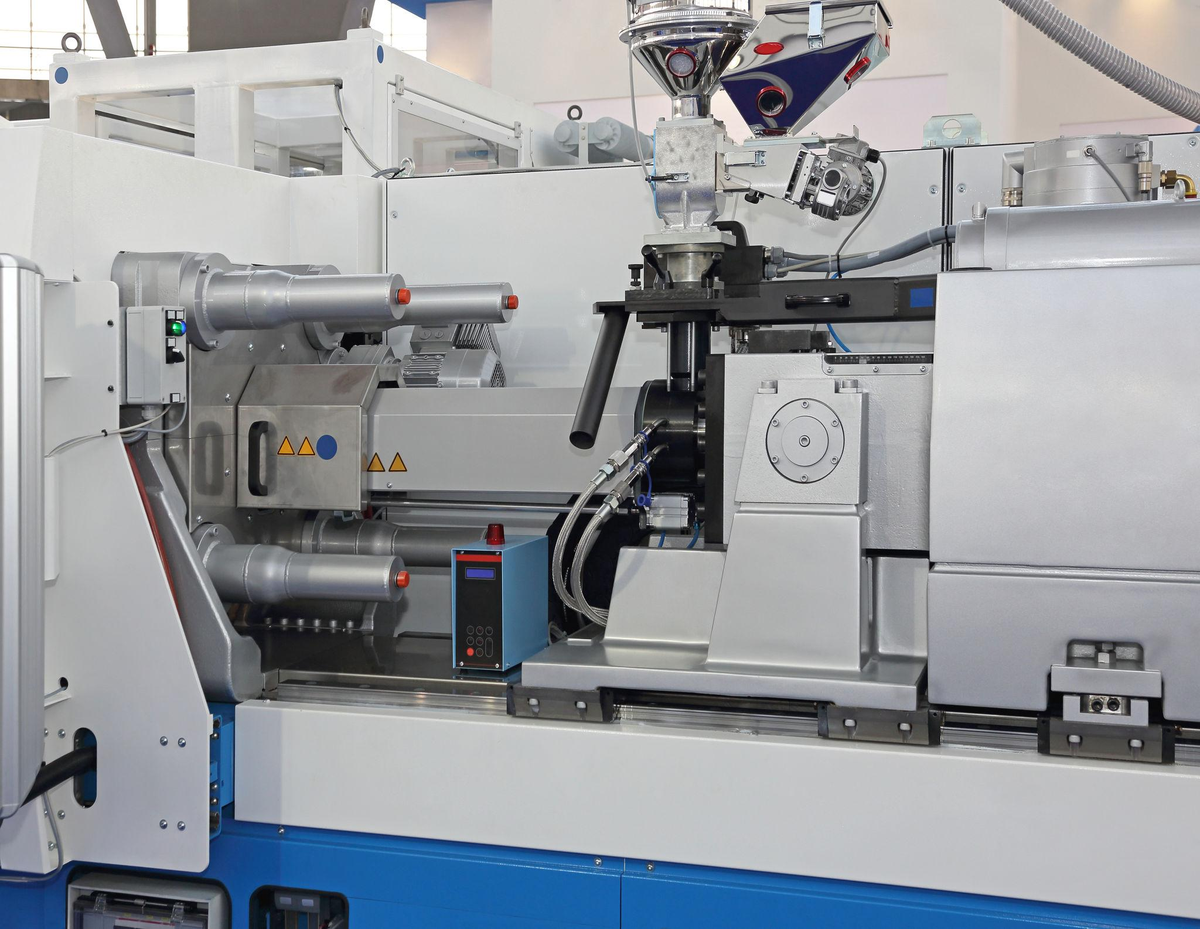

4. Machine Cost and Cycle Time
Injection molding machine cost is mainly determined by production time.
The key factors include:
- Machine size
- Injection pressure requirements
- Cycle time
- Energy consumption
- Production efficiency
Typical injection molding cycle times range from 15 seconds to several minutes, depending on:
- Part size
- Wall thickness
- Plastic material
- Cooling system design
A shorter cycle time can significantly reduce production cost during mass manufacturing.
For example:
A part with a 30-second cycle time can produce twice as many parts as a similar part requiring a 60-second cycle time during the same production period.
Good mold cooling design helps:
- Reduce cycle time
- Improve dimensional stability
- Increase production efficiency
Related article:
Injection Mold Cooling System Design: Essential Tips for Better Results
5. Labor and Secondary Processing Costs
Although injection molding is highly automated, labor and additional processes still influence total cost.
Common additional costs include:
Machine Setup
Before production begins, technicians need to:
- Install the mold
- Set machine parameters
- Verify initial samples
Quality Inspection
Depending on requirements, manufacturers may perform:
- Dimensional inspection
- Appearance inspection
- Functional testing
- CMM measurement
Secondary Operations
Some products require additional processes:
- Assembly
- Printing
- Painting
- Ultrasonic welding
- Packaging
A low molding price does not always mean a low total project cost. Additional operations should be considered during the quotation stage.
Injection Molding Cost Calculation Example
To better understand how Injection Molding Cost is estimated, consider a simple production example.
Assume a customer needs a plastic housing with the following requirements:
| Project Requirement | Example Value |
|---|---|
| Part material | ABS |
| Part weight | 50g |
| Production volume | 100,000 pcs |
| Mold type | Steel production mold |
| Cycle time | 40 seconds |
| Cavity number | 2 cavities |
The estimated cost can be divided into several parts:
1. Material Cost
Material cost depends on:
- Part weight
- Resin price
- Material waste rate
For a 50g ABS part, the material cost is calculated based on:
Part weight × Material price × Production quantity
Using the correct material grade can prevent unnecessary cost increases.
2. Mold Amortization Cost
The mold is an upfront investment, but it is usually distributed across the production quantity.
For example:
A $20,000 mold producing:
- 10,000 parts
has a higher tooling cost per part than:
- 100,000 parts
because the investment is divided across fewer units.
This is why production volume has a major impact on final pricing.
3. Machine and Production Cost
Machine cost depends on:
- Injection cycle time
- Machine size
- Production efficiency
A shorter cycle time and optimized mold design can reduce the cost per component.
4. Quality and Additional Operations
Some projects require:
- Strict dimensional control
- Cosmetic inspection
- Assembly
- Packaging
These requirements should be included during the initial quotation stage.
A complete cost estimate considers the entire manufacturing process rather than only the injection molding operation.
How to Reduce Injection Molding Cost Before Production
Reducing injection molding cost does not always mean choosing the cheapest supplier or the lowest material price.
The most effective cost reductions usually come from better engineering decisions before production.
1. Optimize Part Design
A good part design can reduce:
- Mold complexity
- Machining time
- Cycle time
- Defect risks
Recommended practices include:
- Maintain uniform wall thickness
- Avoid unnecessary undercuts
- Reduce complicated features
- Use proper draft angles
Poor design decisions often create additional tooling changes after mold manufacturing begins.
2. Select the Right Mold Strategy
Choosing the correct tooling approach depends on production requirements.
For example:
- Prototype stage → lower-cost prototype tooling
- Medium production → aluminum or standard steel mold
- Mass production → hardened steel production mold
A supplier should recommend the best balance between:
- Initial investment
- Mold life
- Unit cost
3. Use DFM Review Before Tooling
A DFM review allows engineers to identify potential manufacturing issues before mold production.
Common problems found during DFM analysis include:
- Difficult part ejection
- Excessive wall thickness variation
- Poor gate location
- Cooling problems
- High shrinkage risk
In real mold projects, early design improvements can save significant time and avoid expensive mold modifications.
Related article:
Injection Mold Design Guide: Process, Tips & Best Practices
How to Choose the Right Injection Molding Supplier for Cost Control
A reliable supplier does more than provide a low quotation.
The right manufacturing partner should help evaluate:
Engineering Capability
A professional supplier should provide:
- DFM feedback
- Mold flow suggestions
- Material recommendations
- Manufacturing optimization
Mold Manufacturing Experience
Check whether the supplier has experience with:
- Complex tooling
- Multi-cavity molds
- Tight tolerance parts
- High-volume production
Production Capability
A complete supplier should support:
- Mold manufacturing
- Injection molding production
- Quality inspection
- Delivery management
Choosing a supplier with strong engineering capability can prevent hidden costs caused by poor design decisions or tooling problems.
Related article:
How to Choose an Injection Molding Manufacturer in China
Common Mistakes When Estimating Injection Molding Cost
Many companies underestimate injection molding cost because they only compare initial quotations.
Common mistakes include:
1. Focusing Only on Mold Price
A cheaper mold may have:
- Shorter service life
- More maintenance requirements
- Higher long-term production costs
2. Ignoring Production Volume
A tooling solution suitable for 1,000 parts may not be suitable for 500,000 parts.
Production quantity should always be considered before selecting mold type.
3. Choosing Over-Specified Materials
Some products use expensive engineering plastics even when standard materials can meet performance requirements.
Material selection should be based on actual application needs.
4. Skipping DFM Review
Design problems discovered after mold manufacturing can cause:
- Mold modification costs
- Production delays
- Quality issues
Early engineering review is one of the most effective ways to control cost.
Injection Molding Cost FAQ
How much does injection molding cost per part?
The cost per part depends on material, part size, mold investment, production volume, and cycle time. High-volume production usually achieves a lower unit cost because tooling expenses are distributed across more parts.
What is the biggest cost in injection molding?
The mold is usually the largest upfront expense. However, material usage, production quantity, and cycle efficiency determine the final part cost.
Does higher production volume reduce injection molding cost?
Yes. Higher production volume reduces the impact of tooling cost per part and usually allows manufacturers to optimize production efficiency.
How can I reduce injection molding cost?
Companies can reduce cost by optimizing part design, selecting suitable materials, improving mold design, and increasing production efficiency.
How do suppliers calculate injection molding quotes?
Suppliers usually evaluate:
- Part design
- Material requirements
- Mold complexity
- Production quantity
- Cycle time
- Quality requirements
A detailed DFM review helps create a more accurate quotation.
Conclusion: Improve Cost Accuracy Before Manufacturing
Accurate Injection Molding Cost estimation requires more than calculating mold price. Companies need to evaluate tooling strategy, material selection, production volume, cycle time, and supplier capability before production begins.
The best cost-saving opportunities usually come from early engineering decisions, not from reducing quality after manufacturing starts.
Need help estimating your injection molding project cost?
Our engineering team can provide DFM feedback, tooling recommendations, and manufacturing solutions to help you select the most cost-effective production approach.
Learn more about our injection molding capabilities:
