Introduction
3D printing and injection molding are two key manufacturing technologies used in modern product development. While injection molding is ideal for mass production, 3D printing plays a critical role in early-stage design validation.
By combining both technologies, manufacturers can reduce development risk, shorten lead time, and improve product quality before final mold production.
🧩 What Role Does 3D Printing Play in Injection Molding?
3D printing is not used for mass production in injection molding. Instead, it is mainly used in the design and prototyping stage.
It helps engineers:
- Validate product design before mold machining
- Check part structure and fit
- Reduce costly mold modifications
- Speed up product development cycles
👉 In simple terms:
3D printing is a fast verification tool before CNC mold manufacturing

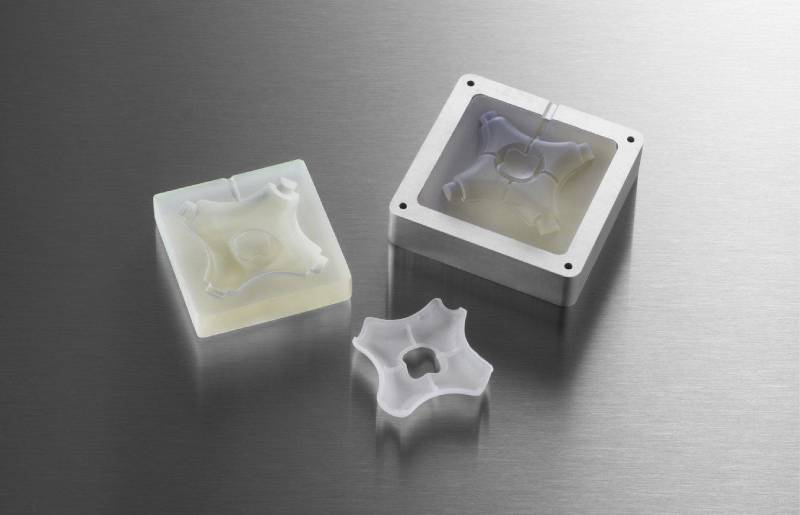

🖼️ 3D Printing Prototype Validation
6
3D printed prototypes allow engineers to physically test product designs before investing in steel mold production.
This helps identify issues such as:
- Wrong dimensions
- Assembly misalignment
- Wall thickness problems
- Structural weaknesses
👉 This step significantly reduces mold rework cost.
🧩 Key Applications of 3D Printing in Injection Molding
1. Rapid Prototyping
3D printing is widely used to create fast physical samples of plastic parts.
Benefits:
- Fast design feedback
- Easy iteration
- Low cost compared to tooling
2. Mold Design Verification
Before CNC machining, 3D printed models are used to check:
- Draft angles
- Undercuts
- Assembly structure
- Overall product feasibility
3. Bridge Tooling (Low-Volume Production)
3D printing can also support soft tooling or temporary molds for:
- Small batch production
- Market testing
- Early product launch
4. Cooling & Mold Optimization
Advanced mold makers use simulation + 3D printed models to optimize:
- Cooling channel layout
- Cycle time
- Thermal balance
5. Fixtures and Assembly Tools
3D printing is also used to produce:
- Assembly fixtures
- Inspection tools
- Positioning jigs
These improve efficiency in production lines.
⚙️ 3D Printing vs CNC Machining in Mold Making
| Item | 3D Printing | CNC Machining |
|---|---|---|
| Speed | Very fast | Medium |
| Accuracy | Medium | High |
| Cost | Low | Higher |
| Application | Prototype stage | Final mold |
| Material | Resin/plastic | Steel/aluminum |
👉 Conclusion:
3D printing is for validation, CNC machining is for final mold production
🖼️ From Prototype to Mass Production Workflow
A typical injection molding development process includes:
Step 1: CAD Design
Product is designed digitally.
Step 2: 3D Printing Prototype
A physical sample is created quickly for testing.
Step 3: Design Optimization
Engineers refine design based on real feedback.
Step 4: CNC Mold Manufacturing
Steel mold is machined with high precision.
Step 5: Injection Molding Production
Mass production begins.
👉 This workflow reduces risk and improves speed to market.
📉 Benefits of Using 3D Printing in Injection Molding
- Reduces development cost
- Shortens lead time
- Improves design accuracy
- Minimizes mold rework risk
- Speeds up product launch
👉 For global buyers, this means lower engineering risk and faster time-to-market.
💰 Cost & Lead Time Impact
Using 3D printing in early design stages can:
- Reduce mold modification cost by 20–40%
- Shorten development time by 3–7 days or more
- Avoid expensive tooling mistakes
👉 This is especially important for complex injection mold projects.
🏭 Work with a Professional Injection Mold Manufacturer
To fully benefit from 3D printing in injection molding, it must be integrated with professional mold engineering and CNC machining.
A reliable supplier can combine:
- 3D printing for fast prototyping
- CNC machining for precision mold making
- Injection molding for production
👉 This ensures a smooth transition from idea to mass production.
Learn more about prototype solutions here:
👉 https://www.fentormold.com/Prototype-Injection-Molding/
Explore our mold manufacturing capabilities:
👉 https://www.fentormold.com/Components-Manufacturing/
👉 https://www.fentormold.com/Injection-Mold/
FAQ
Can 3D printing replace injection molding?
No. 3D printing is used for prototyping, not mass production.
Is 3D printing cheaper than injection molding?
Yes for small quantities, but not for large-scale production.
Can 3D printed parts be used in final products?
Only for low-stress or non-critical applications.
Conclusion
3D printing does not replace injection molding—it improves it.
By combining both technologies, manufacturers can reduce risk, improve design quality, and significantly shorten product development cycles.
If you are developing a new plastic product, using 3D printing early in the process can help you avoid costly mold changes later.
