The materials used for CNC mold components directly determine mold performance, durability, machining accuracy, and production stability.

Choosing the right material is not only a design decision but also a cost and performance strategy in injection mold manufacturing.

This guide explains the most commonly used materials for CNC mold components and how to select the right one for different applications.

Why Material Selection Matters in Mold Components

Material selection affects every stage of mold performance:

  • Machining accuracy
  • Wear resistance
  • Heat resistance
  • Surface quality
  • Mold lifespan
  • Maintenance cost

Incorrect material selection often leads to premature failure and unstable production.

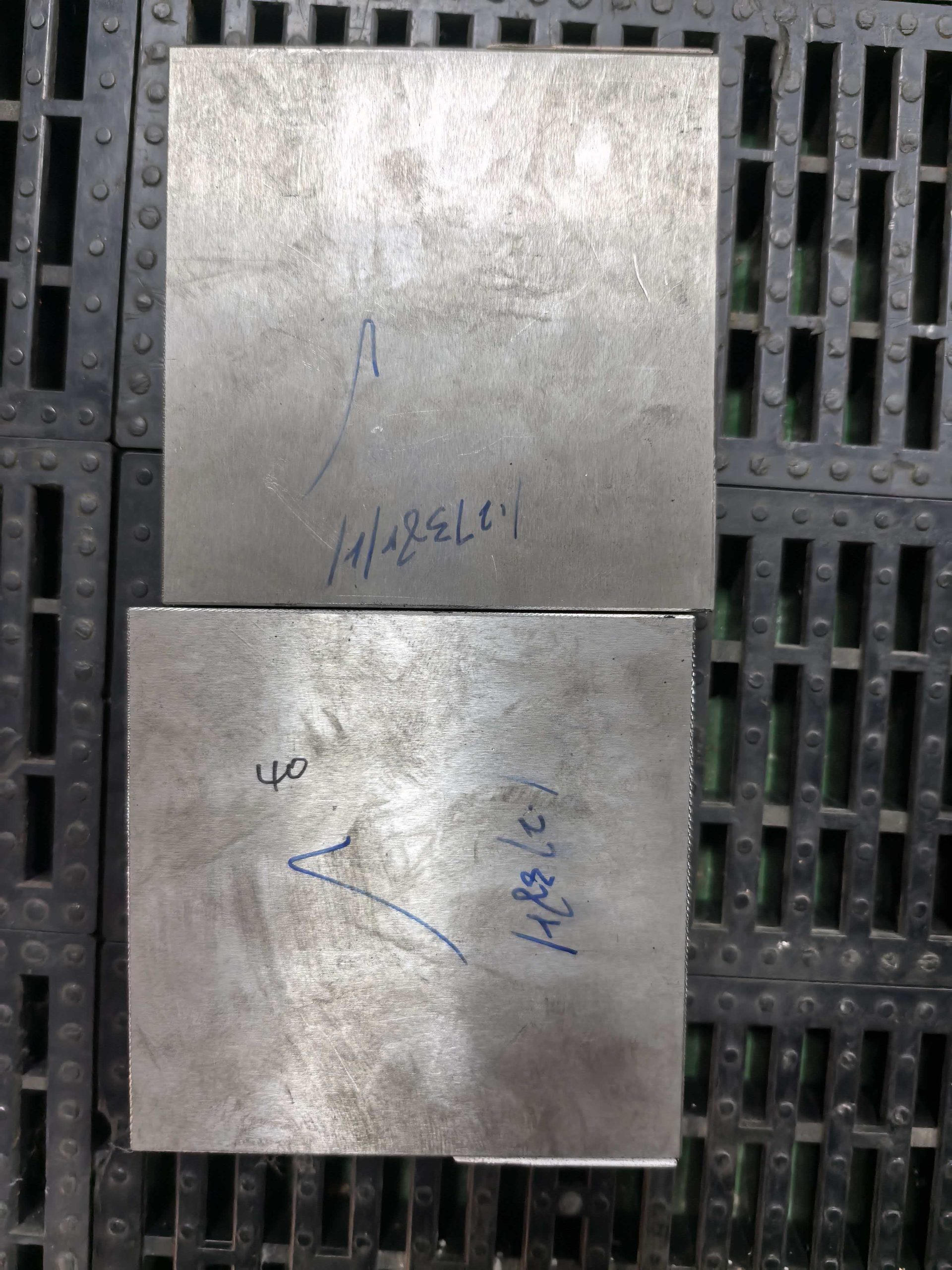

1. Mold components Steel (Most Widely Used Material)

Tool steel is the standard material for most CNC mold components.

Common Grades:

  • H13
  • P20
  • 1.2343
  • 1.2738

Key Properties:

  • High hardness
  • Excellent wear resistance
  • Good thermal stability
  • Suitable for high-volume production

Applications:

  • Core inserts
  • Cavity inserts
  • Structural mold components

👉 Tool steel is the most balanced option for strength and machinability.

2. Stainless Steel (Corrosion Resistant Material)

Common Grade:

  • S136

Features:

  • High corrosion resistance
  • Excellent polishability
  • Stable long-term performance

Applications:

  • Medical molds
  • Transparent plastic parts
  • High gloss components

📷 Image 2 – CNC Machining of Mold Components

https://images.openai.com/static-rsc-4/DFpJvtLnUPMTBno7pcxx24_fvM27sc8yPR2fgqNvjC5zdxdiwJ2XOgI85bROxgs0WYitB2VgK4miOnaNCkUo_2mTPhxAgFFOmCoLuy69ZoC5cmVo-kVn9x9R_7FgXchCzod702EJocdXPvCgudjK07X9hR3N6hCnwChC1DltAO-BlsVRZ1blxa-FhVYBli0r?purpose=fullsize
https://images.openai.com/static-rsc-4/KxKwmOo_E-sNwRd95LRuq4H6pkAaXXmDrY3e65tJvM-v0gGzjrq6RwxQiAjxMtYYtMFw32EoNnclkE9h30se_zhb1qNJa9wgwVSpRuOb04N74f0SGYb9te-MZwbDXZo1sqsQNcY651NfrtixMV4jqNcdYHlWaLmSuq4bfnt7WUurN_TL0lUQ8JkL3jl6O6qq?purpose=fullsize

3. Bearing Steel (High Wear Resistance)

Common Grade:

  • SUJ2

Features:

  • Very high hardness
  • Excellent wear resistance
  • Good fatigue strength

Applications:

  • Ejector pins
  • Sleeves
  • Guide systems

4. Aluminum Alloy (Prototype Material)

Features:

  • Lightweight
  • Easy to machine
  • Fast production

Applications:

  • Prototype molds
  • Low-volume production

Material Comparison Table

MaterialHardnessWear ResistanceMachinabilityCostApplication
H13 / SKD61HighHighMediumMediumProduction molds
P20MediumMediumGoodLowGeneral molds
S136HighHighMediumHighHigh gloss / corrosion
SUJ2Very HighVery HighLowMediumPins & moving parts
AluminumLowLowExcellentLowPrototype molds

CNC Machining Considerations

Different materials require different machining strategies:

  • Hard steel → slower cutting speed
  • Stainless steel → strong cooling required
  • Aluminum → high-speed machining possible
  • Heat-treated steel → precision grinding needed

Common Problems from Wrong Material Selection

  • Early wear
  • Dimensional instability
  • Surface defects
  • Cracking
  • High maintenance cost

👉 https://www.fentormold.com/Components-Manufacturing/

FAQ

What materials are used for CNC mold components?

H13, P20, S136, SKD61, SUJ2, and aluminum alloys.

Which material is best for mold components?

Tool steels like H13 and SKD61 are most widely used.

Can aluminum be used for mold components?

Yes, but mainly for prototype or low-volume molds.

✔ FINAL SUMMARY

Materials used for CNC mold components directly affect mold life, machining accuracy, and production stability.

Proper material selection ensures better performance, lower cost, and longer service life.
