Injection Mold Filling Balance: How To design the Runner and Gate

Introduction

Injection mold filling balance determines whether multiple cavities fill at similar times and under comparable pressure conditions. In a balanced mold, each cavity receives the required melt volume without forcing one cavity to fill significantly earlier or requiring another cavity to operate near the machine’s pressure limit. Poor filling balance creates a chain of defects: one cavity may short shot while another develops flash, weld lines may appear at different locations, and cavity-to-cavity dimensions may vary even when the same molding parameters are used. The engineering problem is therefore not simply to make every cavity fill. It is to control flow length, runner resistance, gate restriction, and pressure distribution so that every cavity reaches the required filling state within a predictable process window.

Why Does Poor Injection Mold Filling Balance Create Cavity-to-Cavity Variation?

Filling imbalance occurs when different cavities experience different flow resistance. In a multi-cavity mold, the injection unit provides one common melt source, but the runner system divides that melt into separate flow paths. If those paths do not present comparable resistance, the melt naturally favors the easier route.

The engineering chain is:

different flow resistance → different flow rates → different filling times → different pressure and temperature histories → cavity-to-cavity variation.

This is why simply setting the same injection pressure and speed for every cavity cannot guarantee identical molding conditions. The machine controls the common injection process; it does not independently control the pressure and flow rate inside each cavity.

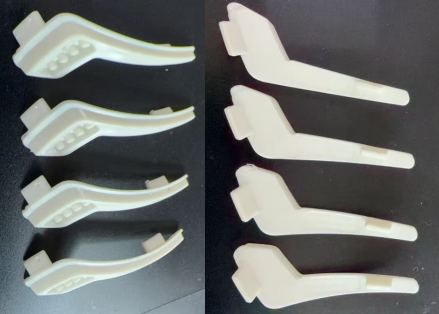

A four-cavity mold can therefore produce four visually similar parts while still having measurable differences in dimensions, weight, packing, and internal stress.

For engineers developing a new tool, filling balance should be evaluated during injection mold design and manufacturing rather than waiting for the first mold trial. Runner layout, gate position, cavity orientation, and flow length determine much of the filling behavior before the molding machine ever runs.

Runner Length Changes the Flow Resistance Between Cavities

Runner length is one of the most direct variables affecting filling balance. Melt loses pressure as it travels through the runner because of viscous resistance and friction against the runner wall.

If one cavity sits closer to the sprue while another requires a longer flow path, the two cavities do not see the same pressure condition. The shorter path can fill earlier because the melt encounters less resistance.

This problem becomes particularly obvious in an improperly arranged multi-cavity mold. Imagine four identical cavities positioned around a central sprue. If the runner branches are not geometrically equivalent, one cavity may receive melt earlier even though all four parts are identical.

The correction should focus on runner geometry rather than simply increasing injection pressure. Higher machine pressure can force the slower cavity to fill, but it may also increase pressure in the already-favored cavity and create flash.

The goal is to make the flow paths inherently comparable before relying on machine settings.

Runner Diameter Controls More Than Flow Capacity

Runner diameter changes pressure loss and therefore changes how strongly the runner restricts the melt.

A smaller runner increases flow resistance and can create a larger pressure drop. A larger runner reduces resistance but increases material volume, cooling demand, and potentially material waste in a cold-runner system.

The correct diameter is therefore a balance between pressure loss, shear behavior, cooling, and material efficiency.

For filling balance, the critical issue is consistency between equivalent runner branches. If one branch has a different effective diameter or contains a different number of restrictions, its pressure loss will differ from the others.

Even small geometric differences can become important when the molding window is already narrow or when the resin has high viscosity.

How Do Gate Position and Cavity Geometry Change Filling Balance?

Runner balance alone cannot guarantee balanced cavity filling. The gate becomes the next major restriction because it determines how melt enters the cavity and how much pressure is required to maintain flow.

Two cavities can receive melt through identical runners but still fill differently if their gate positions, gate sizes, or local wall thicknesses differ.

This is especially important for family molds. Different parts may have different volumes, flow lengths, wall thicknesses, and gate requirements. Treating them as equivalent cavities can create a filling sequence that is inherently unbalanced.

A mold flow analysis can help identify these differences before the tool is manufactured, particularly when the part has long flow paths, multiple weld-line risks, or significant wall-thickness variation.

Gate Position Determines the Filling Sequence

The gate determines where the melt enters the cavity and therefore controls the initial flow direction.

If a gate sits near a thick section, the melt may fill that region quickly and then continue toward thinner areas. If the gate sits near the end of a long thin section, the pressure requirement can increase significantly before the cavity reaches full fill.

This means gate position affects more than gate appearance. It influences flow length, pressure demand, weld-line location, air-trap position, orientation, and packing efficiency.

Consider two identical cavities with different gate positions. The cavity with the shorter effective flow path may fill first. The operator may then reduce injection speed to prevent flash in that cavity, but the slower cavity may become a short shot.

The correct engineering solution is to compare the complete flow path rather than adjusting machine settings to compensate for an unsuitable gate location.

Gate Size Can Shift the Pressure Distribution

Gate size determines how strongly the gate restricts the transition between runner and cavity.

A smaller gate generally creates greater flow resistance. A larger gate allows easier filling and can reduce the pressure required to fill the cavity, but it can also affect gate vestige, packing behavior, shear, and gate freeze time.

In a multi-cavity mold, different effective gate restrictions can create cavity-to-cavity pressure differences even when the runner system is perfectly symmetrical.

This is particularly important in family molds where each product may require a different gate size. A larger component may require a larger gate simply because it needs more melt volume and packing capability, while a small cosmetic component may require a smaller gate.

The engineer should therefore balance the system based on required filling pressure and flow resistance, not simply make every gate physically identical.

Why Can’t Injection Pressure Alone Correct Filling Imbalance?

When one cavity fills slowly, increasing injection pressure or injection speed may appear to solve the problem. The machine can provide more driving force, allowing the difficult cavity to reach full fill.

However, the pressure increase acts on the entire runner system. It does not selectively increase pressure only in the under-filled cavity.

This creates a dangerous compensation cycle:

imbalanced runner → increase injection pressure → difficult cavity fills → easy cavity sees excessive pressure → flash or dimensional variation → reduce pressure → difficult cavity short shots again.

A mold operating in this condition may produce acceptable parts only inside a very narrow process window.

The objective of filling balance is therefore to reduce the pressure difference created by the mold itself before process optimization begins.

A Short Shot and Flash in Different Cavities Often Indicate the Same Root Cause

A common multi-cavity trial scenario is one cavity producing a short shot while another cavity produces flash.

These defects may appear unrelated, but they can originate from the same filling imbalance.

The easier flow path receives melt earlier and reaches higher pressure sooner. The more restrictive path receives less flow and may remain incompletely filled. Increasing machine pressure may push more melt toward the restrictive cavity, but the already-filled cavity may then experience excessive pressure at the parting line.

This is a strong indication that the mold, rather than the machine setting, controls the problem.

The engineer should compare runner dimensions, gate restrictions, flow length, venting, and cavity geometry before changing the process window.

Filling Imbalance Can Also Change Part Dimensions

Filling balance affects dimensional consistency because different cavities can experience different pressure and thermal histories.

The cavity that fills earlier may receive packing pressure for a different effective duration than the cavity that fills later. Different pressure histories can produce different levels of material compression and shrinkage.

The result can be cavity-to-cavity variation in:

• part weight
• critical dimensions
• boss diameter
• wall dimensions
• warpage
• sink behavior

This becomes particularly important for precision components where the same nominal mold dimension must produce interchangeable parts.

A mold may therefore pass a visual inspection while still failing a dimensional comparison between cavities.

How Can Engineers Correct Filling Balance Before the Mold Trial?

The most effective correction occurs before the mold reaches T0. Engineers should first determine whether the imbalance comes from runner geometry, gate restriction, cavity flow length, or local part geometry.

The correction should then target the highest-resistance path instead of simply increasing machine pressure.

A structured trial process also helps separate mold-related imbalance from molding-process variables. During prototype injection molding and part validation, the team can compare cavity fill sequence, part weight, dimensions, and molding pressure under controlled conditions.

Balance the Runner System Around Pressure Loss

For identical cavities, the preferred runner architecture should provide comparable pressure loss from the sprue to each gate.

A geometrically balanced runner layout is often the starting point, but geometric symmetry alone does not guarantee hydraulic balance. Runner diameter, branch length, turns, transitions, and gate restriction all contribute to the actual pressure loss.

For example, a runner system may look symmetrical in the CAD model while one branch contains a different transition or gate configuration. The melt will still experience a different resistance.

The engineer should therefore evaluate the effective flow path rather than judging balance only from the top-view layout.

Use Gate and Runner Changes Before Increasing Machine Pressure

If the filling imbalance originates from the mold, modifying the runner or gate is generally more effective than forcing the machine to compensate.

A gate can be enlarged on a restrictive cavity to reduce pressure loss. A runner branch can be resized to redistribute flow. A gate location can be moved to reduce an excessive flow length.

These changes directly alter the resistance that created the imbalance.

By contrast, increasing injection pressure changes the driving force without correcting the resistance difference. The mold may produce acceptable parts temporarily, but the process remains sensitive to resin viscosity, temperature, machine variation, and environmental changes.

Engineering Conclusion

Injection mold filling balance is achieved by controlling flow resistance, not by forcing every cavity to fill with higher machine pressure.

The critical engineering relationship is:

runner geometry + gate restriction + cavity flow length + part geometry → pressure distribution → filling sequence → cavity-to-cavity consistency.

For identical multi-cavity molds, equivalent flow paths should produce comparable pressure loss and filling time. For family molds, exact geometric symmetry may not be possible, so the engineer must deliberately compensate for differences in part volume, wall thickness, flow length, and gate restriction.

When one cavity produces a short shot while another produces flash, increasing injection pressure should not automatically be the first response. That combination often indicates that the mold distributes melt unevenly.

The correct approach is to identify the cavity with excessive flow resistance, determine whether the restriction comes from the runner, gate, venting, or product geometry, and modify the mold architecture accordingly.

A well-balanced mold should allow the injection machine to operate within a reasonable pressure and speed window while maintaining similar filling behavior across cavities. The purpose of filling balance is not merely to fill every cavity; it is to make every cavity experience a sufficiently similar molding history that the resulting parts remain dimensionally and functionally consistent.
