What Is an Unscrewing Mold? Working Principle & Benefits
Introduction
In plastic injection molding, producing threaded plastic parts requires more advanced tooling technology compared with standard injection molds. Internal or external threads cannot usually be removed directly by ejector pins because the molded part will lock onto the threaded core or cavity.
To solve this challenge, manufacturers use a specialized solution called an unscrewing mold.

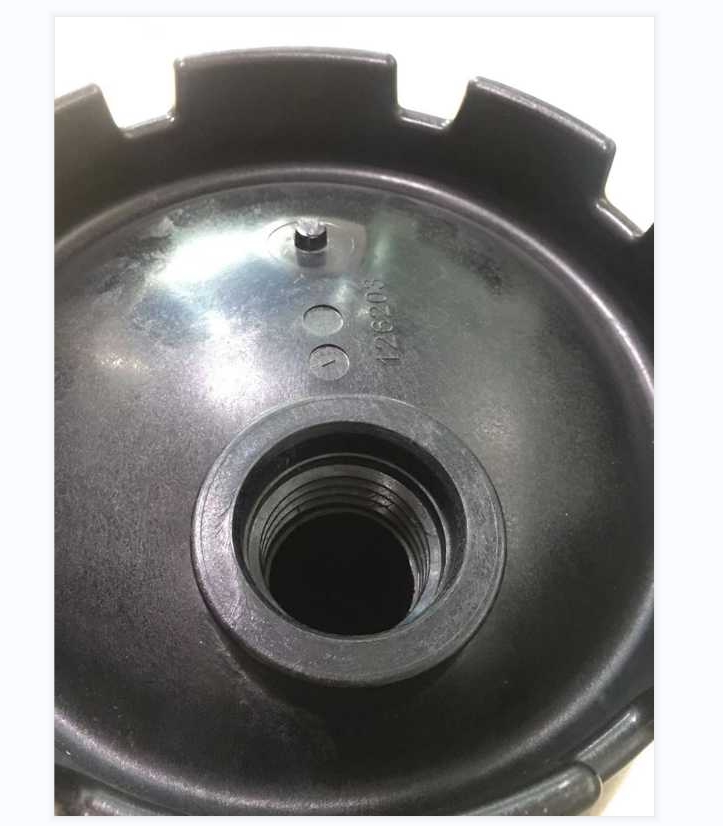

An unscrewing mold is an injection mold designed to produce threaded plastic components by using a rotating mechanism during the demolding process. The threaded core or cavity rotates to release the molded part smoothly, preventing damage to the thread structure.
This type of mold is widely used for products that require precise threaded connections, including plastic bottle caps, medical containers, automotive components, electronic housings, and industrial fittings.
Compared with traditional injection molds, an unscrewing mold provides better thread accuracy, higher automation, and improved production efficiency, making it an ideal solution for high-volume manufacturing.
For companies developing complex plastic parts, choosing an experienced mold manufacturer is essential because mold structure, machining accuracy, and mechanism design directly affect production reliability.
More information about professional injection mold design and manufacturing services:
What Is an Unscrewing Mold?
An unscrewing mold is a specialized injection molding tool that uses a mechanical, hydraulic, or electric rotation system to remove threaded plastic parts automatically after molding.
In a conventional injection mold, products are normally released by ejector pins or stripper plates. However, threaded parts require a different demolding method because the threads create a mechanical connection between the plastic part and the mold core.
The unscrewing mechanism solves this problem by rotating the threaded core or cavity before ejection. During this process, the molded plastic thread separates gradually from the mold thread without causing deformation or surface damage.
A typical unscrewing mold consists of several key components:
Threaded core
Rotating shaft
Gear transmission system
Hydraulic or servo drive system
Guide mechanism
Ejection system
Each component must work together accurately to ensure stable operation and consistent product quality.
For example, plastic bottle caps require extremely accurate internal threads to achieve proper sealing performance. Any small error in the unscrewing process may result in leakage, poor assembly, or product rejection.
Therefore, an unscrewing mold is commonly selected for applications where threaded plastic parts require high precision and reliable performance.
How Does an Unscrewing Mold Work?
The working principle of an unscrewing mold is based on controlled rotation during the mold opening and demolding process.
Unlike standard molds that directly eject parts, unscrewing molds use a rotation movement to separate the threaded section before removing the finished product.
The complete process usually includes four main stages.
Injection Process
The first stage is injecting molten plastic material into the mold cavity.
During injection molding, plastic pellets are melted and injected under high pressure into the mold. The material flows around the threaded core and fills the cavity to form the required product shape.
Injection parameters such as:
Injection pressure
Injection speed
Melt temperature
Holding pressure
must be carefully controlled because they influence thread accuracy and product quality.
For threaded components, proper filling balance is especially important because incomplete filling or weld lines may affect the strength of the thread area.
Cooling Process
After the cavity is filled, the plastic part begins cooling inside the mold.
Cooling plays an important role in an unscrewing mold because threaded areas usually have complex structures and may require longer cooling time.
An optimized cooling system helps to:
Maintain dimensional stability
Reduce cycle time
Improve thread accuracy
Prevent deformation
Poor cooling design can increase demolding resistance and make the unscrewing process unstable.
Threaded Core Rotation
After the plastic part has cooled sufficiently, the unscrewing mechanism starts rotating the threaded core.
The rotation system can be powered by:
Hydraulic motor
Servo motor
Rack and pinion mechanism
Gear drive system
As the core rotates, the molded thread gradually separates from the mold thread.
The rotation speed and torque must be carefully calculated. Excessive torque may damage the product thread, while insufficient torque may prevent complete release.
A well-designed unscrewing mold ensures smooth thread release and maintains consistent production quality.
Part Ejection
After the threaded core completely separates from the plastic part, the ejector system pushes the finished product out of the mold.
At this stage, the product should maintain:
Accurate thread dimensions
Smooth surface finish
Correct assembly performance
Because the demolding process is automatic, unscrewing molds are highly suitable for mass production environments.
Main Components of an Unscrewing Mold
Compared with standard injection molds, an unscrewing mold contains more complex mechanical structures. Each component must work together accurately to achieve reliable thread release and stable production.
A well-designed unscrewing system requires not only precise mold machining but also careful consideration of material selection, tolerance control, and assembly accuracy.
Threaded Core
The threaded core is one of the most important components in an unscrewing mold.
It creates the internal thread geometry of the plastic part and directly determines the final thread accuracy. Since the threaded core repeatedly contacts with plastic parts during production, it must have excellent wear resistance and dimensional stability.
The manufacturing quality of the threaded core affects:
- Thread accuracy
- Product assembly performance
- Sealing capability
- Mold service life
For high-volume production, mold manufacturers usually use hardened tool steel and precision machining processes to ensure long-term reliability.
Advanced CNC machining, EDM processing, and strict quality inspection are essential for manufacturing high-precision mold components.
For professional mold component manufacturing solutions, please visit:
Gear Drive System
The gear drive system transfers rotational movement to the threaded core.
In many unscrewing molds, gears are used to control the rotation of multiple cores simultaneously. This design is especially useful for multi-cavity molds where several threaded parts need to be produced in each cycle.
A properly designed gear system provides:
- Stable rotation
- Accurate positioning
- Smooth operation
- Longer service life
The gear tolerance is critical because even small errors can cause uneven rotation between different cavities.
For this reason, precision machining and proper assembly adjustment are necessary during mold manufacturing.
Hydraulic or Servo Drive System
The drive system provides the power required for the unscrewing operation.
There are mainly two common drive methods:
Hydraulic Unscrewing System
Hydraulic systems are widely used because they provide high torque and reliable performance.
Advantages include:
- Strong driving force
- Suitable for large threaded parts
- Stable operation under heavy loads
However, hydraulic systems require additional hydraulic equipment and maintenance.
Servo Electric Unscrewing System
Servo-driven systems are becoming more popular in modern injection molding because they provide better control accuracy.
Advantages include:
- Precise rotation control
- Lower energy consumption
- Cleaner operation
- Easier parameter adjustment
The choice between hydraulic and servo systems depends on factors such as product size, mold structure, production volume, and precision requirements.
Ejection System
The ejection system is responsible for removing the finished plastic part after the thread has been released.
Unlike standard injection molds, the ejection sequence of an unscrewing mold must be synchronized with the core rotation process.
Incorrect timing between rotation and ejection may cause:
- Thread damage
- Product deformation
- Mold failure
Therefore, the ejector system must be carefully designed and tested during mold trials.
Types of Unscrewing Mold Mechanisms
Different products and production requirements require different unscrewing mechanisms. The most suitable design depends on factors such as thread size, part geometry, production quantity, and automation requirements.
Automatic Unscrewing Mold
An automatic unscrewing mold completes the entire thread release process without manual operation.
The system automatically controls:
- Mold opening
- Thread rotation
- Core release
- Product ejection
This type of mold is commonly used for mass production because it improves efficiency and reduces labor costs.
Typical applications include:
- Bottle caps
- Cosmetic containers
- Medical packaging
- Industrial fittings
Hydraulic Unscrewing Mold
A hydraulic unscrewing mold uses hydraulic power to rotate the threaded core.
This design is suitable for applications requiring high torque, especially when producing larger plastic components with deeper threads.
Benefits include:
- Strong rotational force
- Reliable performance
- Suitable for complex thread structures
However, hydraulic systems usually require more space and additional control equipment.
Electric Unscrewing Mold
Electric unscrewing molds use servo motors to control the rotation movement.
Compared with traditional hydraulic systems, electric systems provide better positioning accuracy and easier parameter adjustment.
They are suitable for industries requiring:
- High precision
- Clean production environments
- Repeatable quality
Medical and electronic industries often prefer electric solutions because of their precise control capability.
Advantages of Using an Unscrewing Mold
An unscrewing mold provides several advantages compared with conventional injection molding solutions, especially for threaded plastic components.
High-Quality Thread Production
The biggest advantage of an unscrewing mold is its ability to produce accurate and functional threads.
The controlled rotation process prevents:
- Thread deformation
- Surface damage
- Assembly problems
This is especially important for products where threads affect sealing, connection strength, or user experience.
Improved Production Efficiency
Because the unscrewing process is fully automated, manufacturers can achieve higher production efficiency.
Compared with manual thread removal methods, automatic unscrewing systems offer:
- Faster cycle times
- Lower labor requirements
- More consistent product quality
For large-volume production, the additional mold investment can usually be recovered through improved productivity.
Reduced Product Damage
Traditional demolding methods may damage threaded areas because of excessive ejection force.
An unscrewing mold releases the product gradually through rotation, reducing stress on the plastic part.
This helps maintain:
- Better appearance
- More accurate dimensions
- Longer product lifetime
Suitable for Complex Threaded Parts
Unscrewing technology allows manufacturers to produce parts that would be difficult or impossible with standard molds.
Examples include:
- Deep internal threads
- Fine pitch threads
- Precision threaded connectors
- Sealing components
This makes unscrewing molds an important solution for advanced injection molding applications.
Applications of Unscrewing Mold
An unscrewing mold is widely used in industries where plastic parts require reliable threaded connections. With the ability to produce accurate internal and external threads, this molding technology has become an important solution for high-precision plastic component manufacturing.
Plastic Bottle Caps
Plastic bottle caps are one of the most common applications of an unscrewing mold.
Bottle caps require accurate internal threads to ensure proper sealing with the bottle neck. Any dimensional error may cause:
- Leakage problems
- Poor opening and closing performance
- Inconsistent assembly
Using an unscrewing mold allows manufacturers to produce millions of bottle caps with consistent thread quality and high production efficiency.
Medical Containers
Medical products often require precise threaded structures, including:
- Medicine bottles
- Sample containers
- Laboratory tubes
- Syringe components
For medical applications, thread accuracy and cleanliness are extremely important.
An unscrewing mold helps maintain stable dimensions and reliable assembly performance, which are critical for medical products.
Automotive Plastic Components
Many automotive plastic parts include threaded structures for assembly purposes.
Examples include:
- Sensor housings
- Fluid connectors
- Fastening components
- Protective covers
Automotive manufacturers require molds with high durability because production volumes are usually large and quality requirements are strict.
A professionally designed unscrewing mold can provide stable production performance throughout millions of molding cycles.
Electronic Plastic Components
Electronic products often contain small precision threaded parts used for assembly and protection.
Examples include:
- Connector housings
- Cable fittings
- Protective covers
- Electronic enclosures
Because these components usually require tight tolerances, the mold design and machining accuracy are critical.
Design Considerations for Unscrewing Mold
Designing an unscrewing mold requires more engineering consideration than a standard injection mold. The mold designer must evaluate the thread structure, material behavior, cooling system, and mechanical movement to ensure reliable production.
Thread Design and Tolerance
Thread design is one of the most important factors in an unscrewing mold.
Engineers need to consider:
- Thread pitch
- Thread depth
- Thread angle
- Tolerance requirements
- Assembly conditions
Incorrect thread design may lead to difficult demolding or poor product performance.
Before starting mold manufacturing, engineers should carefully review product drawings and confirm all thread specifications.
Material Selection
Plastic material selection directly affects the performance of threaded parts.
Common materials used for threaded plastic components include:
- ABS
- PP
- PC
- Nylon
- POM
Different materials have different shrinkage rates and mechanical properties.
For example:
- PP provides good chemical resistance and flexibility.
- Nylon offers high strength and wear resistance.
- POM provides excellent dimensional stability for precision threads.
The selected material will influence the mold design, cooling system, and thread tolerance calculation.
Cooling System Design
Cooling is especially important for an unscrewing mold because threaded areas can create uneven heat distribution.
An optimized cooling system helps to:
- Reduce cycle time
- Improve dimensional stability
- Prevent thread deformation
- Increase production efficiency
Mold designers usually analyze cooling layout carefully to ensure uniform temperature control around the threaded core.
Mold Steel Selection
Because unscrewing molds contain moving mechanical components, mold steel selection is critical.
Common mold steels include:
- P20 steel
- H13 steel
- S136 stainless steel
- 718 steel
The selection depends on:
- Production quantity
- Plastic material
- Required mold life
- Surface finish requirements
For high-volume production, hardened steel is usually preferred because it provides better wear resistance.
Unscrewing Mold vs Standard Injection Mold
Although both technologies use injection molding processes, unscrewing molds and standard injection molds have significant differences.
| Comparison | Unscrewing Mold | Standard Injection Mold |
|---|---|---|
| Threaded parts | Suitable for internal/external threads | Usually cannot release threads directly |
| Demolding method | Rotation mechanism | Ejector pins or stripper plate |
| Mold structure | More complex | Simpler |
| Mold cost | Higher | Lower |
| Production efficiency | High for threaded parts | High for standard parts |
| Application | Bottle caps, connectors, threaded components | General plastic parts |
For products without threads, standard injection molds are usually more economical. However, when threaded features are required, an unscrewing mold provides better performance and reliability.
Prototype Testing Before Mass Production
For complex threaded plastic parts, validating the design before investing in a production mold can reduce potential risks.
Prototype injection molding allows engineers to test:
- Thread accuracy
- Product assembly
- Material performance
- Functional requirements
This step is especially useful for new product development because it helps identify design issues before large-scale production.
More information about prototype injection molding services: https://www.fentormold.com/prototype-injection-molding/
How to Choose an Unscrewing Mold Manufacturer?
Selecting the right mold manufacturer is critical because an unscrewing mold requires advanced mechanical design, precision machining, and strict quality control.
When evaluating a supplier, companies should consider the following factors.
Experience with Complex Mold Design
An experienced manufacturer should understand:
- Thread mechanism design
- Gear transmission systems
- Hydraulic or servo control
- Mold movement sequence
A supplier with experience in complex tooling can identify potential problems before manufacturing begins.
Precision Manufacturing Capability
The accuracy of an unscrewing mechanism depends heavily on machining quality.
A reliable manufacturer should have capabilities including:
- CNC machining
- EDM machining
- Precision grinding
- Mold assembly
- Trial testing
High machining accuracy ensures smooth movement and longer mold life.
Complete Mold Testing Process
Before shipment, the mold should go through proper testing procedures, including:
- Mold movement inspection
- Thread release testing
- Sample evaluation
- Dimensional inspection
A complete testing process helps ensure that the mold can run smoothly after delivery.
Global Export Experience
For overseas customers, choosing a manufacturer with export experience is also important.
The supplier should understand:
- International mold standards
- Export packaging requirements
- Technical documentation
- Customer communication
A professional partner can provide better support throughout the entire project.
Conclusion
An unscrewing mold is a specialized injection molding solution designed for producing plastic parts with internal or external threads.
Unlike standard molds, it uses a rotating mechanism to release threaded parts safely and automatically. This technology provides excellent thread accuracy, improved production efficiency, and reliable performance for high-volume manufacturing.
From bottle caps and medical containers to automotive and electronic components, unscrewing molds play an important role in modern plastic manufacturing.
However, because of their complex mechanical structure, successful production depends on professional mold design, precision machining, and proper testing.
Choosing an experienced injection mold manufacturer can help ensure better mold performance, longer service life, and stable production results.
Fentormold provides complete injection molding solutions, including mold design, precision tooling, prototype validation, and production support for customers worldwide.
Learn more about our injection mold solutions: https://www.fentormold.com/injection-mold/
