Ejector pins are small but very important parts in injection molds. They help release plastic parts after cooling. Without them, parts would stay inside the mold.
However, many factories face a common problem: Why Ejector Pins Break Frequently.
This problem causes machine downtime, increases cost, and may damage the mold.
So it is important to understand Why Ejector Pins Break Frequently and how to prevent it.
What ejector pins do in a mold
Ejector pins push the molded part out of the cavity after cooling.
When the system works well, movement is smooth and stable. But when resistance increases, stress builds up quickly.

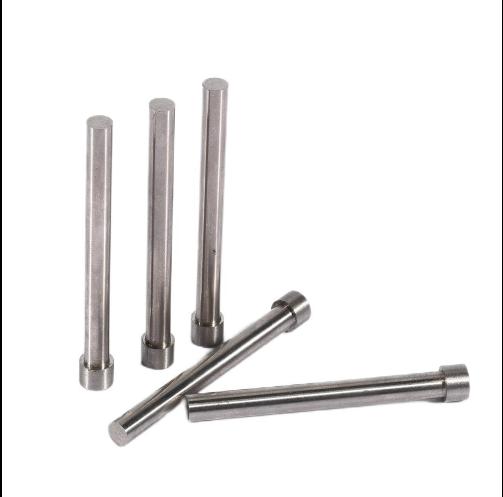

🖼️ Ejector pin system inside injection mold
6
Ejector pins help release molded parts from the cavity after cooling. A balanced layout is very important for stable production.
Main reasons why ejector pins break frequently
There are several common reasons behind Why Ejector Pins Break Frequently.
Design imbalance, misalignment, high force, and poor lubrication are the most common causes.
When these factors combine, failure becomes very likely.
Design problems that lead to failure
Bad mold design is one of the biggest reasons behind Why Ejector Pins Break Frequently.
If ejector pins are not evenly placed, force becomes unbalanced. Some pins carry more load than others.
Low draft angle also increases resistance during ejection.
Material and heat treatment issues
Material quality directly affects Why Ejector Pins Break Frequently.
Low-grade steel reduces strength and fatigue resistance. Poor heat treatment makes pins too brittle or too soft.
Over time, this leads to repeated breakage.
Cooling, friction, and maintenance problems
Cooling also affects performance.
If cooling is uneven, parts may stick inside the cavity. This increases ejection force.
Friction and lack of lubrication also speed up wear.
🖼️ Ejector pin failure and stress causes
This image shows how stress concentration, misalignment, and overload can cause ejector pin breakage.
How to prevent ejector pin breakage
To reduce Why Ejector Pins Break Frequently, manufacturers should focus on:
- Better mold design
- Proper pin material selection
- Correct heat treatment
- Regular lubrication and maintenance
At Fentormold, we help optimize mold design for better durability:
👉 https://www.fentormold.com/injection-molding
Real production experience
In real factories, Why Ejector Pins Break Frequently is usually caused by multiple small issues, not just one.
Even small design or maintenance problems can slowly lead to failure over time.
