Good injection mold venting design allows trapped air and gas to escape as molten plastic fills the cavity. Without enough venting, compressed air can cause burn marks, short shots, weak weld lines, flash, and unstable filling.
Therefore, venting should not be treated as a small detail added after mold trials. Instead, it should be reviewed with gate location, runner design, ejection, and part geometry before mold manufacturing begins.
The goal is simple:
Let air escape quickly while preventing molten plastic from entering the vent.
This guide explains how injection mold venting design works, where vents should be placed, and how to avoid common molding defects.
What Is Injection Mold Venting Design?
Injection mold venting design is the process of creating controlled escape paths for air and gas inside an injection mold.
When molten plastic enters the cavity, it pushes air toward the final filling areas.
If that air cannot escape, cavity pressure rises. As a result, the material may stop flowing or burn because of rapid air compression.
Common venting methods include:
- Parting line vents
- Ejector pin venting
- Insert venting
- Overflow areas
- Vacuum-assisted venting
However, vent size must be carefully controlled.
If the vent is too shallow, air cannot escape fast enough.
By contrast, if the vent is too deep, molten plastic may enter the vent and create flash.
For new tooling projects, Fentor Mold reviews venting together with the complete injection mold design and manufacturing process.
Why Injection Mold Venting Design Is Important
Poor venting can cause several defects at the same time.
| Problem | How Poor Venting Contributes |
|---|---|
| Burn marks | Trapped air becomes highly compressed and heated |
| Short shots | Air blocks plastic flow near the end of filling |
| Weak weld lines | Gas remains where two flow fronts meet |
| Surface defects | Trapped gas disturbs plastic flow |
| High injection pressure | Plastic must push against trapped air |
| Flash | Incorrect or oversized vents allow plastic leakage |
Therefore, good venting improves both part quality and process stability.
Prevent Burn Marks

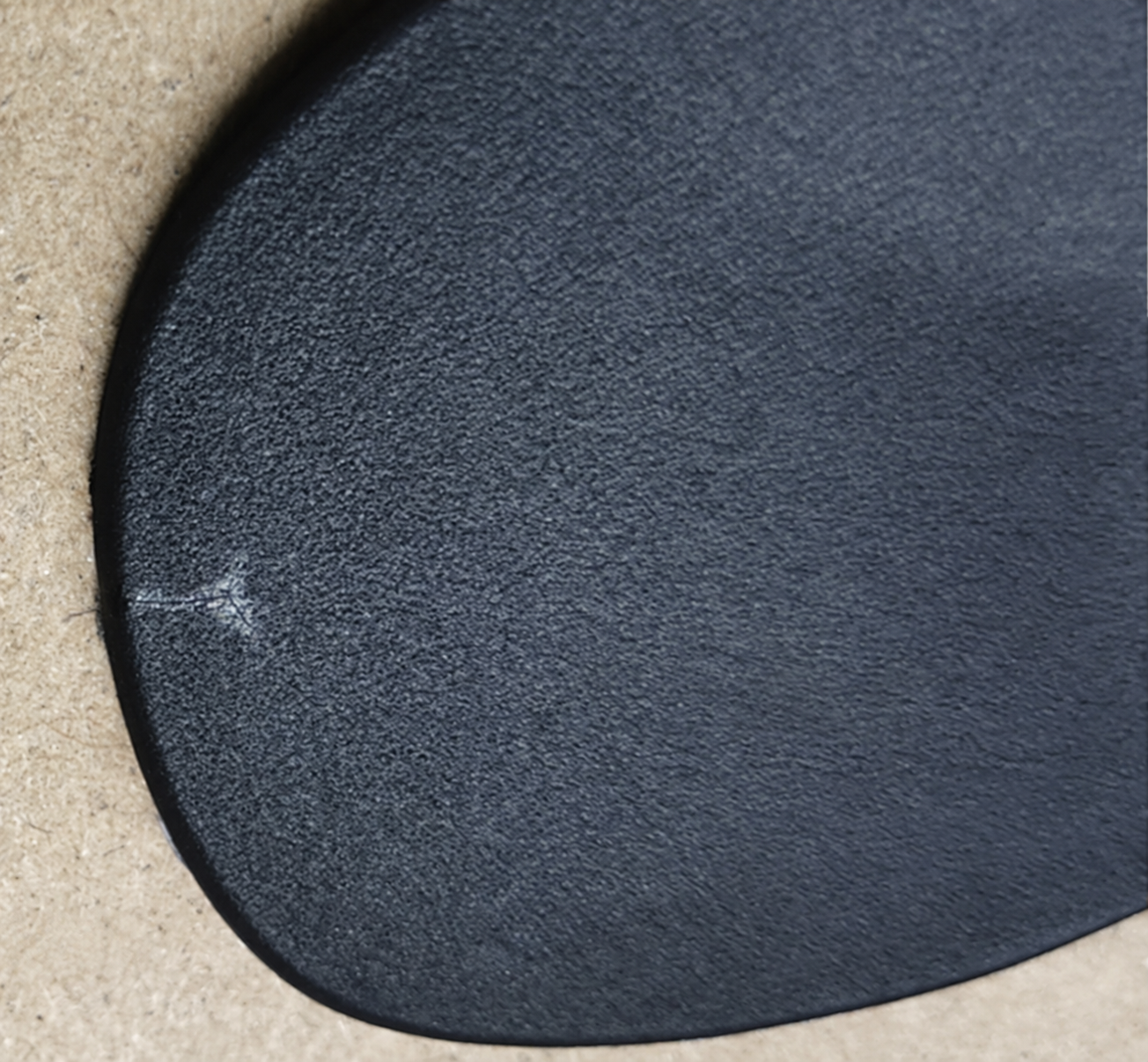

Burn marks are one of the clearest signs of poor venting.
As plastic fills the cavity, trapped air can become compressed very quickly. Consequently, its temperature rises.
The plastic near that location may become discolored or burned.
Typical signs include:
- Brown marks
- Black spots
- Burned areas near the end of filling
- Surface damage around deep ribs
For this reason, engineers should first check air traps and venting before simply changing process settings.
Reduce Short Shots
Poor venting can also cause incomplete filling.
When air remains trapped at the end of the cavity, it creates resistance against the incoming melt.
As a result, plastic may stop before the cavity is completely filled.
Improving injection mold venting design can reduce this resistance. In turn, filling becomes more stable.
Improve Surface Quality
Appearance-sensitive plastic parts need stable air release.
Poor venting may contribute to:
- Flow marks
- Poor weld line appearance
- Burn spots
- Uneven texture
- Surface contamination
Therefore, automotive interior parts, electronic housings, and consumer products often need more careful venting analysis.
Common Injection Mold Venting Methods
Different mold areas may need different venting solutions.
| Venting Method | Best Use | Main Advantage |
|---|---|---|
| Parting line vent | End-of-fill areas near parting line | Simple and easy to maintain |
| Ejector pin vent | Areas away from parting line | Uses existing mold components |
| Insert vent | Deep ribs and complex areas | Easy to remove and clean |
| Overflow well | Weld lines and difficult end fills | Improves gas evacuation |
| Vacuum venting | Thin-wall or high-speed filling | Removes air before filling |
In many molds, engineers combine several methods instead of relying on only one.
Injection Mold Venting Design at the Parting Line
Parting line vents are the most common solution.
During filling, air often moves toward the mold parting surface. Therefore, small vent grooves can help the air escape.
A typical vent includes:
- Vent depth
- Vent width
- Vent land
- Relief channel
The most important dimension is usually vent depth.
If it is too shallow, gas flow is restricted.
However, if it is too deep, flash may occur.
For this reason, vent depth should match the actual plastic material and molding conditions. One fixed value will not work for every mold.
Injection Mold Venting Design With Ejector Pins
Ejector pins can also provide useful air-release paths.
A small controlled clearance between the ejector pin and the hole allows trapped gas to escape.
This method is especially helpful when air is trapped in areas that cannot reach the parting line.
However, clearance must be controlled carefully.
Too much clearance can create:
- Flash around ejector pins
- Visible ejector marks
- Faster wear
- Unstable ejection
On the other hand, too little clearance may provide almost no venting benefit.
Therefore, venting and ejection accuracy should be checked together.
For more information about ejector-related failures, see Why Ejector Pins Break Frequently in Injection Molding.
Injection Mold Venting Design With Inserts
Removable inserts are useful for difficult areas such as:
- Deep ribs
- Narrow pockets
- Blind features
- Complex internal geometry
- Local end-of-fill areas
The main advantage is easier maintenance.
During long production runs, vents may become blocked by plastic residue, additives, or dirt.
If the vent is built into a removable insert, technicians can remove and clean it more easily.
As a result, downtime can be reduced and venting performance can stay stable.
Where Should Injection Mold Vents Be Located?
Correct vent location is often more important than simply making a larger vent.
First, engineers should understand the filling direction.
Air normally collects at:
- End-of-fill areas
- Deep ribs
- Blind pockets
- Sharp corners
- Weld line locations
- Areas opposite the gate
Therefore, vents should be placed close to these locations whenever the mold structure allows it.
A large vent in the wrong location may provide very little benefit.
In multi-cavity molds, runner and gate balance also matter. Otherwise, an unbalanced filling pattern may move air traps from one cavity to another.
You can read more in our Injection Mold Filling Balance guide.
How Plastic Material Affects Injection Mold Venting Design
Different materials need different venting strategies.
Important factors include:
- Melt viscosity
- Processing temperature
- Gas generation
- Fiber content
- Flow behavior
For example, low-viscosity materials can enter very small gaps easily. Therefore, too much vent depth can quickly create flash.
Glass-filled materials may also increase wear around vent areas.
In addition, some engineering plastics generate more gas during processing.
For this reason, engineers should review the actual material grade. A generic name such as ABS, PC, PA, or POM may not be enough.
How Injection Speed Affects Venting
Injection speed has a strong effect on trapped air.
At higher speed, the cavity fills faster.
However, trapped air also has less time to escape.
As a result, high-speed filling can increase the risk of burn marks if venting capacity is too low.
Therefore, engineers should review:
- Injection speed
- Gate size
- Runner layout
- Air-trap locations
- Venting capacity
These factors need to work together.
Reducing injection speed may reduce a burn mark for a short time. However, it does not fix a poor vent design.
How to Improve Injection Mold Venting Design
A systematic approach works better than adding random vents after defects appear.
1. Identify Air Traps Before Machining
First, review the expected flow path.
Moldflow analysis can help predict:
- Filling direction
- Air traps
- Weld lines
- Pressure distribution
However, simulation should still be combined with practical mold-making experience.
2. Vent the End-of-Fill Areas
Next, focus on areas where plastic arrives last.
These locations are usually the highest-risk areas for compressed air.
If possible, add parting-line vents, insert vents, ejector vents, or overflow structures nearby.
3. Control Vent Depth Carefully
The vent needs enough area to release gas.
At the same time, it must remain shallow enough to stop molten plastic.
Therefore, vent depth should match the material and molding conditions.
4. Use Multiple Venting Methods When Needed
One venting method is not always enough.
For example:
- Parting line vents can handle general air release.
- Ejector pins can vent hidden areas.
- Inserts can vent deep structures.
- Overflow wells can help at difficult weld lines.
By combining these methods, engineers can improve production stability.
5. Keep Vents Easy to Clean
A vent that works during T1 may fail later if it becomes dirty.
Therefore, the mold should allow easy inspection and cleaning.
Removable inserts are especially useful in areas where contamination is expected.
Common Injection Mold Venting Problems and Solutions
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Burn mark at end of fill | Insufficient venting | Add or improve vent near air trap |
| Short shot | Trapped air or restricted flow | Check vent location and filling balance |
| Flash near vent | Vent too deep | Reduce vent depth and check parting surface |
| Vent becomes ineffective | Residue or contamination | Clean vent and improve maintenance access |
| Poor weld line | Gas trapped between flow fronts | Add vent or overflow near weld line |
| High injection pressure | Air cannot escape | Increase effective venting area |
This table is useful during mold trials because it links visible defects with possible venting causes.
Injection Mold Venting Design and Overflow Wells
Overflow wells can help in difficult end-of-fill areas.
They provide extra space for the final plastic flow and trapped gas.
As the cavity fills, gas and a small amount of plastic enter the overflow area.
As a result, overflow wells can help:
- Reduce burn marks
- Improve weld lines
- Improve filling stability
- Move defects away from the main product surface
However, overflow wells create extra material waste and may require trimming.
Therefore, they should be used only when they provide a clear benefit.
Injection Mold Venting Design for Long-Term Production
A mold should not only vent well during the first trial.
It should also keep working during mass production.
Over time, vents can become blocked by:
- Plastic residue
- Additives
- Mold release
- Dust
- Oil
- Processing contamination
Therefore, routine maintenance should include:
- Cleaning vent grooves
- Checking ejector pin vents
- Inspecting parting surfaces
- Checking insert vents
- Looking for flash or wear
For projects that continue into mass production, Fentor Mold can also manage mold maintenance as part of its injection molding production service.
Injection Mold Venting Design Checklist
Before releasing a mold for production, check the following:
| Check Item | What to Confirm |
|---|---|
| Air traps | Have end-of-fill locations been identified? |
| Vent location | Are vents positioned near trapped-air areas? |
| Vent depth | Is the depth suitable for the plastic material? |
| Gate and runner | Does filling direction support effective venting? |
| Ejector pins | Can they provide extra venting if needed? |
| Inserts | Are difficult areas easy to vent and clean? |
| Appearance | Are vents away from key cosmetic surfaces? |
| Maintenance | Can vent areas be inspected easily? |
| Mold trial | Are there burn marks, short shots, or flash? |
| Production | Does venting remain stable during continuous running? |
How to Avoid Burn Marks Caused by Poor Venting
When burn marks appear, do not increase vent depth immediately.
Instead, first identify why air is trapped.
A practical sequence is:
- Check where the burn mark appears.
- Confirm whether it is an end-of-fill area.
- Inspect existing vents for blockage.
- Check gate and filling direction.
- Review injection speed.
- Add or modify venting only after the cause is clear.
This approach can reduce unnecessary mold changes.
Most importantly, process settings should not be used to hide a poor mold design.
Conclusion
Good injection mold venting design helps prevent burn marks, short shots, poor weld lines, high filling pressure, and unstable production.
However, effective venting requires more than simply cutting grooves into the mold.
Engineers should consider:
- Part geometry
- Gate location
- Plastic material
- Filling direction
- Injection speed
- Ejection system
- Vent maintenance
Therefore, venting should be reviewed during DFM and mold design rather than added only after defects appear.
In the end, a reliable mold combines correct gate and runner design with effective cooling, ejection, and venting.
Fentor Mold can review air traps, vent locations, filling direction, and mold structure before tooling manufacturing. This helps reduce mold trial problems and improve long-term production stability.
