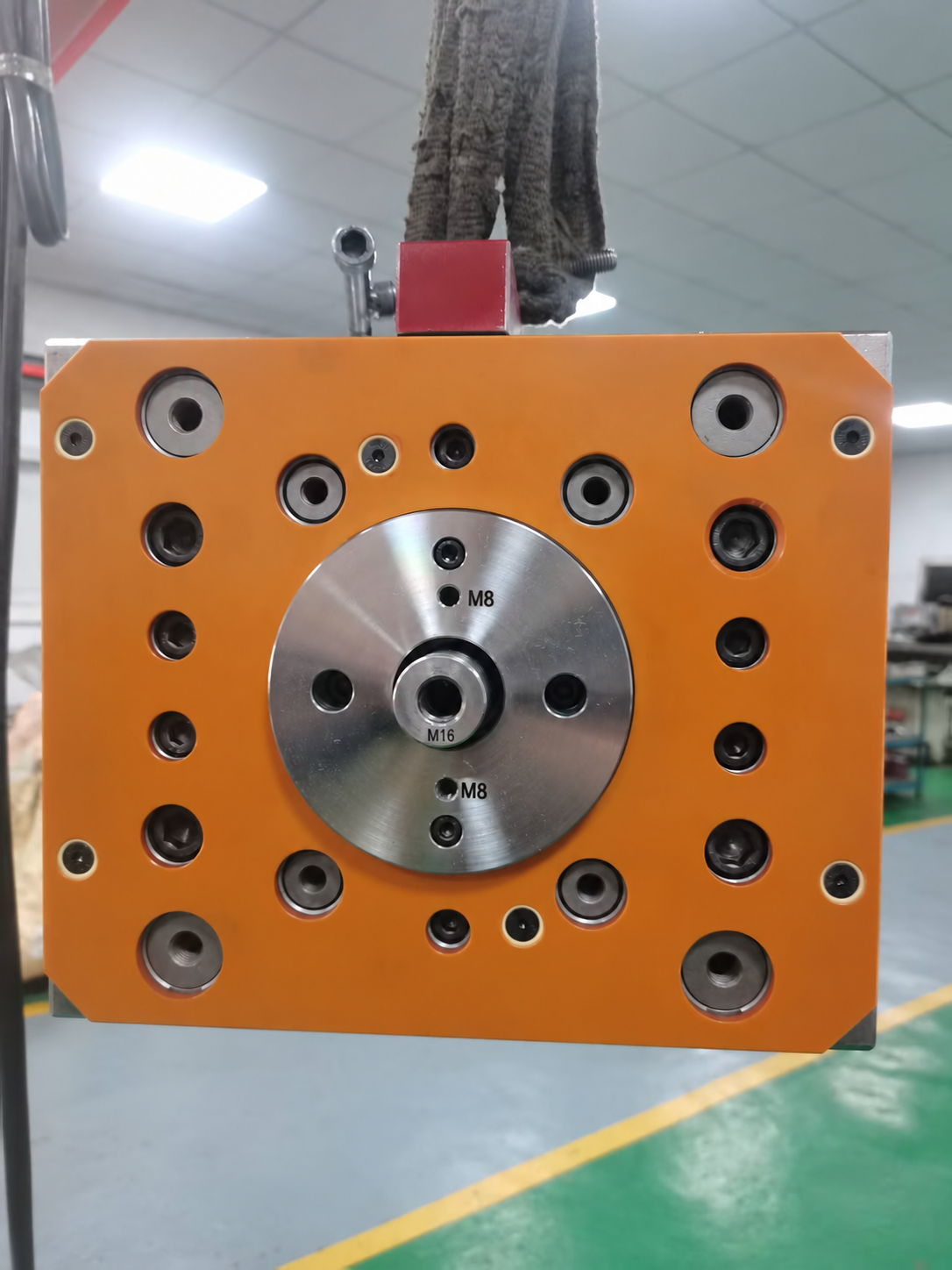

Injection Mold Validation confirms whether a new mold is truly ready for regular production.
A mold may make several good samples and still have hidden problems.
For example, dimensions may pass during a short trial. However, after the mold becomes hot, the part may warp. Flash can also increase. In addition, ejection may become harder.
Therefore, mold validation should not ask only:
“Can this mold make a good part?”
Instead, the better question is:
“Can this mold keep making good parts under real production conditions?”
That is the real purpose of Injection Mold Validation.
What Is Injection Mold Validation?
Injection Mold Validation is a structured check before mass production.
It reviews the mold, molded parts, and production process.
Typical checks include:
- Part dimensions
- Appearance
- Assembly
- Function
- Mold movement
- Cooling
- Ejection
- Process stability
- Cavity balance
- Cycle time
- Mold safety
- Production repeatability
The goal is not to create more paperwork.
Instead, the goal is to find problems before they reach mass production.
A validated mold should run with practical settings.
Also, it should repeat acceptable part quality.
Injection Mold Validation Is More Than a Mold Trial
A mold trial is mainly used to find problems.
During T1 or T2, the team may still adjust:
- Injection speed
- Injection pressure
- Holding pressure
- Cooling time
- Mold temperature
- Gate size
- Venting
- Ejection
- Steel dimensions
Therefore, early mold trials are part of mold development.
Injection Mold Validation comes later.
At this stage, the mold should be close to its final condition.
The main question also changes.
During a mold trial, the question is:
Can we make a good part?
During validation, the question becomes:
Can we keep making good parts?
At Fentor Mold, our Injection Mold service covers DFM, mold design, machining, trials, modification, and final tooling checks before production.
Injection Mold Validation Should Start With the Final Drawing
The final 2D drawing should be the main reference.
However, not every dimension has the same importance.
Critical dimensions often include:
- Assembly positions
- Sealing areas
- Hole locations
- Boss positions
- Insert positions
- Flatness
- Critical wall thickness
- Connector positions
- Snap-fit features
- Overall size
These areas need more attention.
For example, a cosmetic dimension may have little effect on function.
However, a small error on a sealing surface may cause leakage.
Therefore, Injection Mold Validation should focus first on functional dimensions.
Critical Dimensions Must Be Stable, Not Just Passing
A dimension can pass and still be risky.
For example, the drawing may require:
30.00 ±0.10 mm
The allowed range is:
29.90–30.10 mm
Now suppose the part measures 30.09 mm.
It passes.
However, it is already close to the upper limit.
A small process change may push later parts outside tolerance.
Therefore, validation should check more than PASS or FAIL.
Instead, critical dimensions should stay within a safe range.
This gives production more room for normal variation.
Injection Mold Validation Should Check Several Parts
One good sample is not enough.
Therefore, several parts should be checked under stable conditions.
Important items may include:
- Critical dimensions
- Part weight
- Appearance
- Warpage
- Assembly
- Functional areas
Next, compare the results.
If they are similar, the mold is more likely to be stable.
However, large differences need investigation.
The cause may come from the mold, process, material, or measurement method.
Multi-Cavity Molds Need Cavity-by-Cavity Validation
Multi-cavity molds need extra control.
Each cavity may behave differently.
For example, one cavity may fill faster.
Another cavity may run hotter.
Meanwhile, a third cavity may show more flash.
Possible causes include:
- Gate size
- Runner balance
- Cooling
- Venting
- Cavity dimensions
- Insert fitting
Therefore, parts should remain traceable by cavity.
Do not mix all samples before inspection.
Otherwise, one weak cavity may be hidden by good parts from the others.
Our article on Multi-Cavity Injection Molding explains why cavity tracking helps find hidden production problems.
Injection Mold Validation Must Include Appearance
Dimensions are only part of validation.
Appearance also needs checking.
Typical defects include:
- Flash
- Sink marks
- Weld lines
- Flow marks
- Burn marks
- Gate marks
- Ejector marks
- Scratches
- Parting line mismatch
- Gloss variation
- Texture problems
The standard depends on the product.
For example, a hidden internal part may allow small cosmetic defects.
However, a visible housing may need tighter control.
Therefore, approved samples can be used as a visual reference.
Assembly Testing Is Essential
A part can pass inspection and still fail during assembly.
This can happen when several small tolerance changes add together.
For example, a boss may pass.
The mating hole may also pass.
However, the full assembly may still be too tight.
Therefore, real assembly should be tested during Injection Mold Validation.
Typical checks include:
- Screw assembly
- Snap fits
- Clips
- Connectors
- Covers
- Seals
- Metal inserts
- Moving parts
In many cases, assembly testing finds issues that a dimensional report cannot show.
Functional Testing Should Match the Product
Some products need more than assembly.
They also need functional tests.
For example:
- A water tank may need a leak test
- A connector may need insertion testing
- A sensor housing may need sealing checks
- A moving part may need repeated motion
- A snap-fit may need retention testing
Therefore, validation should follow the real product function.
A part may look correct.
However, if it does not work correctly, the mold is not ready.
Injection Mold Validation Needs a Stable Process Window
A mold should not need constant machine adjustment.
If good parts can only be made under one narrow setting, production risk is high.
Important settings include:
- Melt temperature
- Mold temperature
- Injection speed
- Injection pressure
- V/P transfer
- Holding pressure
- Holding time
- Cooling time
- Cycle time
During validation, these settings should stay within a practical range.
The process does not need one fixed number forever.
Instead, it should have enough room for normal production variation.
Our article on Injection Molding Process Window explains why this operating range matters.
Mold Temperature Must Be Stable Before Final Approval
The mold may not be stable during the first few shots.
At the beginning, the steel may still be cool.
However, after many cycles, it reaches normal working temperature.
As a result, part dimensions can change.
Warpage may also change.
Therefore, final checks should be made after the mold temperature becomes stable.
This is especially important for:
- Large molds
- Thick parts
- Glass-filled materials
- Tight-tolerance parts
- Parts with uneven wall thickness
Cooling Should Be Checked During Injection Mold Validation
Cooling has a major effect on part quality.
Poor cooling may cause:
- Warpage
- Uneven shrinkage
- Long cycle time
- Hot spots
- Dimensional drift
- Ejection problems
Therefore, cooling water flow should be checked.
Also, inlet and outlet temperatures may need review.
If one mold area stays too hot, the part may change during long production.
For this reason, cooling should be part of Injection Mold Validation.
Ejection Must Work Smoothly
A mold is not production-ready if parts are difficult to eject.
High ejection force may cause:
- Whitening
- Cracks
- Warpage
- Deep ejector marks
- Broken ribs
- Ejector wear
Therefore, parts should release smoothly.
In addition, the team should check:
- Ejector pin return
- Slider movement
- Lifter movement
- Part sticking
- Automatic part drop
If manual help is needed every cycle, the mold is not ready for mass production.
Injection Mold Validation Should Check Moving Parts
Sliders, lifters, and hydraulic parts must move smoothly.
During a short trial, they may look fine.
However, repeated cycles can reveal new problems.
For example:
- Scratching
- Looseness
- Poor lubrication
- Metal wear
- Sticking
- Position errors
Therefore, moving parts should be checked after repeated running.
Early wear is a warning sign.
It may show poor fitting, weak design, or incorrect hardness.
Flash Should Not Be Solved Only by Lowering Pressure
Flash is a common validation problem.
First, process settings should be checked.
However, the mold should also be inspected.
Possible causes include:
- Poor shut-off fitting
- Parting surface damage
- Weak mold support
- Slider movement
- Mold deformation
Lowering injection pressure may hide the flash.
However, it can also cause short shots or weak packing.
Therefore, the root cause should be found before final approval.
Injection Mold Validation Should Include a Longer Production Run
A short trial may not reveal every problem.
Therefore, a longer pilot run is useful.
During the run, check:
- Dimensional drift
- Part weight
- Mold temperature
- Cooling
- Ejection
- Cavity differences
- Flash
- Scrap rate
- Cycle time
A longer run shows whether the mold stays stable over time.
Our article on Injection Molding Pilot Run explains how short production runs can expose problems before mass production.
Cycle Time Must Be Realistic
A mold may make good parts with a very long cycle.
However, this does not mean the mold is production-ready.
For example, extra cooling time may hide weak cooling design.
As a result, production cost can rise.
Therefore, validation should use a realistic cycle time.
The cycle should balance:
- Part quality
- Cooling
- Ejection
- Production efficiency
A good mold should not need an unrealistic cycle to make acceptable parts.
Injection Mold Validation Should Check Automatic Production
If final production will be automatic, validation should also test automation.
This may include:
- Robot take-out
- Automatic part drop
- Runner separation
- Conveyor handling
- Insert loading
- Part counting
A mold may work well with manual help.
However, automatic production can reveal different issues.
For example, the part may stay on the core.
A runner may also fail to separate.
Therefore, validation should match the real production method.
Mold Safety Must Be Checked
Production validation should also include mold safety.
Important checks may include:
- Water leakage
- Oil leakage
- Loose screws
- Sensor function
- Limit switches
- Ejector return
- Slider position
- Hot runner condition
- Cable condition
A small problem can become serious during long production.
Therefore, these items should be checked before release.
Documentation Is Part of Injection Mold Validation
A validated mold should have clear records.
These may include:
- Final 2D drawing
- Final 3D mold data
- Material specification
- Critical dimensions
- Inspection report
- Approved samples
- Molding parameters
- Cycle time
- Cavity information
- Mold trial report
- Spare parts list
Good records make later production easier.
Also, they help during maintenance, repair, or mold transfer.
What Happens If Injection Mold Validation Fails?
A failed validation does not always mean the mold must be rebuilt.
First, find the real cause.
The issue may come from:
- Mold dimensions
- Process settings
- Material
- Cooling
- Ejection
- Measurement
- Cavity balance
- Assembly tolerance
Therefore, the team should follow a clear order:
Confirm → Analyze → Correct → Run Again → Verify
Only modify steel when the data shows that the mold is the real cause.
This helps reduce unnecessary rework.
When Is an Injection Mold Ready for Production?
A mold is closer to production readiness when:
- Critical dimensions stay stable
- Appearance remains consistent
- Assembly works correctly
- Functional tests pass
- Cavity differences are controlled
- Cooling is stable
- Ejection is smooth
- Moving parts run normally
- Cycle time is realistic
- Scrap rate is acceptable
- Process settings stay stable
- No serious wear appears
No mold is perfect.
However, the main production risks should be understood and controlled.
At Fentor Mold, our Injection Molding Production service connects mold approval with stable molding conditions and repeatable production quality.
Final Thoughts
Injection Mold Validation is the final check between mold development and regular production.
It should confirm more than sample quality.
A good validation should prove that:
- The part meets the drawing
- Critical dimensions remain stable
- Appearance is acceptable
- Assembly and function work
- Cooling and ejection are stable
- The process has a usable range
- The mold can run repeatedly
- Production risk is under control
At Fentor Mold, we prefer to find mold and process problems before mass production begins.
A mold that produces five good samples is promising.
However, a mold that keeps producing good parts under stable conditions is truly ready for production.
