Stack mold injection molding can significantly increase production output without requiring a much larger injection molding machine. For high-volume plastic parts, this can reduce machine cost per part and improve production efficiency.
However, a stack mold is more complex and usually more expensive than a conventional injection mold. Therefore, it does not automatically reduce the total production cost.
The real question is simple: When does the additional tooling investment produce enough savings to make a stack mold worthwhile?
At Fentor Mold, we evaluate production volume, part size, cycle time, mold structure, machine requirements, and expected project life before recommending a stack mold.
What Is Stack Mold Injection Molding?
A conventional injection mold normally has one cavity layer between the fixed and moving sides of the mold.
A stack mold uses two or more cavity levels.
For example:
- Conventional mold: 8 cavities
- Two-level stack mold: 8 + 8 cavities
- Total output: 16 parts per cycle
Therefore, a stack mold can approximately double the number of parts produced per cycle without simply placing twice as many cavities across a much larger mold base.

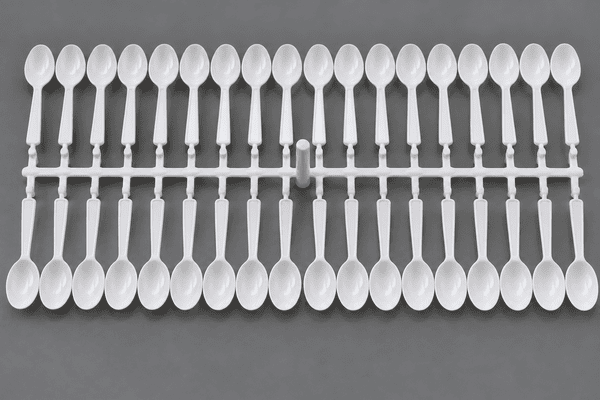

This structure is commonly considered for high-volume products such as:
- Packaging components
- Caps and closures
- Household products
- Medical consumables
- Thin-wall products
- Small automotive components
- Consumer plastic parts
However, the part and production requirements must justify the additional mold complexity.
How Does a Stack Mold Increase Production Output?
Consider a simple example.
A conventional 8-cavity mold produces:
8 parts × 1 cycle = 8 parts
A two-level stack mold with eight cavities on each level produces:
16 parts × 1 cycle = 16 parts
If both molds operate with a similar cycle time, the stack mold can produce close to twice as many parts during the same machine operating period.
For example:
| Mold Type | Cavities | Cycle Time | Parts per Cycle | Approx. Parts/Hour |
|---|---|---|---|---|
| Conventional Mold | 8 | 30 sec | 8 | 960 |
| 2-Level Stack Mold | 16 | 30 sec | 16 | 1,920 |
This example is simplified. Actual cycle time depends on the product, material, cooling, mold structure, and machine.
Still, it shows why stack mold injection molding can become attractive when production volume is high.
Why Is a Stack Mold More Expensive?
A stack mold contains more components and moving systems than a standard mold.
Depending on the design, additional requirements may include:
- Center mold plates
- More complex hot runner systems
- Stack opening mechanisms
- Additional guide components
- More cooling circuits
- More complex ejection
- Longer mold base
- Additional synchronization components
- More machining and fitting work
As a result, both mold manufacturing and assembly require greater precision.
The hot runner system can also represent a significant part of the tooling investment.
Therefore, the initial tooling cost of a stack mold can be substantially higher than that of a conventional mold.
For customers evaluating tooling structures, our custom injection mold manufacturing service includes DFM, mold design, machining, assembly, mold trials, and engineering review.
When Does Stack Mold Injection Molding Reduce Cost?
A stack mold usually becomes more attractive as production volume increases.
The basic relationship is:
Higher tooling investment + lower production cost per part
A conventional mold follows the opposite pattern:
Lower tooling investment + potentially higher production cost per part
Consider this simplified example:
| Cost Factor | Conventional Mold | Stack Mold |
|---|---|---|
| Initial tooling cost | Lower | Higher |
| Parts per cycle | Lower | Higher |
| Machine hours required | Higher | Lower |
| Labor per part | Higher | Potentially lower |
| Production capacity | Lower | Higher |
| Maintenance complexity | Lower | Higher |
| Best suited for | Low–medium volume | High volume |
Therefore, comparing mold prices alone can lead to the wrong decision.
The customer should evaluate the total project cost.
Calculate Cost per Part, Not Only Mold Cost
Suppose a conventional mold costs less than a stack mold.
At first, the conventional mold appears to be the better choice.
However, imagine the project requires several million parts every year. The conventional mold may require nearly twice as many machine hours to produce the same quantity.
Those additional machine hours create costs such as:
- Machine depreciation
- Electricity
- Labor
- Factory overhead
- Maintenance
- Production scheduling
- Quality inspection
Over a long production period, these costs can exceed the initial tooling savings.
Therefore, the important calculation is:
Total Project Cost = Tooling Cost + Production Cost + Maintenance Cost + Other Manufacturing Costs
Then:
Cost per Part = Total Project Cost ÷ Total Production Quantity
This gives a much more useful comparison.
Find the Stack Mold Break-Even Point
The break-even point is where the production savings from a stack mold recover its additional tooling cost.
For example, assume:
| Item | Conventional Mold | Stack Mold |
|---|---|---|
| Tooling Cost | $60,000 | $100,000 |
| Production Cost/Part | $0.18 | $0.14 |
| Additional Tooling Investment | — | $40,000 |
| Saving per Part | — | $0.04 |
The simplified break-even calculation would be:
$40,000 ÷ $0.04 = 1,000,000 parts
In this theoretical example, after approximately one million parts, the additional tooling investment has been recovered through lower production cost.
After that point, additional production can provide a cost advantage.
However, these figures are only an example. Real calculations must use actual tooling quotations, machine rates, cycle times, labor costs, material use, maintenance, and production volumes.
Annual Volume Is a Key Decision Factor
Production volume is one of the first questions to ask when considering stack mold injection molding.
For a project requiring only 20,000 parts, the additional tooling complexity may be difficult to justify.
For a project requiring several million parts per year, the situation can be very different.
Therefore, before choosing the mold structure, estimate:
- Annual production quantity
- Expected project life
- Peak monthly demand
- Required delivery capacity
- Production shifts per day
- Available machine capacity
A high annual volume combined with a long product life gives the stack mold more time to recover its higher initial cost.
Machine Utilization Can Create Major Savings
Injection molding machine time is expensive.
If a conventional mold requires 10,000 machine hours to complete annual demand while a stack mold can produce the same quantity in approximately 5,500 hours, the difference is significant.
The saved machine capacity can then be used for another mold.
This is especially valuable when a factory already operates near full capacity.
Instead of purchasing another injection molding machine, increasing mold productivity may sometimes provide a better return.
For this reason, stack molds are not only about cycle time. They are also about using existing production equipment more efficiently.
Stack Mold Injection Molding Does Not Always Need a Much Larger Machine
One major advantage of the stack concept is the cavity arrangement.
If engineers simply increase a conventional mold from 8 to 16 cavities on the same parting level, the mold may become much wider.
That can require:
- Larger platen dimensions
- Greater tie-bar spacing
- Larger mold weight capacity
- A larger injection molding machine
A stack mold distributes cavities across multiple levels instead.
Therefore, it may increase output while keeping the projected mold area more manageable.
However, engineers must still check shot size, mold thickness, opening stroke, injection capacity, machine platen size, and other machine specifications.
Clamp Force Still Needs Engineering Calculation
It is incorrect to assume that doubling the number of cavity levels always doubles the required clamp force.
Clamp force depends heavily on the projected area exposed to cavity pressure and the specific stack mold arrangement.
Therefore, engineers should calculate the actual projected area and expected cavity pressure rather than simply multiplying the cavity count.
Machine selection should also consider:
| Machine Requirement | Why It Matters |
|---|---|
| Clamp force | Prevent mold opening and flash |
| Shot size | Supply enough material |
| Mold thickness | Fit the stack mold |
| Opening stroke | Allow mold movement and ejection |
| Tie-bar spacing | Accommodate mold dimensions |
| Platen capacity | Support mold size and weight |
These checks should happen before the stack mold design is finalized.
Cooling Can Determine Whether the Stack Mold Saves Money
Adding more cavities does not help much if the cycle time becomes significantly longer.
For many plastic parts, cooling takes the largest portion of the molding cycle.
Therefore, a stack mold requires efficient cooling across all cavity levels.
Poor cooling can create:
- Longer cycle time
- Uneven shrinkage
- Warpage
- Dimensional variation
- Different part quality between cavity levels
The cooling layout should therefore provide reasonably balanced heat removal throughout the mold.
A stack mold that produces twice as many parts but requires a much longer cycle may provide less cost benefit than expected.
Hot Runner Design Is Critical
Many stack molds use a hot runner system to distribute melt between cavity levels.
This system needs balanced filling.
If one cavity level fills differently from another, the mold may produce:
- Part weight variation
- Different packing conditions
- Flash
- Short shots
- Dimensional variation
Therefore, runner balance, nozzle position, pressure loss, temperature control, and gate design need careful evaluation.
For complex projects, Moldflow analysis can help identify potential filling and pressure differences before mold manufacturing.
At Fentor Mold, these factors can be reviewed during the DFM and mold design stages before machining begins.
Maintenance Cost Must Be Included
Stack molds have more moving components than conventional molds.
As a result, maintenance can be more demanding.
Potential maintenance areas include:
- Hot runner components
- Guide systems
- Opening mechanisms
- Ejection systems
- Cooling connections
- Wear plates
- Synchronization mechanisms
Therefore, the lowest theoretical cost per part does not always represent the lowest real manufacturing cost.
A good cost analysis should include expected mold maintenance over the complete project life.
When Is a Conventional Mold Better?
A conventional mold may be the more practical option when:
- Production volume is relatively low
- Product design may still change
- Initial tooling budget is limited
- Production capacity is not a major concern
- The part geometry makes stack molding difficult
- Mold maintenance needs to remain simple
- Expected product life is short
For early-stage projects, a simpler mold can also reduce financial risk.
If the design still requires market or functional validation, prototype injection molding may be more suitable before investing in high-output production tooling.
When Does Stack Mold Injection Molding Make Sense?
A stack mold becomes more attractive when several conditions appear together:
| Project Condition | Stack Mold Potential |
|---|---|
| Very high annual volume | High |
| Long project life | High |
| Stable product design | High |
| High machine-hour cost | High |
| Limited factory capacity | High |
| Simple high-volume part | High |
| Very low production volume | Low |
| Frequent design changes | Low |
| Limited tooling budget | Low |
However, there is no universal production quantity where every project should switch to a stack mold.
The break-even point depends on the economics of each individual project.
Compare Both Options Before Tooling
For a high-volume project, the best approach is often to compare two tooling concepts before placing the mold order.
For example:
Option A: Conventional Mold
- Tooling investment
- Cavities
- Expected cycle
- Machine size
- Annual machine hours
- Estimated cost per part
Option B: Stack Mold
- Tooling investment
- Total cavities
- Expected cycle
- Machine size
- Annual machine hours
- Estimated cost per part
Then calculate the total cost over one, three, or five years.
This gives the purchasing and engineering teams a much clearer basis for making the tooling decision.
For stable high-volume programs, combining efficient tooling with controlled injection molding production can reduce the total manufacturing cost over the project life.
Final Thoughts
Stack mold injection molding can reduce production cost, but mainly when the production savings are large enough to recover the higher tooling investment.
High annual volume, stable product design, long project life, machine capacity, cycle time, and cost per machine hour all influence the final result.
Therefore, do not select a stack mold simply because it produces more parts per cycle. Likewise, do not reject it simply because the mold quotation is higher.
The better approach is to compare the total project cost and cost per part.
