When you are sourcing a precision plastic part, material selection is only the first decision. The bigger question is whether the material can be molded consistently at the required quality and production volume.
POM injection molding is often selected for parts that need low friction, good wear resistance, stiffness, and stable dimensions. Gears, bushings, rollers, clips, guides, valves, and other mechanical components are common examples.
For a purchasing manager, however, choosing POM is not simply a material decision. The injection mold, part design, molding process, tolerance requirements, production volume, and supplier capability all affect the final cost and quality.
A POM part may look simple on a drawing but still become difficult to manufacture if the wall thickness is uneven, the tolerance is too tight, the gate is poorly positioned, or the mold cooling is not properly designed.
This guide explains what buyers should know about POM injection molding, from material selection and the molding process to applications, mold design, common defects, and supplier evaluation.
- POM is widely used for precision mechanical plastic parts because of its stiffness, wear resistance, low friction, and dimensional stability.
- POM-C and POM-H have different characteristics and should be selected according to the application.
- POM requires controlled processing because excessive heat or long residence time can cause material degradation.
- Mold cooling and part design have a strong influence on POM dimensional stability.
- Thick sections can create sink marks, warpage, and internal dimensional problems.
- Tight tolerances should be discussed with the mold manufacturer before tooling starts.
- Gate location, venting, ejection, and cooling should be reviewed during DFM.
- For buyers, the lowest mold quotation is not necessarily the lowest total project cost.
What Is POM Injection Molding?
POM stands for polyoxymethylene, also commonly called acetal.
It is an engineering thermoplastic known for its combination of strength, stiffness, low friction, wear resistance, and good dimensional stability.
POM injection molding uses an injection molding machine to melt POM resin and inject it into a mold cavity. After filling and packing, the material cools and solidifies before the mold opens and the part is ejected.
The basic process is similar to other thermoplastics, but POM requires careful temperature control.
This is because POM can degrade when exposed to excessive heat or an overly long residence time. For a production project, the processor therefore needs to follow the processing recommendations for the specific POM grade rather than treating all POM materials in exactly the same way.
For buyers, this is important because the material grade should be confirmed before the mold design is finalized.
If the project is still at the development stage, Fentormold Prototype Injection Molding can help validate the plastic part before moving into full production.
Why Do Manufacturers Choose POM?
POM is not usually selected simply because it is inexpensive.
It is chosen when the plastic part needs a combination of mechanical performance and repeatable movement.
Low Friction
POM has good sliding properties and is commonly used in components that move against another surface.
Typical examples include:
- Bushings
- Rollers
- Slides
- Gears
- Bearings
- Guides
This can reduce the need for additional lubrication in some applications, depending on the design and operating conditions.
Good Wear Resistance
POM performs well in applications involving repeated movement.
This makes it useful for mechanical components that may experience thousands or millions of operating cycles.
However, actual wear performance depends on the mating material, load, speed, temperature, surface condition, and specific POM grade.
Good Stiffness
POM is relatively rigid compared with many general-purpose plastics.
This helps when a component must maintain its shape under mechanical loading.
For example, a gear or precision housing cannot simply deform every time it is loaded. The stiffness of POM makes it suitable for many such applications.
Dimensional Stability
Dimensional stability is one of the most important reasons POM is used for precision components.
For a buyer, this matters when the part has to fit with:
- Metal shafts
- Bearings
- Other plastic components
- Snap-fit features
- Gears
- Precision housings
However, good material properties do not automatically guarantee tight tolerances.
The mold design, cooling system, processing conditions, measurement method, and part geometry all contribute to the final dimensions.
POM-C vs. POM-H: Which Should Buyers Choose?
Two common types of POM are POM-C and POM-H.
POM-C is generally associated with copolymer grades, while POM-H refers to homopolymer grades.
The difference is important when selecting material for a production project.
| Property | POM-C | POM-H |
|---|---|---|
| Chemical resistance | Very good | Good |
| Thermal stability during processing | Good | Good, but requires careful processing |
| Stiffness | High | High |
| Wear resistance | Very good | Excellent in many applications |
| Typical use | General engineering parts | Precision mechanical components |
| Availability | Widely available | Widely available |
The actual performance depends on the specific resin grade.
Therefore, a purchasing specification should not simply say:
“POM material required.”
It is better to specify the required resin manufacturer and grade when the application has critical mechanical or dimensional requirements.
If the customer has not selected a grade, the mold supplier and material supplier should discuss the application before production tooling begins.
What Is the POM Injection Molding Process?
The POM injection molding process can be divided into several main stages.
1. Material Preparation
The first step is to prepare the POM resin according to the supplier’s recommendations.
Material should be stored properly and processed according to the recommended temperature range.
For production purchasing, it is worth confirming with the supplier:
- Resin manufacturer
- Material grade
- Color
- Additives
- Reinforcement
- Flame-retardant requirements
- Required certifications
This avoids a common problem where the mold is designed for one material grade but production later changes to another.
2. Plasticizing
POM pellets are fed into the injection unit and heated until they reach a suitable processing state.
Temperature control is important.
If the material is overheated or remains in the barrel for too long, degradation can occur.
This can result in:
- Discoloration
- Gas
- Burn marks
- Poor surface appearance
- Reduced material performance
The actual processing temperature should always follow the specific resin supplier’s technical data.
3. Filling the Mold
The molten POM is injected through the runner and gate into the mold cavity.
At this stage, the gate location becomes important.
A poor gate position can create:
- Long flow paths
- Weld lines
- Uneven filling
- Excessive injection pressure
- Appearance problems
For precision parts, gate location should be reviewed before mold manufacturing.
4. Packing and Holding
After the cavity is filled, holding pressure helps compensate for material shrinkage while the part begins to solidify.
If packing is insufficient, dimensional problems and sink marks can occur.
However, simply increasing holding pressure is not always the correct solution.
Part geometry, gate size, cooling, and material behavior should also be reviewed.

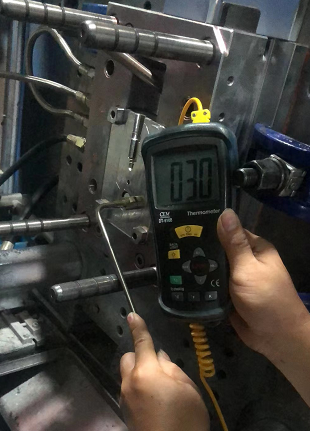

5. Cooling
Cooling is one of the most important stages of POM injection molding.
The part must cool sufficiently before ejection.
If cooling is uneven, different areas may shrink differently.
This can lead to:
- Warpage
- Dimensional variation
- Ovality
- Flatness problems
- Assembly problems
For precision POM parts, the cooling circuit should be designed around the actual part geometry.
6. Ejection
After sufficient cooling, the mold opens and ejector components remove the part.
Ejection should be distributed carefully.
If ejector force is concentrated in a small area, the part may deform or show visible ejector marks.
This is particularly important for thin-wall components and precision mechanical parts.
POM Injection Molding Design Rules
A buyer does not need to become a mold designer, but understanding the main design rules can make supplier communication much easier.
Keep Wall Thickness Consistent
Uneven wall thickness is one of the most common sources of molding problems.
A thick section cools differently from a thin section.
This difference can contribute to:
- Sink marks
- Warpage
- Internal stress
- Dimensional variation
If a product requires structural strength, ribs or gussets are often better than simply making the entire wall thicker.
Avoid Large Solid Sections
Large masses of POM take longer to cool and may shrink differently from surrounding areas.
This can cause problems that are not obvious from the original CAD model.
When reviewing a supplier’s DFM report, pay particular attention to:
- Thick bosses
- Thick ribs
- Mounting areas
- Screw towers
- Reinforcement structures
Use Appropriate Draft
Draft allows the part to leave the mold without excessive friction.
Insufficient draft can create:
- Scratches
- Drag marks
- Ejection problems
- Deformation
The required draft depends on the part geometry and mold surface finish.
A good supplier should identify areas with insufficient draft during the DFM review instead of waiting until the first mold trial.
Control Sharp Corners
Sharp internal corners can increase stress concentration and make filling more difficult.
Adding suitable radii can improve:
- Material flow
- Part strength
- Mold machining
- Mold durability
This is especially useful for mechanical POM components.
POM Mold Design: What Should Buyers Check?
When purchasing a POM injection mold, the mold design deserves as much attention as the material.
Gate Design
The gate determines where the material enters the cavity.
For a precision component, the gate should be located with consideration for:
- Functional surfaces
- Cosmetic surfaces
- Flow length
- Weld lines
- Filling balance
- Ejection
- Post-molding gate removal
A supplier should be able to explain why the proposed gate location was selected.
Cooling System
Cooling is especially important when dimensional stability is critical.
A good cooling design should provide reasonably consistent cooling around the important functional areas of the part.
For multi-cavity molds, the cavities should also have balanced thermal conditions as much as practical.
Venting
Air must escape as the cavity fills.
Poor venting can cause:
- Burn marks
- Short shots
- Gas marks
- Weld line problems
A supplier’s mold design should therefore include appropriate venting at expected air-trap and end-of-fill locations.
Ejection System
POM parts should be ejected without excessive deformation.
The mold designer should consider:
- Ejector pin locations
- Ejector force
- Part wall thickness
- Cosmetic surfaces
- Deep cores
- Undercuts
Poor ejection design can create problems even when the cavity itself is manufactured accurately.
Common POM Injection Molding Defects
Knowing the common defects helps buyers evaluate samples more effectively.
1. Warpage
Warpage is one of the main concerns for precision POM components.
It can be caused by:
- Uneven cooling
- Uneven wall thickness
- Poor gate location
- Residual stress
- Incorrect processing conditions
A part may look acceptable immediately after molding but move out of tolerance after cooling.
For this reason, dimensional inspection should be performed after the part has reached a stable condition.
You can also see our related guide on How to Prevent Injection Molding Warpage After Cooling for a broader discussion of warpage control.
2. Sink Marks
Sink marks are usually associated with thick sections.
They can appear around:
- Bosses
- Ribs
- Mounting points
- Thick walls
The solution may involve changing the geometry rather than simply increasing molding pressure.
3. Short Shots
A short shot occurs when the cavity is not completely filled.
Potential causes include:
- Insufficient injection pressure
- Poor gate design
- Long flow path
- Thin wall
- Insufficient venting
- Improper processing conditions
The correct solution depends on the actual cause.
4. Flash
Flash occurs when molten plastic escapes through an unwanted gap in the mold.
Common causes include:
- Excessive injection pressure
- Parting-line problems
- Worn mold surfaces
- Insufficient clamping force
- Incorrect mold fit
For precision POM parts, flash around functional edges can be particularly problematic because it may interfere with assembly.
5. Burn Marks
Burn marks can occur when trapped air or gas becomes compressed during filling.
Poor venting is one possible cause.
Other processing conditions should also be checked before deciding on the final corrective action.
6. Weld Lines
Weld lines appear when separate flow fronts meet.
They can be caused by:
- Multiple gates
- Holes
- Inserts
- Ribs
- Complex geometry
The location of the weld line matters.
A weld line on a hidden area may be acceptable, while the same weld line on a critical mechanical feature may require a design change.
How Can Buyers Reduce POM Injection Molding Problems?
The easiest time to solve a molding problem is before the mold is built.
1. Give the Supplier Complete Information
When requesting a quotation, provide as much information as possible:
- 3D CAD file
- 2D drawing
- Material grade
- Annual quantity
- Expected tool life
- Surface finish
- Critical dimensions
- Assembly requirements
- Cosmetic requirements
- Packaging requirements
Incomplete information usually leads to assumptions.
Those assumptions can later become tooling changes.
2. Identify Critical Dimensions
Not every dimension needs the same tolerance.
Tell the mold manufacturer which dimensions are critical for function.
For example:
- Shaft hole diameter
- Gear dimensions
- Bearing seat
- Snap-fit dimensions
- Assembly interfaces
This allows the supplier to focus mold design and inspection resources where they matter most.
3. Review the DFM Before Steel Cutting
A DFM review should be completed before mold manufacturing starts.
Pay particular attention to:
- Parting line
- Gate position
- Draft
- Wall thickness
- Ejection
- Undercuts
- Cooling
- Critical dimensions
This is one of the most effective ways to reduce later mold modifications.
4. Clarify the Mold Standard
For international projects, buyers should confirm the mold standard before approving the design.
This may include:
- Mold base standard
- Steel grade
- Ejector system
- Cooling connections
- Component standards
- Spare parts
- Cavity numbering
Clear specifications at the quotation stage can prevent misunderstandings later.
POM Injection Molding Applications
POM is especially suitable for applications involving mechanical movement, repeated loading, or precision assembly.
Automotive Components
POM can be used for:
- Clips
- Bushings
- Gears
- Guides
- Adjustment components
- Functional mechanisms
For automotive applications, material grade and environmental requirements should be confirmed before production.
Electrical and Electronics
Typical applications include:
- Connectors
- Switch components
- Cable management parts
- Precision mechanisms
- Small gears
Dimensional stability is often important because these components must fit together accurately.
Industrial Equipment
POM is commonly considered for:
- Rollers
- Bushings
- Bearings
- Gears
- Guides
- Mechanical supports
These applications can take advantage of POM’s wear and friction characteristics.
Consumer Products
POM can also be used for:
- Zipper components
- Small gears
- Moving mechanisms
- Clips
- Sliding components
The final material grade should be selected according to the actual load, temperature, and operating environment.
POM Injection Molding Cost: What Affects the Price?
When comparing quotations, buyers often focus on the mold price.
However, the mold is only one part of the total project cost.
Important cost factors include:
- Part size
- Number of cavities
- Mold steel
- Mold life
- Surface finish
- Mold complexity
- Slides or lifters
- Hot runner requirements
- Tolerance requirements
- Annual production volume
- Injection molding cycle time
- Secondary operations
A four-cavity mold may cost more than a single-cavity mold, but it can produce four parts per cycle.
For high-volume production, the higher initial tooling investment may therefore reduce the cost per part.
This is why buyers should compare the total production cost, not only the initial mold quotation.
How to Choose a POM Injection Molding Supplier
For a procurement team, the right supplier should be evaluated on more than price.
Before placing an order, consider asking:
Can the supplier handle engineering-grade materials?
The supplier should understand the processing requirements of POM and be able to work with the specified material grade.
Can they review the part before mold manufacturing?
A capable mold maker should identify potential issues with:
- Wall thickness
- Draft
- Gate location
- Ejection
- Cooling
- Tolerances
Can they manufacture the mold and run production?
Using one supplier for mold manufacturing and injection molding can simplify communication between tooling and production teams.
Fentormold provides both Injection Mold Manufacturing and Injection Molding Production, allowing tooling and production requirements to be considered together.
Can they provide inspection data?
For precision POM components, inspection should be based on the customer’s critical dimensions and functional requirements.
A supplier should be able to provide appropriate dimensional inspection and sample approval support.
Questions to Ask Before Ordering a POM Injection Mold
Before approving a quotation, a purchasing manager can ask the supplier:
- Which POM grade will be used?
- Is the material POM-C or POM-H?
- What mold steel is proposed?
- How many cavities are recommended?
- Where will the gate be located?
- How will the mold be cooled?
- Which dimensions are considered critical?
- How will the parts be ejected?
- What is the expected mold life?
- What is the estimated mold lead time?
- Will a DFM report be provided?
- How will the first samples be inspected?
- What happens if the samples are outside the agreed specifications?
- What spare mold components will be supplied?
These questions can reveal differences between suppliers that are not obvious from a quotation.
POM Injection Molding vs. Other Engineering Plastics
POM is often compared with materials such as PA, PC, ABS, and PP.
The right choice depends on the application.
| Requirement | POM | PA | PC | ABS |
|---|---|---|---|---|
| Low friction | Excellent | Good | Moderate | Moderate |
| Wear resistance | Excellent | Good–Excellent | Moderate | Moderate |
| Stiffness | High | High | High | Medium–High |
| Impact resistance | Good | Good–Excellent | Excellent | Good |
| Dimensional stability | Good | Moisture-dependent | Good | Good |
| Typical use | Gears, bushings, guides | Mechanical parts | Housings, impact parts | Housings, consumer products |
This comparison should only be used as a starting point.
For example, POM may be a better choice for a low-friction gear, while PC may be more suitable for a transparent protective housing.
The application should determine the material, not the other way around.
Final Thoughts
POM injection molding is a practical solution for precision plastic components that need stiffness, wear resistance, low friction, and reliable mechanical performance.
For buyers, however, choosing POM is only the beginning.
The final result depends on the material grade, part design, mold structure, cooling system, gate location, processing conditions, and quality control.
The most important point is to involve the mold manufacturer early.
A good DFM review can identify thick sections, difficult ejection areas, unrealistic tolerances, poor gate locations, and cooling problems before steel is cut.
For production projects, it is also important to evaluate the supplier based on the complete manufacturing process rather than comparing mold prices alone.
The right supplier should be able to help you answer three questions before production starts:
Can the part be molded reliably?
Can the required dimensions be maintained in production?
Can the tooling and production cost meet the project target?
If the answer to all three is clear, POM can be an excellent material for long-term injection molding production.
