Choosing the right flame retardant plastics is important when an injection molded part must meet electrical, thermal, or fire-safety requirements. However, flame resistance alone should not determine the material.
The resin must also meet the required strength, heat resistance, dimensional stability, appearance, and molding performance.
For this reason, engineers often compare several flame-retardant grades before starting mold development.
Common options include flame-retardant ABS, PC/ABS, PC, PA, PBT, and high-performance materials such as PPS. The best choice depends on the product environment and the required flame rating.
This guide explains how to select flame retardant plastics for injection molding, what UL 94 ratings mean, and what engineers should consider before tooling begins.

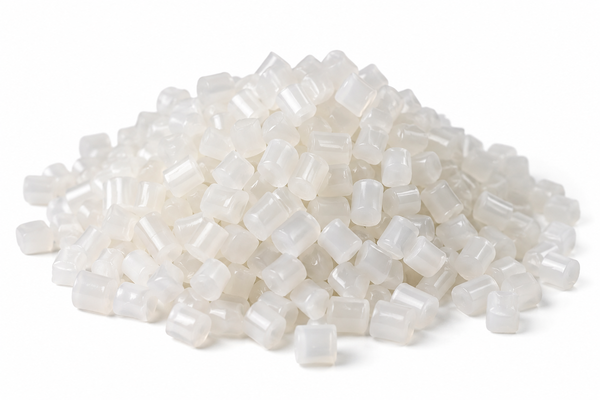

What Are Flame Retardant Plastics?
Flame retardant plastics are polymer materials designed to reduce ignition, slow flame spread, or help the material stop burning after the ignition source is removed.
Manufacturers may achieve this performance by using flame-retardant additives or by selecting polymers that already have strong heat and flame resistance.
However, flame retardant does not mean completely fireproof.
The actual performance depends on several factors, including:
- Resin type
- Flame-retardant formulation
- Part thickness
- Additive content
- Test method
- Product geometry
- Operating temperature
- Final application
Therefore, engineers should always evaluate the exact material grade rather than simply specifying “flame-retardant plastic.”
Why Are Flame Retardant Plastics Used in Injection Molding?
Many plastic products operate close to electrical circuits, motors, batteries, heating elements, or power supplies.
As a result, the plastic may need to limit flame propagation if overheating or an electrical failure occurs.
Common applications include:
- Electrical connectors
- Battery components
- Power supply housings
- Electronic enclosures
- Charging equipment
- Automotive electrical parts
- Appliance components
- Industrial control systems
- Switches and sockets
- Sensor housings
In these applications, flame retardant plastics can improve product safety and help manufacturers meet applicable standards.
However, material certification alone does not guarantee that the finished product will meet every regulatory requirement. The final product design and application must also be evaluated.
Understanding UL 94 Ratings for Flame Retardant Plastics
One of the most common references for evaluating plastic flammability is UL 94.
Material datasheets often show ratings such as:
- HB
- V-2
- V-1
- V-0
- 5VB
- 5VA
Among these, UL 94 V-0 is commonly requested for electrical and electronic injection molded parts.
UL 94 HB
HB is a horizontal burning classification.
It represents a lower level of flame resistance compared with the vertical V classifications.
It may be acceptable for some products where strict flame-retardant performance is not required.
UL 94 V-2
V-2 materials can stop burning within the required test period. However, flaming particles may drip during testing.
Therefore, this rating may not suit applications where burning droplets could create another ignition risk.
UL 94 V-1
V-1 offers better performance than V-2.
The material must stop burning within specified limits, and flaming drips are more restricted.
UL 94 V-0
V-0 is widely specified for flame retardant plastics used in electrical and electronic products.
The material must extinguish relatively quickly after the flame source is removed and must meet specific test requirements.
However, one important detail is often missed:
UL 94 ratings depend on material thickness.
A resin may achieve V-0 at one wall thickness but only V-1 or V-2 at a thinner section.
Therefore, always check the certified minimum thickness in the material datasheet.
Common Flame Retardant Plastics for Injection Molding
There is no single material that works for every flame-retardant application.
Instead, engineers should compare mechanical performance, heat resistance, electrical properties, appearance, cost, and processing requirements.
1. Flame Retardant ABS
Flame-retardant ABS is commonly used when good appearance, reasonable impact strength, and easy processing are important.
Typical applications include:
- Electrical housings
- Control panels
- Appliance components
- Electronic covers
- Office equipment
Advantages
Flame-retardant ABS normally provides:
- Good surface appearance
- Stable molding performance
- Good impact resistance
- Easy coloring
- Moderate material cost
- Good dimensional stability
In addition, ABS is usually easier to mold than many high-temperature engineering plastics.
Limitations
Its heat resistance is generally lower than PC, PC/ABS, PBT, PPS, or other engineering resins.
Therefore, it may not be suitable near high-temperature components.
For more details about different ABS grades, see our guide to ABS injection molding.
2. Flame Retardant PC/ABS
Flame-retardant PC/ABS is widely used for electronic housings and industrial components.
It combines some of the toughness and heat resistance of polycarbonate with the processing and surface advantages of ABS.
Typical applications include:
- Electronic equipment housings
- Charging systems
- Automotive interior electrical parts
- Control units
- Industrial enclosures
Why Choose Flame Retardant PC/ABS?
Compared with standard ABS, PC/ABS can provide:
- Better heat resistance
- Higher impact strength
- Good dimensional stability
- Good surface quality
- Suitable flame-retardant grades
For this reason, flame-retardant PC/ABS is often a strong candidate for structural housings.
It is also frequently used where appearance and mechanical performance matter at the same time.
Fentor Mold often evaluates the resin grade together with wall thickness, gate location, part structure, and expected operating temperature before mold design starts.
3. Flame Retardant Polycarbonate
Polycarbonate already provides strong impact resistance and relatively good heat performance.
Flame-retardant PC grades can add improved flammability performance for electrical applications.
Common uses include:
- Electrical covers
- Battery-related components
- Industrial housings
- Lighting components
- Protective parts
Main Advantages
Flame-retardant PC may provide:
- High impact resistance
- Good heat resistance
- Strong dimensional performance
- Good electrical insulation properties
However, polycarbonate requires careful material drying.
Moisture can cause:
- Silver streaks
- Bubbles
- Surface defects
- Reduced mechanical properties
- Material degradation
Therefore, proper resin handling is important.
You can also read our PC injection molding guide for more information about polycarbonate processing.
4. Flame Retardant PA66 and Nylon
Flame-retardant nylon grades are common in electrical and mechanical applications.
Glass fiber is often added when higher stiffness and dimensional strength are required.
Typical products include:
- Electrical connectors
- Switch components
- Terminal blocks
- Automotive electrical parts
- Structural components
Advantages
Flame-retardant PA materials can provide:
- High mechanical strength
- Good heat resistance
- Good wear resistance
- Strong electrical performance
- Good fatigue resistance
Glass-filled PA66 can provide even higher stiffness.
However, there are several processing challenges.
Nylon absorbs moisture easily. Therefore, manufacturers must control drying before molding.
Glass fiber also makes shrinkage more directional.
As a result, warpage can become a major concern.
Furthermore, glass-filled grades increase mold wear. Gate areas, runners, cavities, and inserts may therefore require more wear-resistant steel or surface treatment.
5. Flame Retardant PBT
PBT is another common engineering material for electrical parts.
It offers good electrical insulation, dimensional stability, chemical resistance, and molding productivity.
Common applications include:
- Connectors
- Automotive sensors
- Electrical components
- Switches
- Coil bobbins
Why PBT Works Well
Flame-retardant PBT can offer:
- Good electrical properties
- Fast crystallization
- Good dimensional stability
- Chemical resistance
- Good heat resistance
Glass-filled flame-retardant PBT is especially common in structural electrical components.
However, gate position and fiber orientation strongly affect shrinkage and warpage.
Therefore, mold design should consider material flow direction early.
Our article about PBT injection molding explains these processing issues in more detail.
6. PPS for High-Temperature Flame Retardant Applications
For more demanding environments, PPS can be considered.
PPS provides excellent heat resistance, chemical resistance, dimensional stability, and inherent flame resistance.
Typical applications include:
- Automotive electrical components
- Industrial connectors
- High-temperature sensor parts
- Pump components
- Electrical insulation parts
PPS is commonly reinforced with glass fiber.
Therefore, it can provide very high stiffness even at elevated temperatures.
However, the material costs more than ABS, PC/ABS, or PBT.
In addition, glass-filled PPS can be abrasive.
For this reason, tooling steel selection and mold wear should be considered carefully.
Comparison of Common Flame Retardant Plastics
| Material | Heat Resistance | Impact Strength | Dimensional Stability | Processing Difficulty | Typical Cost |
|---|---|---|---|---|---|
| FR ABS | Medium | Good | Good | Easy | Low–Medium |
| FR PC/ABS | Medium–High | Very Good | Good | Medium | Medium |
| FR PC | High | Excellent | Good | Medium–High | Medium–High |
| FR PA66 | High | Good | Medium–Good | Medium–High | Medium |
| FR PBT | High | Medium | Very Good | Medium | Medium |
| PPS | Very High | Medium | Excellent | High | High |
This table provides only a general comparison.
The final material should always be selected according to the exact resin grade and product requirements.
How to Select Flame Retardant Plastics
Selecting flame retardant plastics should begin with the real operating conditions of the product.
Instead of asking only, “Which material is V-0?”, engineers should review several requirements together.
1. Confirm the Required Flame Rating
First, determine the exact flame requirement.
For example:
- UL 94 HB
- UL 94 V-2
- UL 94 V-1
- UL 94 V-0
Do not simply choose the highest rating without considering the application.
Higher-performance grades may increase material cost or change mechanical properties.
Therefore, select the rating required by the actual product standard.
2. Check the Certified Wall Thickness
This is one of the most important steps.
Suppose a material has UL 94 V-0 certification at 1.5 mm.
That does not automatically mean a 0.8 mm part will also meet V-0.
Therefore, compare the minimum certified thickness with your actual plastic wall thickness.
If the design contains thin sections, check those areas carefully.
3. Consider Operating Temperature
Temperature can quickly eliminate unsuitable materials.
For moderate-temperature housings, flame-retardant ABS may work well.
However, if the part sits near:
- Motors
- Batteries
- Power electronics
- Heating components
- Engine areas
a higher-temperature material may be necessary.
In those cases, PC/ABS, PC, PA, PBT, PPS, or another engineering resin may provide better performance.
4. Evaluate Mechanical Requirements
Flame performance should not reduce the required structural strength.
Consider:
- Impact load
- Tensile strength
- Stiffness
- Creep
- Vibration
- Fatigue
- Screw boss strength
- Snap-fit performance
For example, a highly rigid glass-filled material may work well for a connector.
However, it may not suit an enclosure that needs strong impact resistance.
Therefore, flame rating and mechanical requirements should be evaluated together.
5. Check Electrical Requirements
Many flame retardant plastics are used in electrical systems.
Therefore, the application may also require specific:
- Dielectric strength
- Comparative tracking index
- Volume resistivity
- Arc resistance
- Electrical insulation performance
These properties can be just as important as UL 94 classification.
For connector or power-related applications, engineers should review the complete material datasheet.
6. Consider Appearance Requirements
Flame-retardant additives can affect the appearance of plastic.
Depending on the grade, you may see differences in:
- Gloss
- Color stability
- Flow marks
- Surface texture
- Fiber exposure
- Weld lines
This becomes especially important for visible electronic housings.
For example, a glass-filled flame-retardant nylon may provide excellent strength but may not provide the smooth cosmetic surface expected from ABS or PC/ABS.
Therefore, material selection should consider the visible surface requirements before tooling begins.
Flame Retardant Plastics Can Affect Mold Design
Changing from standard resin to a flame-retardant grade is not always a simple material substitution.
The resin can influence mold design.
At Fentor Mold, we normally review the exact plastic grade during the injection mold design and manufacturing process rather than waiting until the mold trial.
Several areas may need special attention.
Gate Design
Flame-retardant engineering plastics may require different gate sizes or positions.
Poor gate design can cause:
- Excessive shear
- Burn marks
- Short shots
- Weld lines
- Material degradation
Therefore, the gate should match the material viscosity and part geometry.
Venting
Good venting is especially important.
Trapped gas can create:
- Burn marks
- Black spots
- Incomplete filling
- Surface defects
For thin-wall electrical components, air can become trapped very quickly.
Therefore, venting should be planned around the end-of-fill areas.
Mold Steel
Glass-filled flame-retardant materials can increase mold wear.
For high-volume production, engineers may consider harder or more wear-resistant steels for:
- Cavity inserts
- Core inserts
- Gates
- Runners
- Sliding areas
This can increase initial tooling cost but reduce long-term maintenance.
Cooling
Stable mold temperature helps control:
- Shrinkage
- Warpage
- Cycle time
- Surface appearance
This is especially important for glass-filled PA, PBT, and PPS.
For projects that require both tooling and molded production, our injection molding production service covers mold trials, process adjustment, dimensional inspection, and production preparation.
Processing Challenges With Flame Retardant Plastics
Even when the material is correct, poor processing can still cause defects.
Material Drying
Many engineering flame retardant plastics are moisture-sensitive.
PC, PA, PBT, and similar materials normally require proper drying.
If moisture remains, possible defects include:
- Silver streaks
- Bubbles
- Weak parts
- Poor appearance
- Polymer degradation
Material drying should therefore follow the resin supplier’s recommended conditions.
For more details, see our guide to injection molding material drying.
Excessive Melt Temperature
Higher temperature does not always improve filling.
If the melt temperature becomes too high, flame-retardant additives or the polymer itself may degrade.
This can lead to:
- Black spots
- Gas
- Burn marks
- Odor
- Reduced mechanical performance
Therefore, molding should stay inside the material supplier’s recommended processing window.
Excessive Shear
Small gates and high injection speed can generate excessive shear heat.
As a result, the resin may degrade near the gate.
A larger gate or different gate position may sometimes produce better results than simply increasing injection pressure.
Do Not Select Flame Retardant Plastics by Price Alone
Material cost matters, especially in mass production.
However, choosing the cheapest V-0 resin may create higher costs later.
A cheaper grade may lead to:
- Higher reject rates
- More warpage
- Difficult filling
- Poor appearance
- Lower impact strength
- Longer molding cycles
- Mold modifications
Therefore, total production cost matters more than resin price alone.
Before choosing a material, compare both the material properties and the expected molding behavior.
Our broader guide to injection molding materials provides additional comparisons between common engineering plastics.
Information to Provide Before Tooling
Before requesting an injection mold quotation for flame-retardant parts, provide as much information as possible.
Ideally, the supplier should receive:
- 3D CAD data
- 2D drawings
- Exact material grade
- UL 94 requirement
- Minimum wall thickness
- Operating temperature
- Annual production volume
- Color requirements
- Surface finish
- Critical dimensions
- Electrical requirements
- Mechanical load requirements
The exact resin grade is especially important.
For example, simply writing “PC/ABS V-0” may not be enough.
Different PC/ABS grades have different:
- Shrinkage
- Flowability
- Heat resistance
- Impact strength
- Flame ratings
- Processing windows
Providing the material datasheet before mold design reduces uncertainty.
Fentor Mold can also review part geometry, material selection, gate location, mold structure, and manufacturing risks before steel cutting.
You can learn more about our complete custom injection mold and plastic parts manufacturing services.
Final Thoughts
Selecting flame retardant plastics for injection molding requires more than finding a resin marked V-0.
Engineers should also consider wall thickness, temperature, mechanical strength, electrical performance, appearance, processing conditions, and mold design.
For many electronic housings, flame-retardant ABS or PC/ABS may provide a practical balance of cost and performance.
For connectors and structural electrical parts, PA or PBT may be more suitable.
Meanwhile, PPS can provide better performance for demanding high-temperature environments.
Most importantly, select the exact resin grade before the mold design is finalized.
That allows the mold maker to optimize the gate, venting, cooling, shrinkage allowance, steel selection, and processing strategy around the real material instead of making assumptions.
