An injection mold project delayed beyond the expected schedule can quickly affect product launch, customer delivery, and production planning. But a delay does not always mean you should immediately change suppliers.
Mold manufacturing involves machining, fitting, mold trials, measurement, and modification. T1 may reveal dimensional problems, warpage, flash, poor venting, difficult ejection, or other unexpected issues.
The real concern begins when an injection mold project delayed repeatedly has no clear explanation, recovery plan, or reliable next trial date.
At that point, buyers need to decide whether to continue with the current supplier or move the project to another mold manufacturer.
Why Is Your Injection Mold Project Delayed?
Before considering a supplier change, separate a normal technical delay from a project management failure.
Technical problems happen during mold development.
For example, after T1 you may find:
- Part dimensions outside tolerance
- Flash or short shots
- Warpage
- Sink marks
- Poor venting
- Difficult ejection
- Slider or lifter interference
- Cooling imbalance
- Cosmetic defects
- Assembly problems
Finding these issues during a mold trial does not automatically mean the supplier is incapable.
The important question is what happens next.
A capable supplier should be able to explain the root cause, propose a correction, estimate the modification time, and show measurable progress.
An injection mold project delayed by one additional mold trial is usually still manageable. The bigger concern appears when several trial dates are missed and the supplier cannot clearly explain what still needs to be corrected.
If repeated mold trials continue without a clear technical direction, the problem may be deeper than a simple schedule delay. Our guide on reducing mold trial times explains why repeated trials often point to unresolved tooling, design, or process variables.
When a Delayed Injection Mold Project Does Not Require a New Supplier
Changing suppliers in the middle of mold construction creates additional risks.
If your current supplier is still communicating clearly and solving problems systematically, giving them more time may be faster than transferring the project.
The Problem Has Been Clearly Identified
Suppose T1 shows that one area of the part is 0.15 mm outside tolerance.
The supplier checks the steel dimensions, reviews molding shrinkage, determines where correction is required, and gives you a modification plan.
That is a controlled technical problem.
It may delay the schedule, but the project itself is still under control.
You Can See Real Progress
Ask for actual evidence rather than general statements such as:
“We are working on it.”
Useful evidence may include:
- Current mold photographs
- Machining photographs
- Updated project schedule
- Inspection reports
- T1 measurement reports
- Mold modification drawings
- New trial dates
- Sample comparison results
If each update shows that specific problems are being closed, changing suppliers may simply restart part of the engineering process.
In many cases, an injection mold project delayed by dimensional correction, warpage adjustment, or ejection problems can still be recovered without changing suppliers.
The Supplier Takes Responsibility
Problems are easier to solve when the supplier focuses on correction rather than excuses.
A responsible mold manufacturer should be able to explain:
- What happened
- Why it happened
- What will be changed
- Who is responsible for the modification
- When the next result will be available
This is more important than whether the original schedule slipped by several days.
Warning Signs When an Injection Mold Project Delayed Keeps Getting Worse
There is a major difference between a delayed mold and a project that has lost technical control.
Certain warning signs deserve much more attention.
Every Week Comes With a New Delivery Date
Monday:
“T1 will be Friday.”
Friday:
“We need another three days.”
Next Wednesday:
“There is another small issue. Next week should be okay.”
When this happens repeatedly, the problem is no longer simply the delay.
The supplier may not actually know the real condition of the project.
A recovery schedule should be based on remaining work, machining time, fitting time, modification scope, and the next trial plan—not on the date the customer wants to hear.
The Supplier Cannot Explain the Root Cause
A mold can be modified several times and still fail because the team is correcting symptoms instead of causes.
For example, a dimensional problem might come from:
- Incorrect steel dimensions
- Part shrinkage
- Mold temperature
- Cooling imbalance
- Packing conditions
- Part deformation after ejection
- Incorrect product data
Simply grinding or welding the mold after every trial is not a reliable correction method.
If the same problem repeatedly returns in different forms, you should begin questioning whether the supplier has enough engineering capability to finish the project.
Problems Are Increasing Instead of Decreasing
T1 normally reveals several problems.
By T2 and T3, the number and severity of those problems should generally decrease.
Be careful when every modification creates another issue.
For example:
T1: Flash
T2: Flash improved, but the part sticks
T3: Ejection improved, but dimensions move
T4: Dimensions improve, but the slider begins scratching
This can indicate uncontrolled modification.
Repeated welding, grinding, EDM, and manual fitting can eventually affect mold accuracy and mold life.
If the injection mold project delayed situation continues after several unsuccessful trials, the project should be reviewed more carefully before further steel modification.
Communication Becomes Slower as Problems Increase
Good communication matters most when a project is going badly.
If your supplier begins avoiding technical questions, delaying photographs, refusing to provide inspection data, or giving only vague answers, that is a serious warning sign.
When evaluating another injection mold manufacturer, engineering communication should be considered alongside price, equipment, and manufacturing capability.
What to Check When an Injection Mold Project Delayed Needs Recovery
Do not transfer a troubled mold blindly.
A new supplier needs to understand exactly what they are receiving.
Ideally, collect:
- Final product 3D files
- 2D drawings
- Mold 3D and 2D drawings
- Mold steel specifications
- Hot runner information
- Component list
- T1, T2, and T3 reports
- Dimensional reports
- Mold-flow reports if available
- Modification history
- Sample parts
- Current defect list
- Approved appearance requirements
Proper injection mold documentation becomes especially important when a mold has to be inspected, repaired, modified, or transferred to another factory.
Before moving the tooling, buyers should understand why the injection mold project delayed and whether the problem comes from one specific technical issue or from wider project management failure.
You should also determine exactly how much of the mold is finished.
There is a big difference between transferring:
A mold that is 60% machined
and
A completed mold that has already gone through four unsuccessful trials.
The second situation normally requires much more inspection before another supplier can provide a reliable recovery schedule.
Can Another Supplier Rescue an Injection Mold Project Delayed?
Sometimes yes.
But a new supplier should not promise that a transferred mold can definitely be repaired just from a few photographs.

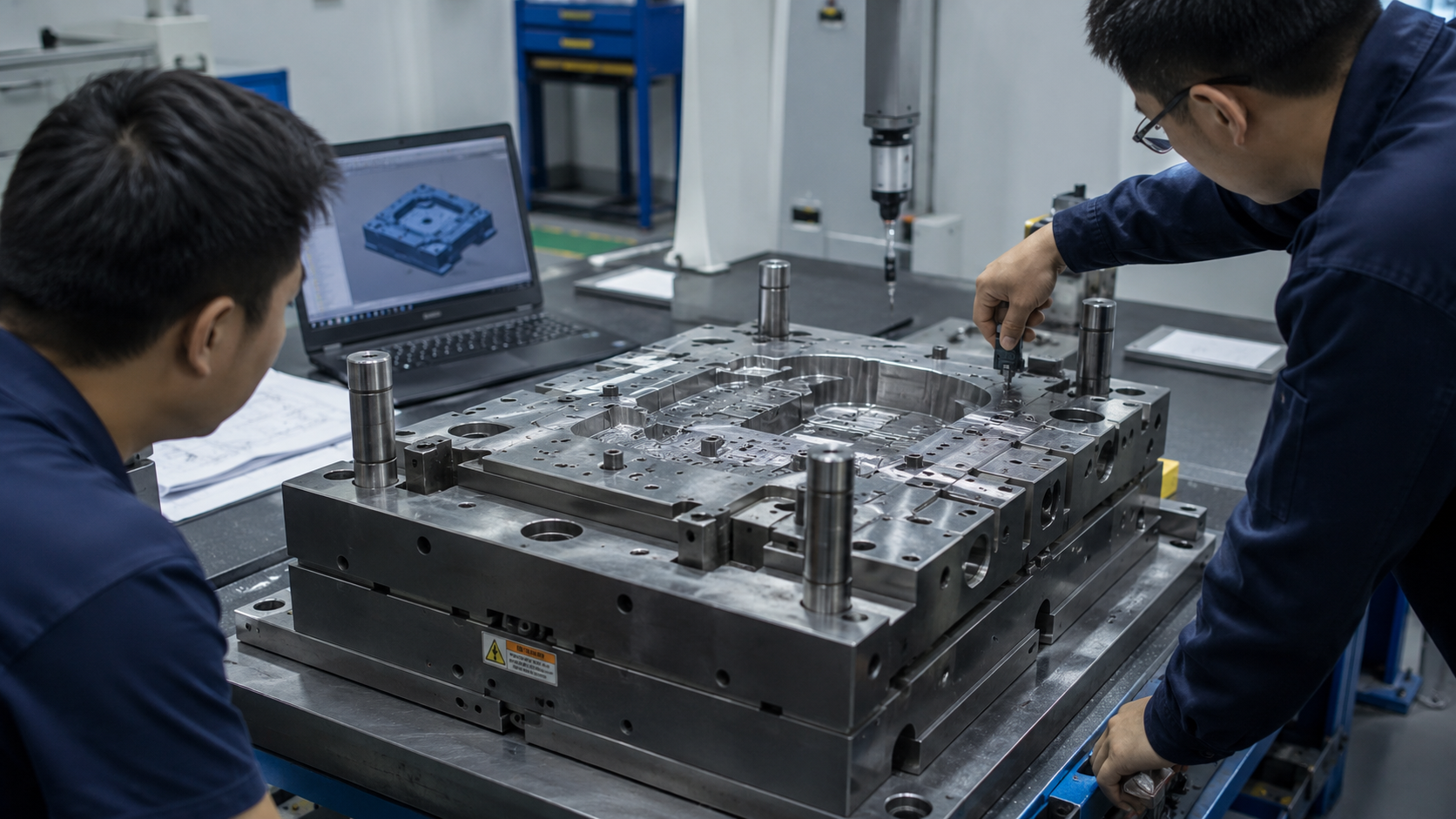

The safest approach is an engineering inspection.
At Fentormold, when we evaluate an existing mold, the first objective is to understand its real condition rather than immediately start cutting steel.
Typical checks may include:
- Core and cavity condition
- Parting-line contact
- Slider and lifter movement
- Shut-off areas
- Ejection system
- Cooling circuits
- Venting
- Gate and runner condition
- Mold positioning
- Wear or galling
- Welding history
- Critical steel dimensions
- Mold components
- Existing sample defects
For molds that still have recovery value, our injection mold manufacturing capabilities allow us to inspect the tooling and determine which areas can be modified, remade, or replaced.
However, not every mold should be repaired.
Sometimes rebuilding certain inserts—or even building a new mold—is safer than continuing to repair tooling that has already been heavily welded or modified.
Should You Move Only the Mold or Also Move Production?
This depends on the project.
If one factory repairs the mold but another factory runs production, communication can become more complicated.
One supplier modifies the tooling.
Another supplier trials it.
The mold is shipped again.
A different molding machine or processing condition produces a different result.
For some projects, it is easier to combine mold correction with trial and subsequent injection molding production.
This allows the same engineering team to follow the mold from modification through sampling and production validation.
It is especially useful when the defect is influenced by both tooling and molding conditions.
For example, warpage, short shots, flash, sink marks, and dimensional instability may not be caused by the mold alone.
Should You Change Suppliers When an Injection Mold Project Delayed Continues?
Changing suppliers becomes a reasonable option when several problems appear together.
For example:
- The project is seriously beyond the agreed schedule
- Delivery dates are repeatedly missed
- The same defects remain after multiple trials
- There is no clear root-cause analysis
- Mold modifications are becoming uncontrolled
- Inspection reports are incomplete or unavailable
- Communication becomes increasingly vague
- The supplier cannot provide a realistic recovery plan
- Your production launch or customer delivery is now at risk
One missed date is usually not enough.
But when technical uncertainty, poor communication, and repeated missed commitments happen at the same time, continuing with the same supplier may carry more risk than transferring the mold.
The decision should not be based on frustration alone.
It should be based on the actual technical condition of the mold and whether the current supplier still has a credible path to completion.
Ask for One Final Recovery Plan Before Making the Decision
Before moving the project, ask the existing supplier for a written recovery plan.
Keep it simple.
You need answers to these questions:
| Question | What You Need |
|---|---|
| What problems remain? | Specific defect list |
| What caused them? | Root-cause analysis |
| What modifications are required? | Clear technical actions |
| When will modifications finish? | Realistic completion date |
| When is the next trial? | Confirmed trial plan |
| What result is expected? | Acceptance target |
| What happens if the next trial fails? | Backup action |
The response often makes the decision much easier.
A supplier who still understands the project should be able to produce a credible plan.
A supplier who cannot explain how the project will recover may already have given you the answer.
How to Recover an Injection Mold Project Delayed by Technical Problems
Once you decide the existing project needs outside support, do not start by asking only:
“How quickly can you finish this mold?”
A better recovery process starts with information.
First, provide the new supplier with:
- Product drawings
- Mold drawings
- Current mold photographs
- Existing samples
- Trial reports
- Dimensional reports
- Known defects
- Modification history
Then allow the supplier to evaluate the tooling.
A proper recovery plan may involve:
- Correcting local steel dimensions
- Reworking shut-off areas
- Improving venting
- Repairing sliders or lifters
- Correcting ejection problems
- Reworking cooling
- Replacing damaged inserts
- Remaking critical mold components
- Adjusting gate or runner design
- Revalidating molding parameters
The goal should not be to perform the largest possible modification.
The goal is to identify the minimum controlled changes required to bring the mold back to a stable condition.
Do Not Wait Until the Situation Becomes Irrecoverable
Buyers sometimes stay with a failing project because significant money has already been invested.
That is understandable.
But money already spent should not be the only reason to continue.
Ask a different question:
From today forward, which option gives the project the highest probability of reaching stable production?
Sometimes the answer is giving the original supplier another modification cycle.
Sometimes it is transferring the existing mold.
Sometimes it is keeping part of the tooling and remaking damaged inserts.
And occasionally, starting a new mold is less risky than continuing to repair one that has already been heavily modified.
The decision should come from the actual tooling condition.
Final Decision When an Injection Mold Project Delayed Too Long
When an injection mold project delayed situation continues, changing suppliers should not be the first reaction—but it should not be ruled out either.
First determine whether the delay is a normal technical correction or evidence that the project has lost control.
If the supplier understands the problems, provides inspection data, communicates clearly, and has a realistic recovery plan, completing the mold with them may still be the fastest path.
But if delivery dates repeatedly move, the same defects remain through multiple trials, modifications become uncontrolled, and nobody can explain exactly how the mold will reach approval, it is reasonable to have another mold manufacturer evaluate the project.
If you already have a delayed or problematic mold project, you can send Fentormold the current mold drawings, product files, sample reports, mold photographs, and existing problem list. We can review the available information first and help determine whether the mold is worth modifying, transferring, or rebuilding.
