Lifter vs slider is an important consideration when a plastic part has an undercut that cannot be released directly from a standard two-plate injection mold. These two mechanisms help form and release complex features, but they work differently and are suited to different part geometries..
Although both mechanisms solve demolding problems, they work in different ways and are suited to different part geometries. In general, a lifter is commonly used for internal undercuts and moves with the ejection system, while a slider is typically used for side or external undercuts and retracts laterally during mold opening.
Choosing between a lifter and slider affects more than mold construction. The mechanism can influence tooling cost, mold size, cycle time, maintenance, and even the product design itself.
This guide explains the key differences between a lifter and slider in an injection mold, including their movement, applications, tooling cost, design considerations, and how to choose the right solution during DFM.
What Is the Difference Between a Lifter and Slider?
| Feature | Lifter | Slider |
|---|---|---|
| Primary Purpose | Release internal undercuts | Release side or external undercuts |
| Typical Movement | Upward with angled lateral movement | Lateral or angled movement |
| Driving System | Ejector system | Angular pin, cam pin, or hydraulic system |
| Typical Location | Inside the molded part | Side or exterior of the molded part |
| Mold Space | Compact; uses internal ejector space | Requires side clearance for travel |
| Main Design Concern | Ejection stroke and lifter angle | Slider travel, locking, and clearance |
| Relative Tooling Cost | Generally lower / simpler assembly | Generally higher / more components |
The exact mechanism depends on the part geometry, undercut depth, available mold space, production requirements, and required tooling life. Therefore, this table should be used as a general guideline rather than an absolute rule.
What Is an Injection Mold Lifter?
A lifter is a mold component used to release an undercut that cannot be removed through a straight ejection movement.
A typical lifter is installed as part of the ejector system. When the ejector plate moves forward, the lifter moves upward while also shifting laterally because of its angled geometry. This combined movement allows the lifter to disengage from an internal undercut while pushing the molded part away from the mold core.
This is why an injection mold lifter is particularly useful for internal features such as:
- Internal snap hooks
- Internal clips
- Small undercuts
- Internal ribs with locking features
- Hooks and latches
- Certain internal grooves
For example, consider a plastic enclosure with an internal snap-fit feature. A conventional ejector pin cannot release the part if the snap feature locks against the mold core. A properly designed lifter can move the feature away from the core during ejection, allowing the part to come off without damaging the snap.
The movement of a lifter is therefore not simply vertical. Its angled motion provides the necessary clearance from the undercut.
Lifter Components and Design Considerations
A typical lifter system may include the lifter head, lifter rod, ejector plate, and guiding components. The exact structure depends on the mold design.
The mold designer needs to consider:
- Lifter angle
- Ejection stroke
- Required lateral clearance
- Lifter strength
- Guide and support conditions
- Interference with the core and cavity
- Distance from adjacent ejector pins
The lifter must move far enough to clear the undercut without damaging the molded part.

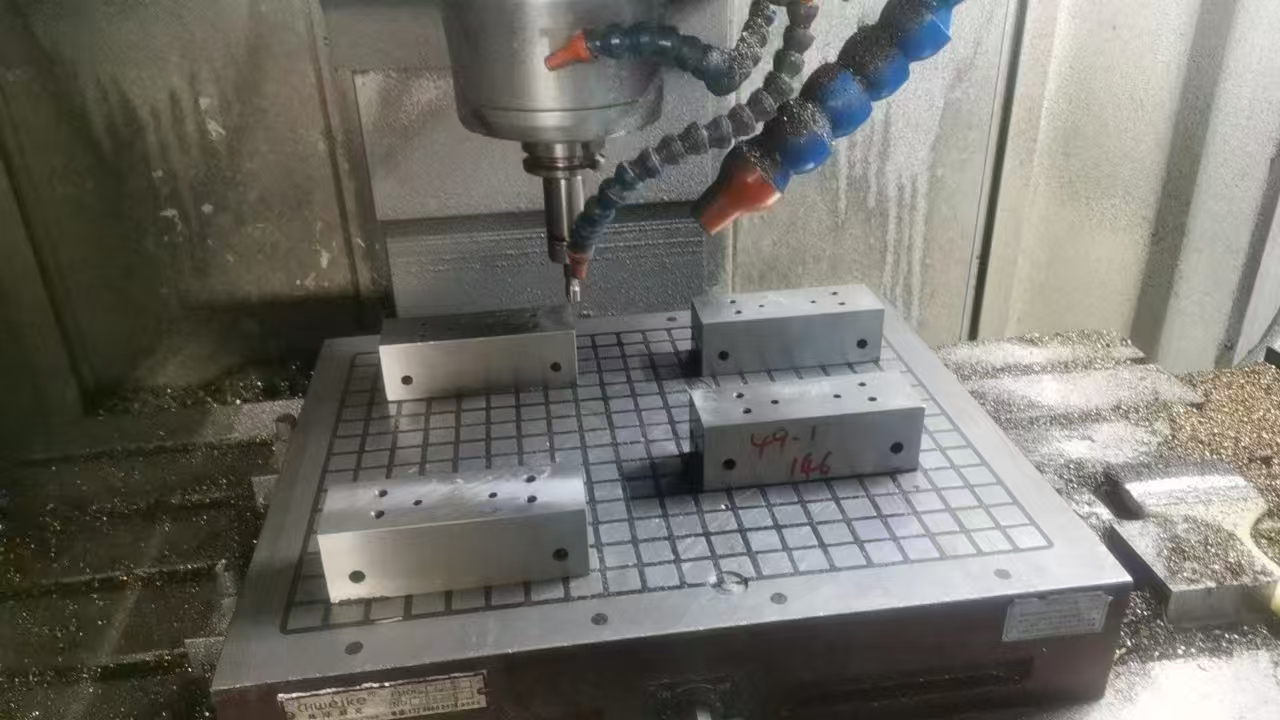

What Is an Injection Mold Slider?
A slider, also called a side-action or slide, is a movable mold component used when a feature prevents the part from being released in the normal mold-opening direction.
Unlike a lifter, a conventional slider is generally positioned on the side of the injection mold and moves laterally relative to the mold-opening direction.
An injection mold slider can form features such as:
- Side holes
- Side slots
- External undercuts
- Side openings
- External hooks
- Side grooves
- Complex side geometries
A common slider uses an angular pin, also called a horn pin or cam pin, to convert mold-opening movement into slider retraction. Other designs may use hydraulic cylinders or specialized mechanisms when the required movement or timing cannot be achieved with a conventional angular pin.
For example, if a plastic housing has a hole through its side wall, a standard core and cavity cannot form the hole if its axis is perpendicular to the mold-opening direction. A side slider can move into position during mold closing, form the hole during injection, and retract before the molded part is ejected.
Slider Components and Design Considerations
A typical slider may include:
- Slider body
- Angular pin or horn pin
- Wear plate
- Locking block
- Gibs or guide surfaces
- Retainer components
- Cooling channels where required
The slider must remain securely locked during injection because injection pressure can create significant forces on the side-action mechanism.
The designer must also provide enough slider travel to completely clear the molded feature before ejection.
What Is the Difference Between a Lifter and a Slider?
The most important difference between a lifter vs slider in injection mold design is where the undercut is located and how the mechanism releases it.
A lifter is generally integrated with the ejection system and is well suited to internal undercuts. A slider is generally a side-action mechanism that retracts from the molded part before ejection.
In simple terms:
Internal undercut → consider a lifter.
Side or external undercut → consider a slider.
However, mold design is not always this simple. The final choice depends on the undercut direction, available mold space, feature depth, ejection stroke, production requirements, tolerances, and the possibility of changing the product design.
Lifter vs Slider: Movement Direction
Movement direction is another important difference between these two injection mold mechanisms.
Lifter Movement
A lifter normally follows the movement of the ejection system.
Because the lifter is installed at an angle, its upward movement produces a lateral component that helps clear the undercut.
This means the lifter performs two functions at the same time:
- It helps eject the molded part.
- It moves away from the undercut.
The required horizontal clearance depends on the lifter angle and ejector stroke. Therefore, the mold designer must make sure that the lifter provides enough movement to clear the undercut without creating interference.
Slider Movement
A slider normally moves independently from the main ejection movement.
In a conventional angular-pin slider, opening the mold causes the angular pin to push or pull the slider along its designed path. Once the slider has moved far enough to clear the molded feature, the part can be ejected.
The required slider travel must be greater than the amount of clearance needed to release the undercut.
This is one reason slider design requires careful attention to travel distance, locking, guide surfaces, wear plates, and interference.
When Should You Use a Lifter?
A lifter is often a good choice when the problematic feature is located inside the molded part and the undercut is relatively small.
For example, an injection mold lifter may be appropriate for:
Internal Snap-Fit Features
Many plastic housings use internal snap hooks to hold two components together. If the hook creates an undercut against the mold core, a lifter can release it during ejection.
Internal Clips and Latches
Electrical housings, consumer products, and automotive components may contain internal clips or retaining structures.
A lifter can form these features while allowing the molded part to be ejected without breaking the clip.
Small Internal Undercuts
For relatively small internal undercuts, a lifter may provide a more compact solution than a complete side-action slider.
However, the undercut depth and required lifter travel must be checked carefully during DFM (Design for Manufacturability).
When Should You Use a Slider?
A slider is generally preferred when the feature is located on the side of the product and cannot be released in the normal mold-opening direction.
Typical applications include:
Side Holes
Side holes are one of the most common reasons for adding a slider to an injection mold.
The slider acts as a side core that forms the hole during injection and retracts before ejection.
Side Slots and Openings
A slider can create slots or openings on the side wall of an enclosure, connector, housing, or automotive component.
Large External Undercuts
When the undercut is too large or difficult to release with a lifter, a side-action slider may provide a more robust solution.
Complex Side Features
Sliders can also be designed with multiple forming surfaces when a product contains several features that need to be released from the same direction.
Lifter vs Slider: Which Is More Expensive?
There is no universal price difference because tooling cost depends heavily on the size, complexity, precision, and expected production volume.
However, a conventional slider generally requires more supporting components than a basic lifter. These may include:
- Slider body
- Angular pin
- Wear plate
- Locking block
- Guide surfaces or gibs
- Retainer components
- Cooling channels
- Hydraulic components in some designs
As a result, a slider can increase mold machining, assembly, and maintenance requirements.
A lifter can be more compact, particularly when it is integrated into the ejector system. However, lifters still require accurate angle calculation, proper guidance, and sufficient clearance.
For a specific project, the best solution should therefore be evaluated based on total tooling cost, rather than assuming that one mechanism is always cheaper.
How Lifters and Sliders Affect Injection Mold Design
The choice between a lifter and slider should be made during injection mold design or DFM rather than after the mold structure has already been finalized.
Several factors should be reviewed.
1. Undercut Location
First, identify where the undercut is located.
An internal undercut may be suitable for a lifter, while an external side undercut may require a slider.
The parting line should also be evaluated during the mold design stage because its position can sometimes eliminate the need for an additional side-action mechanism.
2. Undercut Depth
The depth of the undercut determines how much movement is required to release the feature.
If the required clearance exceeds the practical movement available from a lifter, another mechanism or a product redesign may be necessary.
3. Mold Space
A slider needs sufficient space for its body and retraction stroke.
This can become a problem when several side-actions are required or when the mold base is relatively small.
Lifters can sometimes provide a more compact solution because they are installed within the ejector system.
4. Ejection Stroke
Lifter design is directly related to ejector stroke.
The mold designer needs to ensure that the lifter has enough movement to clear the undercut before the part is fully ejected.
The position of the ejector pins should also be considered so that the ejection force is distributed properly and does not deform the molded part.
5. Core and Cavity Geometry
The lifter or slider should be evaluated together with the core and cavity geometry.
The core and cavity define the main part-forming surfaces, while the moving mechanism must provide sufficient clearance without interfering with shut-off surfaces, parting lines, or adjacent mold components.
6. Product Tolerances
If the feature has tight dimensional requirements, the mechanism must be designed to maintain reliable alignment throughout production.
For precision components, the slider or lifter should be evaluated together with the core and cavity, parting line, shut-off surfaces, draft angles, and cooling arrangement.
Can You Avoid a Lifter or Slider?
Sometimes the best mold mechanism is no mechanism at all.
Before adding a lifter or slider, the product designer and mold engineer should determine whether the undercut can be removed or modified through DFM.
Possible solutions include:
- Increasing the draft angle
- Changing the direction of the feature
- Moving the parting line
- Reducing the undercut depth
- Changing an internal snap feature
- Splitting a complex feature into multiple components
- Redesigning the assembly method
This can reduce tooling cost and mold complexity.
For example, if a side feature can be redesigned so that it aligns with the mold-opening direction, a side slider may no longer be necessary.
This is often worth discussing before the mold quotation is finalized because a small product design change can sometimes eliminate a significant tooling mechanism.
Can a Mold Use Both Lifters and Sliders?
Yes.
A complex plastic component can require both mechanisms when it has undercuts in different directions.
For example, an automotive or electronic housing may have:
- Internal clips requiring lifters
- Side holes requiring sliders
- External hooks requiring additional side actions
In this situation, the mold designer can combine different mechanisms as long as their movements do not interfere with each other.
However, adding more moving mechanisms increases the complexity of mold design, machining, assembly, maintenance, and mold trials.
Therefore, the objective should not be to use as many mechanisms as possible. The objective is to find the simplest reliable mold structure that can produce the required part geometry.
Lifter or Slider: Which One Should You Choose?
The decision should be based on the product geometry rather than simply choosing the cheaper mechanism.
Choose a Lifter When:
- The undercut is inside the product.
- The undercut is relatively small.
- The required movement can be achieved through the ejector stroke.
- There is limited side space in the mold.
- The feature can be released through angled ejection.
Choose a Slider When:
- The feature is located on the side of the product.
- A side hole or opening must be formed.
- The undercut requires significant lateral travel.
- The feature cannot be released with a standard ejector or lifter.
- A side-action mechanism provides a more reliable solution.
The final decision should be confirmed through a detailed DFM review and injection mold design.
Conclusion
Lifters and sliders solve similar problems in injection molds, but they are designed for different types of undercuts.
Lifters are commonly used for internal undercuts and work together with the ejector system, while sliders are typically used for side or external undercuts and retract laterally before ejection.
The right choice depends on the product geometry, undercut depth, required movement, mold space, tolerances, production requirements, and tooling budget.
For a new injection mold project, it is also worth checking whether a product design change can eliminate the undercut altogether. Removing an unnecessary lifter or slider can simplify the mold, reduce tooling cost, and improve long-term reliability.
Fentormold can evaluate your part geometry and recommend a practical tooling solution based on the required undercuts, production requirements, and mold design constraints. Our custom injection molding services can support projects from mold design and tooling through plastic injection molding production.
